Descriere

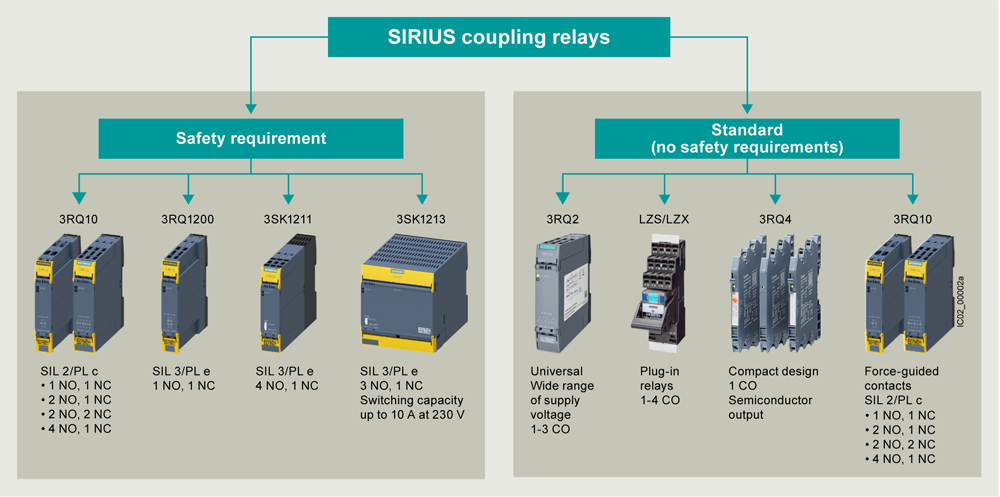

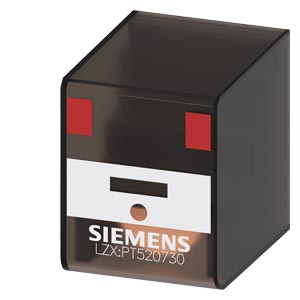

Plug-in relay 4 changeover contacts, without test bracket 230 V AC, for LZS sockets Plug-in relay SIRIUS LZX as a single module in combination with LZS plug-in base for galvanic isolation, contact multiplication, for switching small loads and as a means of switching potential. The plug-in relays allow flexibility in the design of the device as a whole and can be replaced easily. Single modules are available in the designs RT, PT and MT, as well as in various coil voltages. SIRIUS relays - one range for every application.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Nominal current | - |
| Rated control supply voltage DC | - |
| Voltage type for actuating | AC |
| Voltage type (operating voltage) | AC |
| Operating voltage AC 60 Hz | - |
| Operating voltage AC 50 Hz | - |
| Operating voltage DC | - |
| Max. starting current | - |
| Measurements | |
| Depth | 35 |
| Height | 28 |
| Width | 22.5 |
| Approval/certification | |
| Relay technology category according to IEC 61810-7 | RT II |
| Connection | |

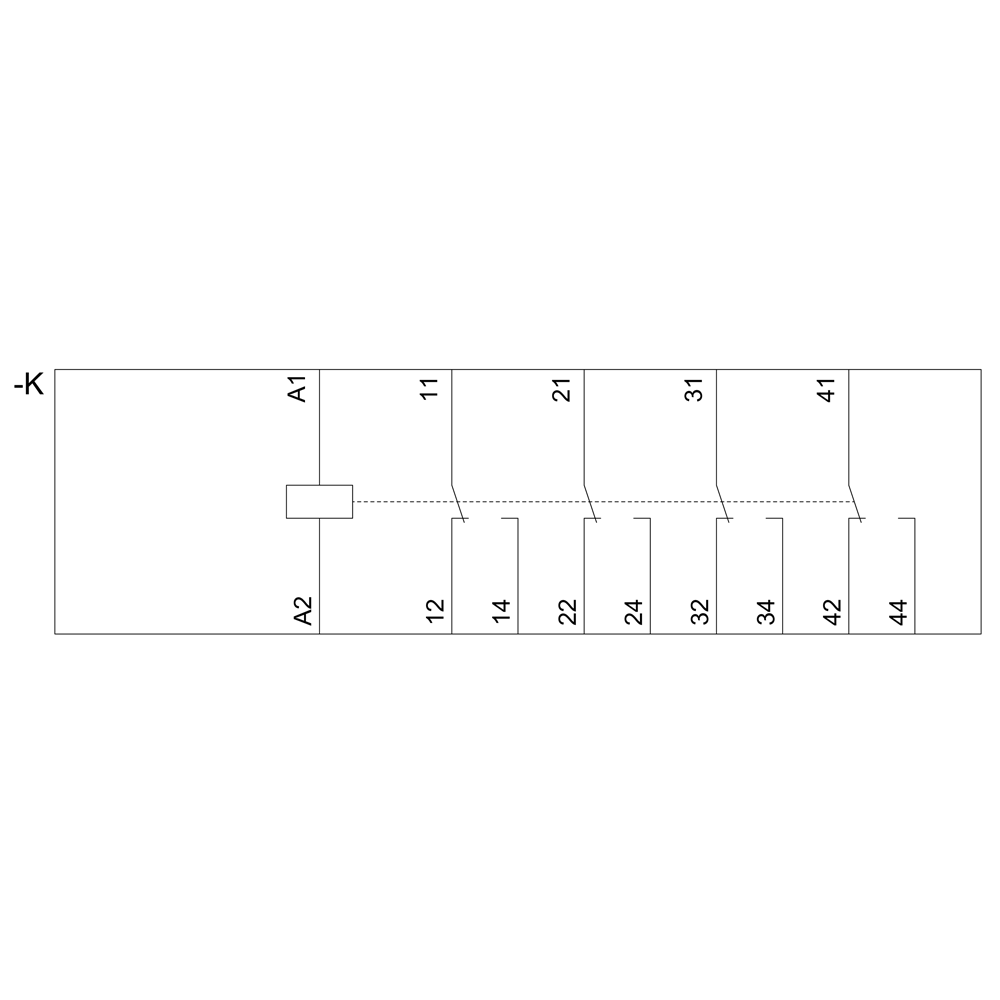

| Number of contacts as change-over contact | 4 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | - |
| Model/type | |
| With detachable clamps | No |
| With LED indication | - |
| Type of switch contact | Other |
| With forced-guided contacts | No |
| Material | |
| Material contact | Silver nickel (AgNi) |
| Material of contact insert | - |
| Material of contact surface | - |
| Protection | |
| Degree of protection (IP) | - |
| Other | |
| Drive, switching attitude | Mono stable |
| Drive, polarization | Polarized |
| Mounting/installation | |
| Complete with socket | No |
| Package 1 | |
| weight | 0,031 |
| length | 0,04 |
| width | 0,03 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209568617 |
| Dimensions of product | |
| Weight | 0,031 |
