POSITION SWITCH METAL ENCLOSURE 40 MM ACCORDING TO EN 50041 DEVICE CONNECTION 1X (M20 X 1.5) 1 NO/1

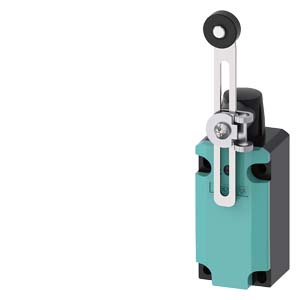

Position switch Metal enclosure 40 mm

The 3SE5 position switches are designed for position sensing of machine parts and position monitoring of protection equipment.

Technical details:

• Metal enclosure 40 mm according to EN 50041
• Device connection 1x (M20 x 1.5)

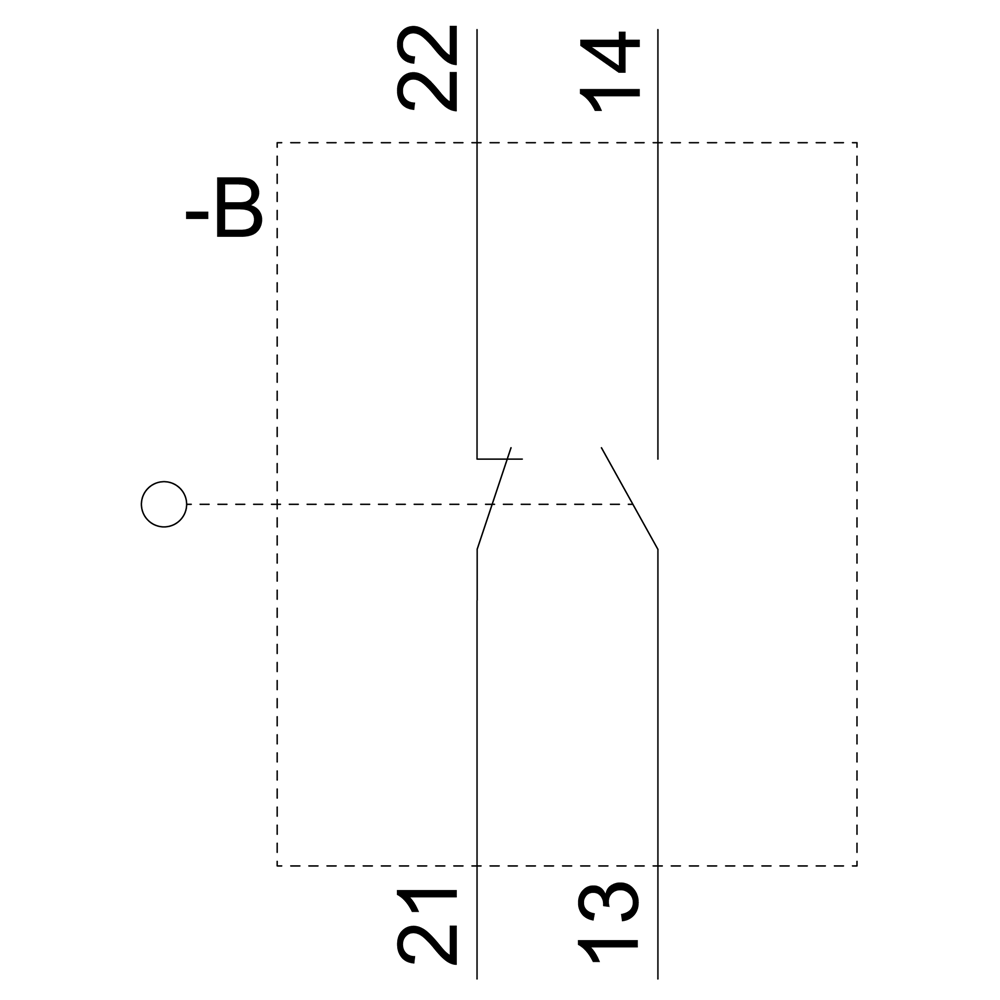

• 1 NO/1 NC slow-action contacts
• Rotary actuator right/left adjustable with adjustable-length Metal lever 100 mm long and plastic roller 19 mm
• Modular design allows for a host of variants with a small number of bearing types
• Wide variety of plug-in connectors and rollers
• LEDs indicate the current state of the device
• Quick-connect technology
• Operating points and mounting in accordance with EN 50047 and EN 50041
• Worldwide approval (IEC, UL)
• Highest safety requirements specified by PL e or SIL 3 can be met
• Integrated ASIsafe electronics requires a low current input
• Various enclosure sizes, with different contacts, available in plastic or metal or compact design
• Some versions optionally available with LED status display and M12 plug
• 3SF1 series with direct connection to the AS-Interface bus system
• Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available

Customer benefits:

• Time required for connection can be considerably reduced thanks to quick-connect technology
• Meets almost all everyday requirements in industry
• Completes the portfolio with direct AS-Interface bus system connection
• Safety is a key focus of the SIRIUS business
