POWER CONTACTOR, AC-3 115 A, 55 KW / 400 V AC (50-60 HZ) / DC OPERATION 220-240 V UC AUXILIARY CONTA

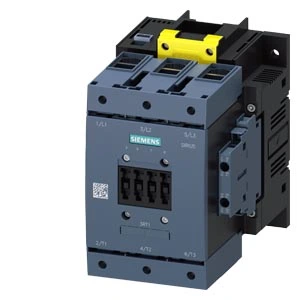

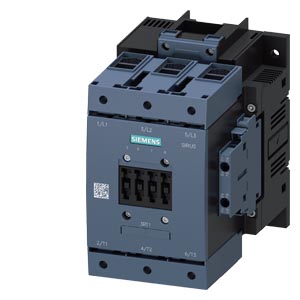

Power Contactor

The power contactor SIRIUS 3RT1 is designed for switching motors with high contact reliability and a compact design.

Technical details:

• AC-3e/AC-3 115 A
• 55 kW / 400 V
• AC (50-60 Hz) / DC Uc: 220-240 V
• 3-pole

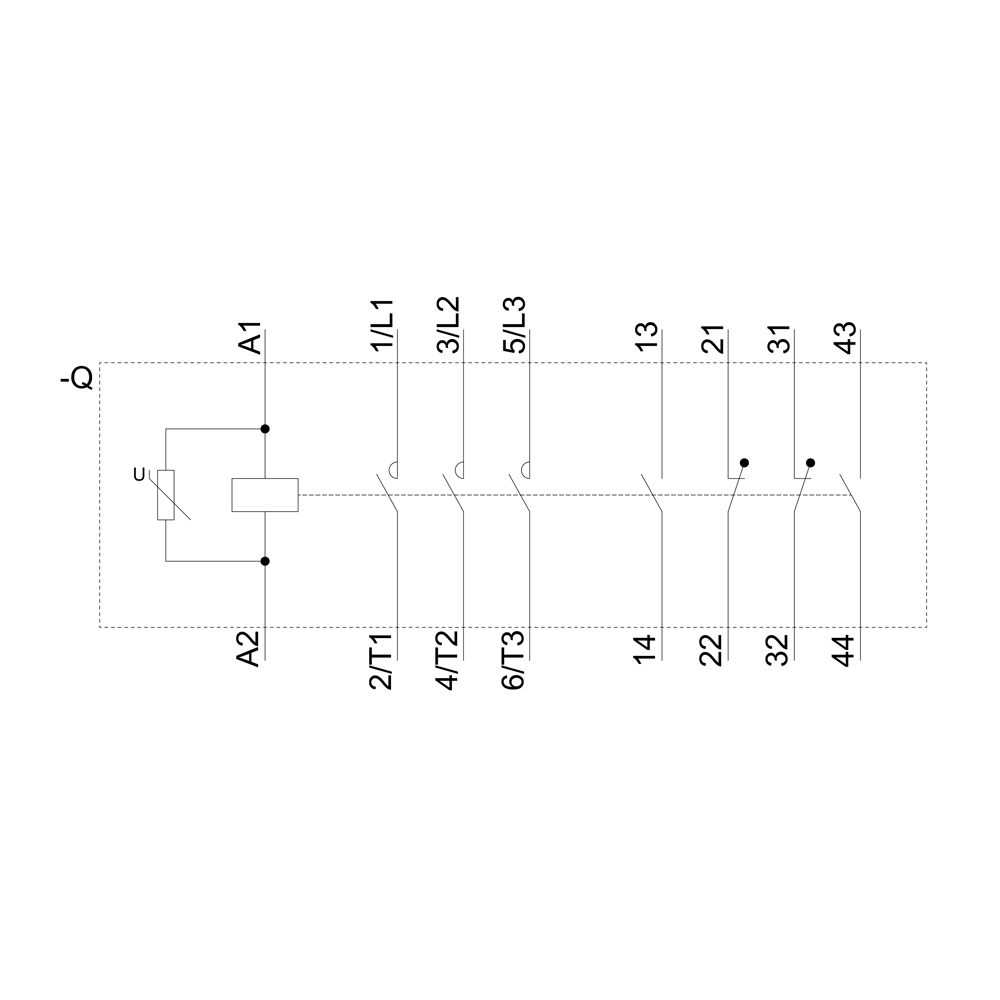

• Auxiliary contacts 2 NO + 2 NC
• Drive: conventional
• Main circuit: box terminal
• Control and auxiliary circuit: screw terminal

Customer benefits:

• Part of the modular SIRIUS system with optimally coordinated products.
• Convincing performance from a compact design with high contact reliability.
• Can be combined with a variety of other components in the load feeder.
• Best connection to the automation level for every application (direct or via PLC input).
• Pre-installed auxiliary switches reduce the complexity of design.
• Climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
• IE3/IE4-ready and available in various sizes and performance ranges.
• Fast, maintenance-free, and vibration-proof connection options available.
• Wide range of accessories to reduce wiring outlay, including wiring kits, auxiliary switches, and terminal covers.
• Simple, efficient, and always up to date with the SIRIUS modular system.
