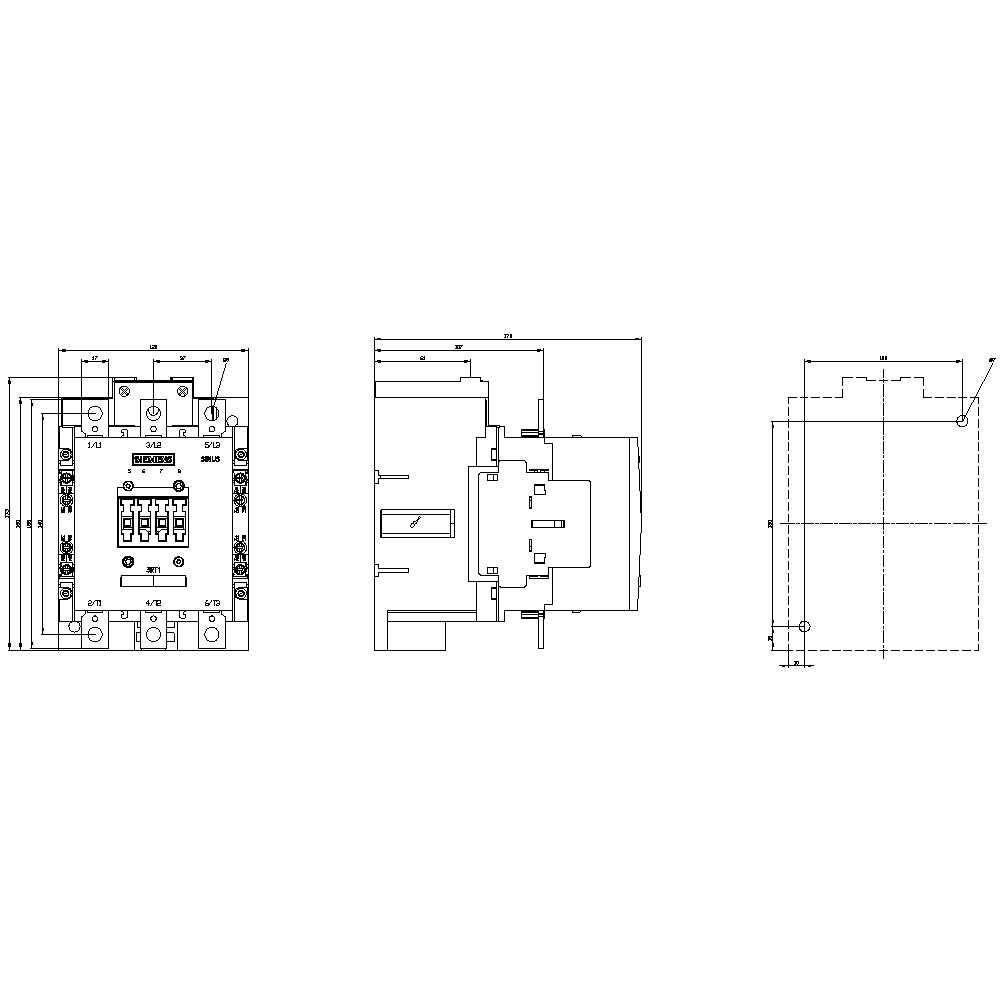

POWER CONTACTOR, AC-3 115 A, 55 KW / 400 V AC (50-60 HZ) / DC OPERATION 220-240 V UC AUXILIARY CONTA

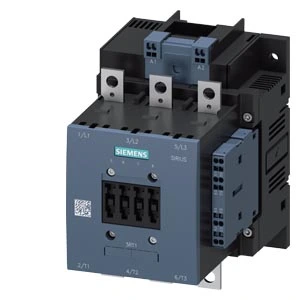

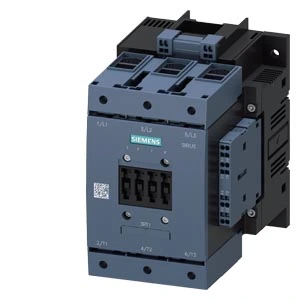

Power Contactor

The power contactor SIRIUS 3RT1 is designed for switching motors with high contact reliability and modularity.

Technical details:

• AC-3e/AC-3 115 A
• 55 kW / 400 V
• AC (50-60 Hz) / DC Uc: 220-240 V

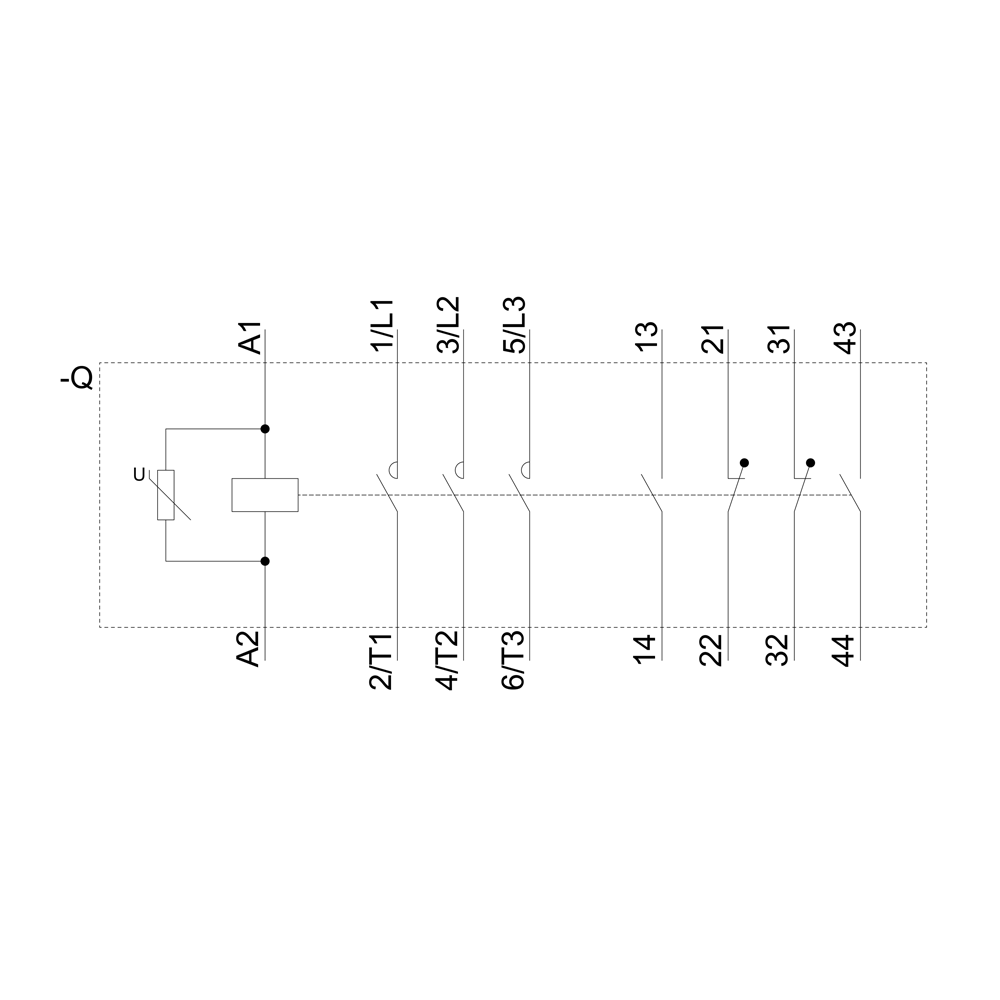

• 3-pole

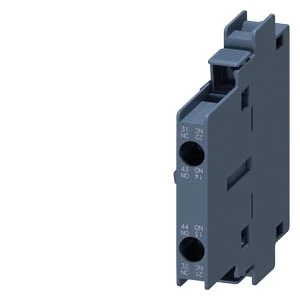

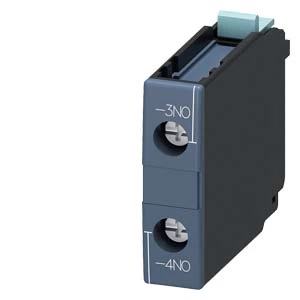

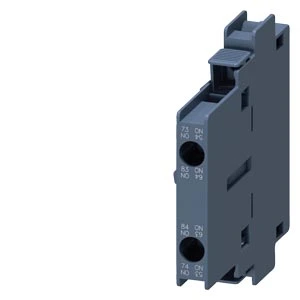

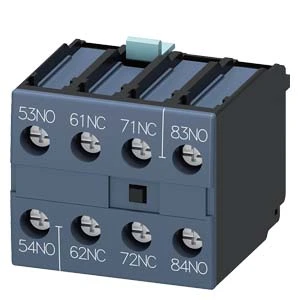

• Auxiliary contacts 2 NO + 2 NC
• Drive: conventional
• Main circuit: busbar
• Control and auxiliary circuit: screw terminal

Customer benefits:

• Compact design with high contact reliability.
• Can be combined with a variety of other components in the load feeder.
• Best connection to the automation level for every application (direct or via PLC input).
• Pre-installed auxiliary switches reduce the complexity of your design.
• Climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA), and IE3/IE4-ready.

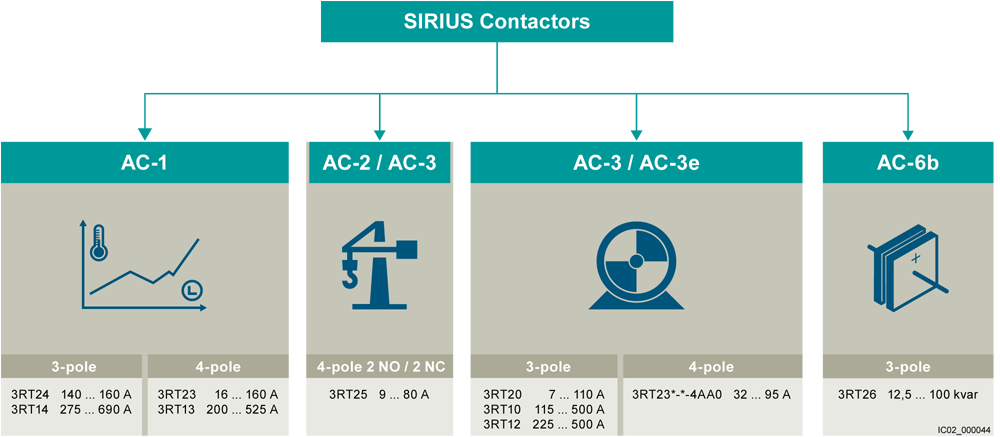

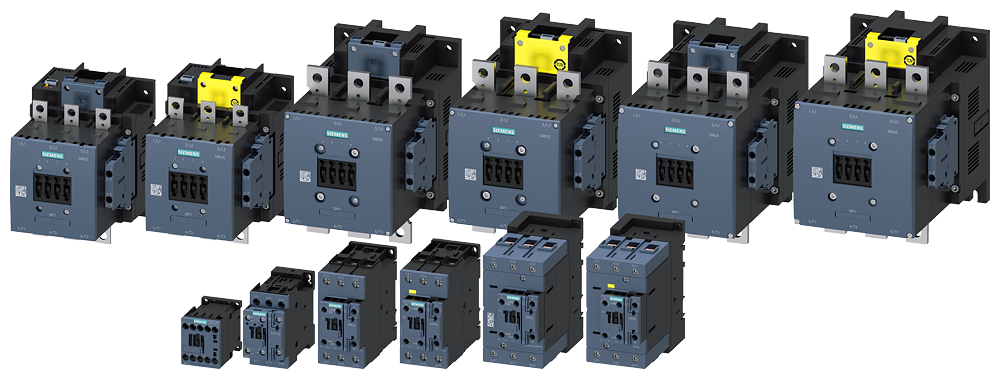

• Available in various sizes and a wide performance range.
• Operable with AC or DC, with some versions having a wide voltage range and PLC control input.
• Fast, maintenance-free, and vibration-proof connection options available.
• Wide range of accessories, such as wiring kits that considerably reduce wiring outlay.
