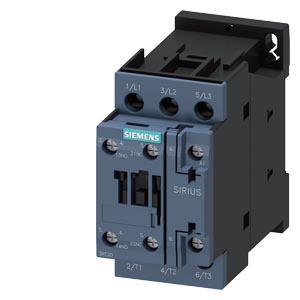

POWER CONTACTOR, AC-3 12 A, 5.5 KW / 400 V 1 NO + 1 NC, 230 V AC 50 / 60 HZ, 3-POLE SIZE S0, SCREW T
Cod produs: 3RT2024-1AL20
Alte coduri:
upc: 662643913088
Descriere
Power contactor SIRIUS 3RT2
Power contactor SIRIUS 3RT2 for switching motors with a compact design and high contact reliability.
Technical details:
- Type: power contactor

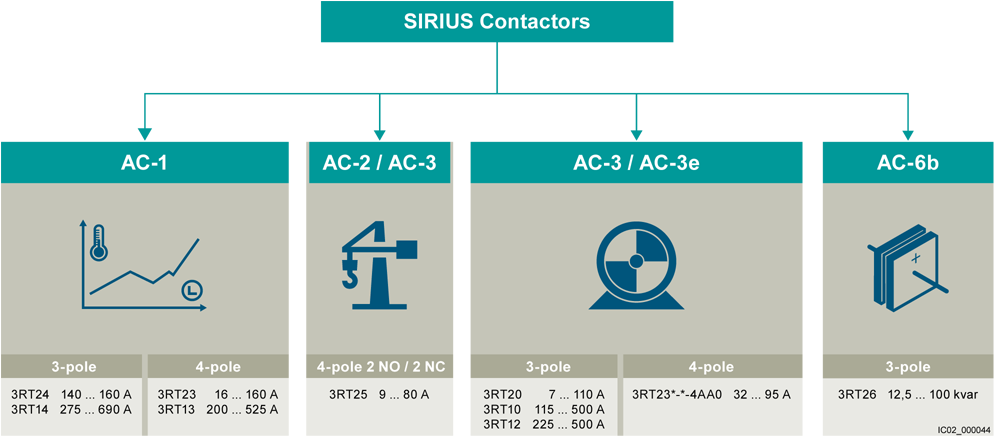

- Categories: AC-3e/AC-3
- Current: 12 A
- Power: 5.5 kW / 400 V
- Poles: 3-pole
- Voltage: 230 V AC
- Frequency: 50/60 Hz

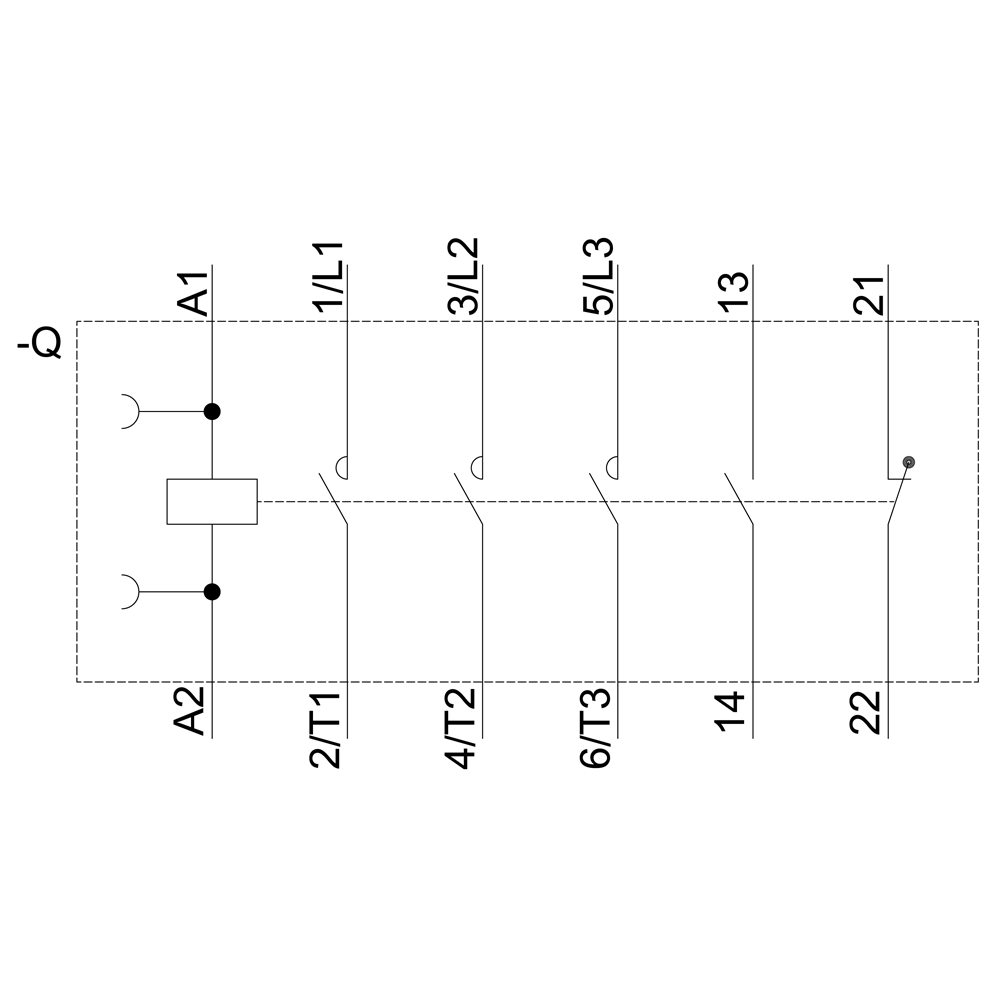

- Auxiliary contacts: 1 NO + 1 NC
- Connection: screw terminal
- Size: S0
Customer benefits:
- Part of the modular SIRIUS system with optimally coordinated products.
- Can be combined with a variety of other components in the load feeder.
- Factory tested device combinations.
- Best connection to the automation level for every application (parallel, via ASi or IO-Link).
- Integrated auxiliary switches reduce the complexity of your design.
- Front-panel terminals simplify the wiring.
- Climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
- IE3/IE4-ready.
- Available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
- Comprehensive range of standardized accessories for all sizes.
- Available link modules, function modules, and SIRIUS 3RV29 infeed system considerably reduce wiring expense.
- Simple, efficient, and always up to date - SIRIUS modular system.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii

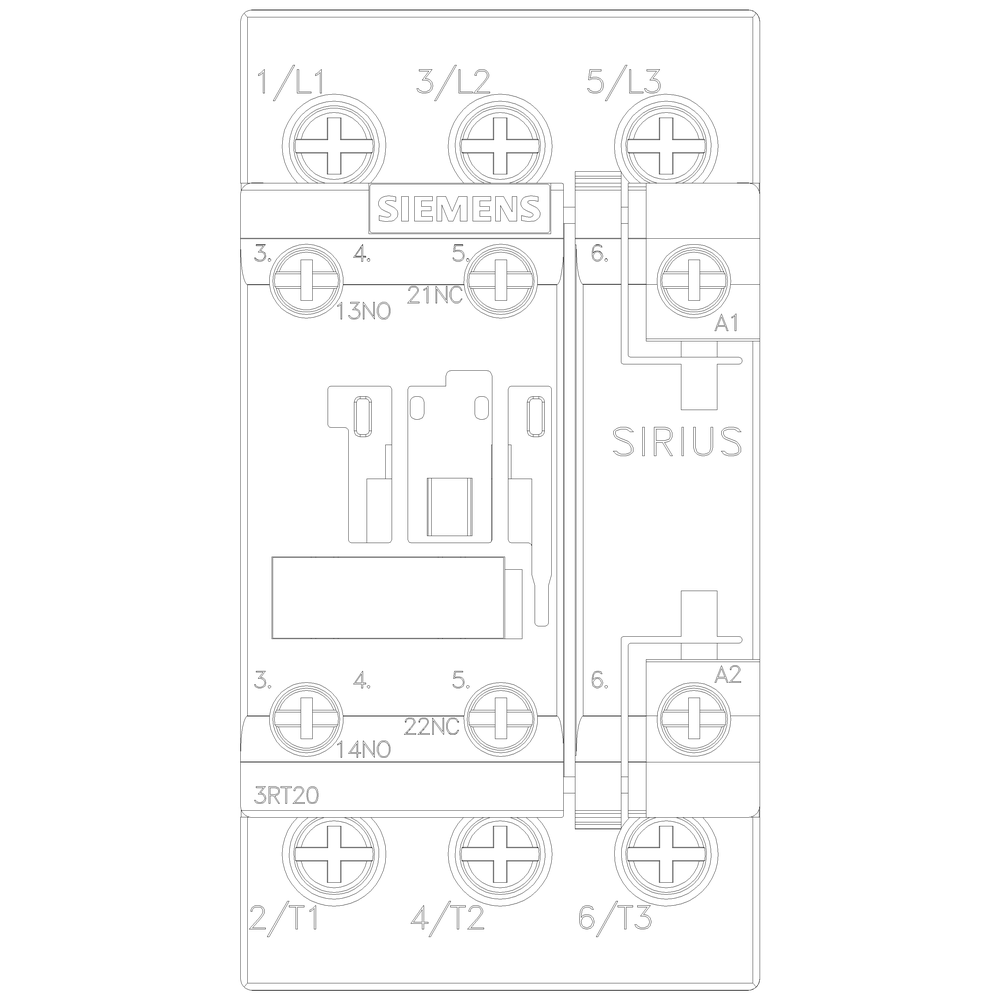

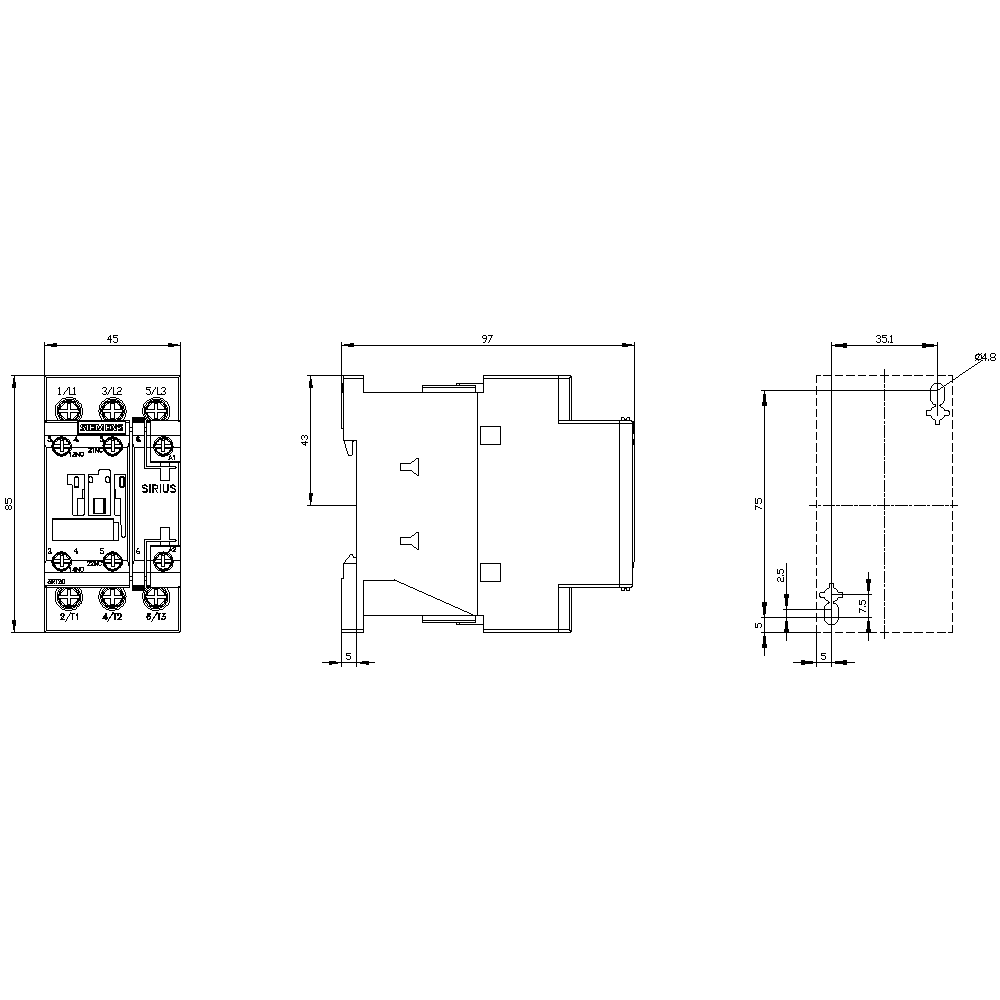

| Measurements | |
| Depth | 97 |
| Height | 85 |
| Width | 45 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 |
| Rated control supply voltage AC 60 Hz | 230 |
| Rated operation power at AC-4, 400 V | - |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | 12.5 |
| Rated operation power NEMA | 5.8839904 |
| Rated operation current Ie at AC-3, 400 V | 12 |
| Rated operation current Ie at AC-1, 400 V | 40 |
| Operating voltage AC 60 Hz | 690 |
| Rated control supply voltage DC | - |
| Operating voltage AC 50 Hz | 690 |
| Rated operation power at AC-3, 400 V | 5.5 |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally open contacts as main contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Options | |
| Suitable for distribution board | Yes |
| Package 1 | |
| weight | 0,404 |
| length | 0,092 |
| width | 0,054 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209831940 |
| Dimensions of product | |
| Weight | 0,404 |
Accesorii

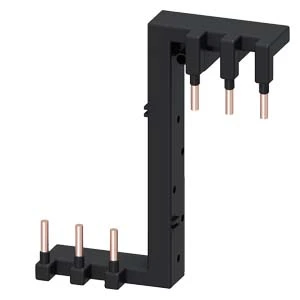

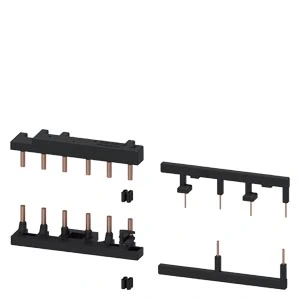

WIRING KIT FOR SCREW TERMINAL ELECTRICAL AND MECHANICAL INCLUDING MECHANICAL INTERLOCKING FOR REVERS
Cod: 3RA2923-2AA1
Siemens

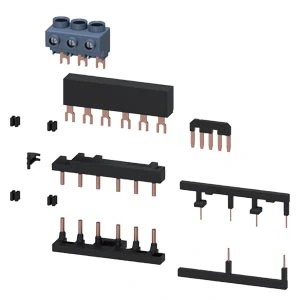

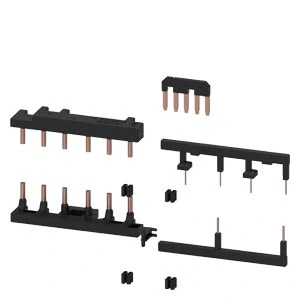

WIRING KIT FOR SCREW TERMINAL ELECTRICAL AND MECHANICAL INCLUDING MECHANICAL INTERLOCKING FOR YD STA
Cod: 3RA2923-2BB1
Siemens
WIRING KIT FOR SCREW TERMINAL ELECTRICAL AND MECHANICAL INCLUDING MECHANICAL INTERLOCKING FOR YD STA
Cod: 3RA2924-2BB1
Siemens

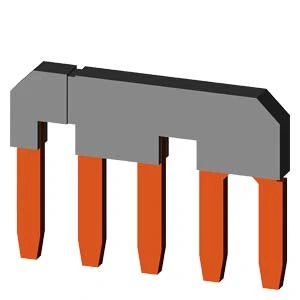

LINK FOR PARALLELING WITHOUT CONNECTION TERMINAL, 3-POLE FOR 3RT2.2 WITH SCREW TERMINAL
Cod: 3RT1926-4BA31
Siemens
LABELING PLATES 20X7 MM TI - GRAY BOX CONTAINS 17 MATS ON MATS 20 LABELS PER MAT
Cod: 3RT2900-1SB20
Siemens
AUXILIARY SWITCH ON THE FRONT, 1 NO + 1 NC CURRENT PATH 1 NC, 1 NO FOR 3RH AND 3RT SCREW TERMINAL .1
Cod: 3RH2911-1HA11
Siemens
AUXILIARY SWITCH ON THE FRONT, 2 NO + 2 NC CURRENT PATH 1 NC, 1 NC, 1 NO, 1 NO FOR 3RH AND 3RT SCREW
Cod: 3RH2911-1HA22
Siemens
AUXILIARY SWITCH ON THE FRONT, 3 NO + 1 NC CURRENT PATH 1 NC, 1 NO, 1 NO, 1 NO FOR 3RH AND 3RT SCREW
Cod: 3RH2911-1HA31
Siemens
ELECTRON. CONTR. AUXILIARY SWITCH 1 NO+1 NC, CURRENT PATH 1 NO,--,--, 1 NC FRONT-SIDE FOR 3RH AND 3R
Cod: 3RH2911-1NF11
Siemens
AUXILIARY SWITCH ON THE FRONT, 2 NO + 2 NC CURRENT PATH 1 NO, 1 NC, 1 NC, 1 NO FOR 3RH AND 3RT SCREW
Cod: 3RH2911-1XA22-0MA0
Siemens
AUXILIARY SWITCH ON THE FRONT, 2 NO + 2 NC CURRENT PATH 1 NO, 1 NC, 1 NC, 1 NO FOR 3RH AND 3RT SCREW
Cod: 3RH2911-1FA22
Siemens
AUXILIARY SWITCH ON THE FRONT, 4 NO CURRENT PATH 1 NO, 1 NO, 1 NO, 1 NO FOR 3RH AND 3RT SCREW TERMIN
Cod: 3RH2911-1FA40
Siemens
AUXILIARY SWITCH LATERAL, 1 NO + 1 NC CURRENT PATH 1 NC, 1 NO FOR 3RH AND 3RT SCREW TERMINAL R: 31/3
Cod: 3RH2921-1DA11
Siemens
SURGE SUPPRESSOR, VARISTOR, 127 ... 240 V AC 150 ... 250 V DC FOR MOTOR CONTACTORS SIZE S0
Cod: 3RT2926-1BD00
Siemens
SURGE SUPPRESSOR, RC ELEMENT, 127...240 V AC, 150 ... 250 V DC, FOR MOTOR CONTACTORS SIZE S0,
Cod: 3RT2926-1CD00
Siemens
COIL CONNECTION MODULE FOR MOTOR CONTACTORS, SIZE S0 -S3, CONNECTION FROM BELOW, SCREW TERMINAL
Cod: 3RT2926-4RB11
Siemens
COIL CONNECTION MODULE FOR MOTOR CONTACTORS, SIZE S0 -S3, CONNECTION DIAGONAL SCREW TERMINAL
Cod: 3RT2926-4RC11
Siemens
WIRING KIT FOR SCREW TERMINAL ELECTRICAL AND MECHANICAL INCLUDING MECHANICAL INTERLOCKING FOR REVERS
Cod: 3RA2923-2AA1
Siemens
WIRING KIT FOR SCREW TERMINAL ELECTRICAL AND MECHANICAL INCLUDING MECHANICAL INTERLOCKING FOR YD STA
Cod: 3RA2923-2BB1
Siemens
WIRING KIT FOR SCREW TERMINAL ELECTRICAL AND MECHANICAL INCLUDING MECHANICAL INTERLOCKING FOR YD STA
Cod: 3RA2924-2BB1
Siemens
LINK FOR PARALLELING WITHOUT CONNECTION TERMINAL, 3-POLE FOR 3RT2.2 WITH SCREW TERMINAL
Cod: 3RT1926-4BA31
Siemens
LABELING PLATES 20X7 MM TI - GRAY BOX CONTAINS 17 MATS ON MATS 20 LABELS PER MAT
Cod: 3RT2900-1SB20
Siemens
AUXILIARY SWITCH ON THE FRONT, 1 NO + 1 NC CURRENT PATH 1 NC, 1 NO FOR 3RH AND 3RT SCREW TERMINAL .1
Cod: 3RH2911-1HA11
Siemens
AUXILIARY SWITCH ON THE FRONT, 2 NO + 2 NC CURRENT PATH 1 NC, 1 NC, 1 NO, 1 NO FOR 3RH AND 3RT SCREW
Cod: 3RH2911-1HA22
Siemens
AUXILIARY SWITCH ON THE FRONT, 3 NO + 1 NC CURRENT PATH 1 NC, 1 NO, 1 NO, 1 NO FOR 3RH AND 3RT SCREW
Cod: 3RH2911-1HA31
Siemens
ELECTRON. CONTR. AUXILIARY SWITCH 1 NO+1 NC, CURRENT PATH 1 NO,--,--, 1 NC FRONT-SIDE FOR 3RH AND 3R
Cod: 3RH2911-1NF11
Siemens
AUXILIARY SWITCH ON THE FRONT, 2 NO + 2 NC CURRENT PATH 1 NO, 1 NC, 1 NC, 1 NO FOR 3RH AND 3RT SCREW
Cod: 3RH2911-1XA22-0MA0
Siemens
AUXILIARY SWITCH ON THE FRONT, 2 NO + 2 NC CURRENT PATH 1 NO, 1 NC, 1 NC, 1 NO FOR 3RH AND 3RT SCREW
Cod: 3RH2911-1FA22
Siemens
AUXILIARY SWITCH ON THE FRONT, 4 NO CURRENT PATH 1 NO, 1 NO, 1 NO, 1 NO FOR 3RH AND 3RT SCREW TERMIN
Cod: 3RH2911-1FA40
Siemens
AUXILIARY SWITCH LATERAL, 1 NO + 1 NC CURRENT PATH 1 NC, 1 NO FOR 3RH AND 3RT SCREW TERMINAL R: 31/3
Cod: 3RH2921-1DA11
Siemens
SURGE SUPPRESSOR, VARISTOR, 127 ... 240 V AC 150 ... 250 V DC FOR MOTOR CONTACTORS SIZE S0
Cod: 3RT2926-1BD00
Siemens
SURGE SUPPRESSOR, RC ELEMENT, 127...240 V AC, 150 ... 250 V DC, FOR MOTOR CONTACTORS SIZE S0,
Cod: 3RT2926-1CD00
Siemens
COIL CONNECTION MODULE FOR MOTOR CONTACTORS, SIZE S0 -S3, CONNECTION FROM BELOW, SCREW TERMINAL
Cod: 3RT2926-4RB11
Siemens
COIL CONNECTION MODULE FOR MOTOR CONTACTORS, SIZE S0 -S3, CONNECTION DIAGONAL SCREW TERMINAL
Cod: 3RT2926-4RC11
Siemens
Produse similare

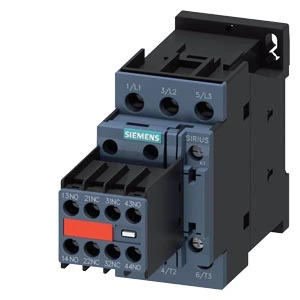

POWER CONTACTOR, AC-3 12 A, 5.5 KW / 400 V 2 NO + 2 NC, 230 V AC 50 / 60 HZ, 3-POLE SIZE S0, SCREW T
Cod: 3RT2024-1AL24-3MA0
Siemens

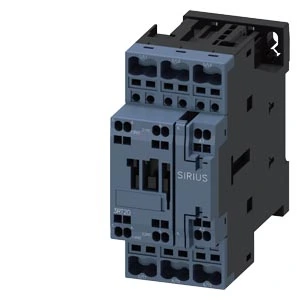

POWER CONTACTOR, AC-3 12 A, 5.5 KW / 400 V 1 NO + 1 NC, 230 V AC 50 / 60 HZ, 3-POLE SIZE S0, SPRING-
Cod: 3RT2024-2AL20
Siemens
POWER CONTACTOR, AC-3 12 A, 5.5 KW / 400 V 2 NO + 2 NC, 230 V AC 50 / 60 HZ, 3-POLE SIZE S0, SCREW T
Cod: 3RT2024-1AL24-3MA0
Siemens
POWER CONTACTOR, AC-3 12 A, 5.5 KW / 400 V 1 NO + 1 NC, 230 V AC 50 / 60 HZ, 3-POLE SIZE S0, SPRING-
Cod: 3RT2024-2AL20
Siemens
Altele

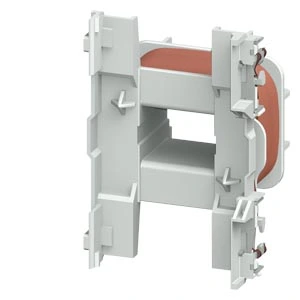

MAGNET COIL FOR CONTACTORS 7.5 KW 230 V AC, 50 / 60 HZ, FOR MOTOR CONTACTORS, SIZE S0, SCREW TERMINA
