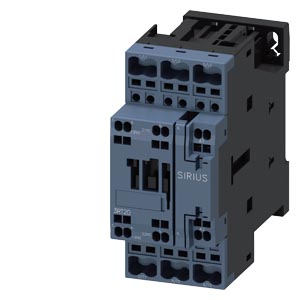

POWER CONTACTOR, AC-3 12 A, 5.5 KW / 400 V 1 NO + 1 NC, 230 V AC 50 / 60 HZ, 3-POLE SIZE S0, SPRING-
Cod produs: 3RT2024-2AL20
Descriere
Power contactor SIRIUS 3RT2
The 3RT2 contactors are designed for switching motors with high contact reliability in a compact design.
Technical details:
- Type: power contactor
- Application: AC-3e/AC-3
- Current rating: 12 A
- Power rating: 5.5 kW / 400 V
- Pole configuration: 3-pole
- Operating voltage: 230 V AC
- Frequency: 50/60 Hz

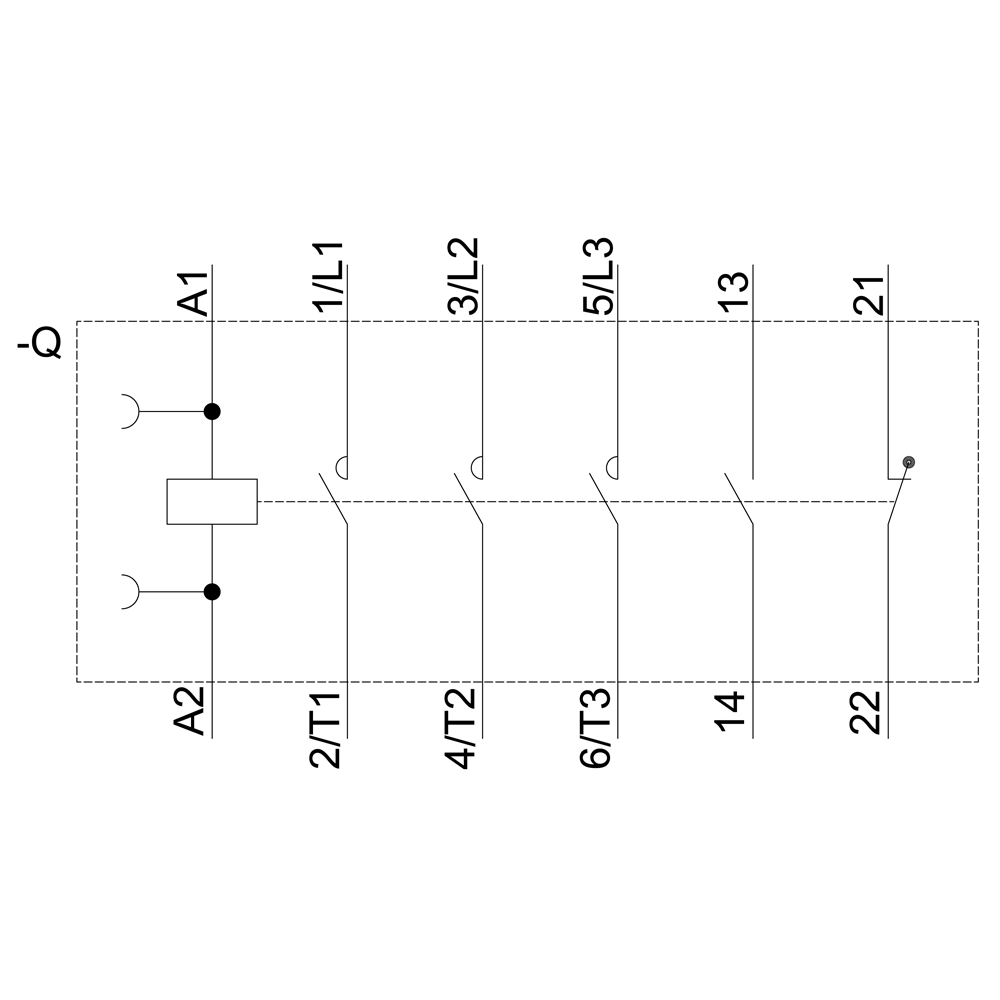

- Auxiliary contacts: 1 NO + 1 NC
- Terminal type: spring-loaded terminal
- Size: S0
Customer benefits:
- Part of the modular SIRIUS system with optimally coordinated products.
- Convincing performance from a compact design.
- Can be combined with a variety of components in the load feeder.
- Many device combinations have been factory tested.
- Best connection to the automation level for every application (parallel, via ASi or IO-Link).
- Integrated auxiliary switches reduce design complexity.
- Front-panel terminals simplify wiring.
- Climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
- IE3/IE4-ready.
- Available in various sizes and wide performance range with AC and DC operation.
- Screw and spring-type terminals for fast, maintenance-free connection.
- Standardized range of accessories for all sizes.
- Available link modules and function modules reduce wiring expense.
- Simple, efficient and always up to date with SIRIUS modular system.
Disclaimer: Generated by AI.
Documente
Specificatii

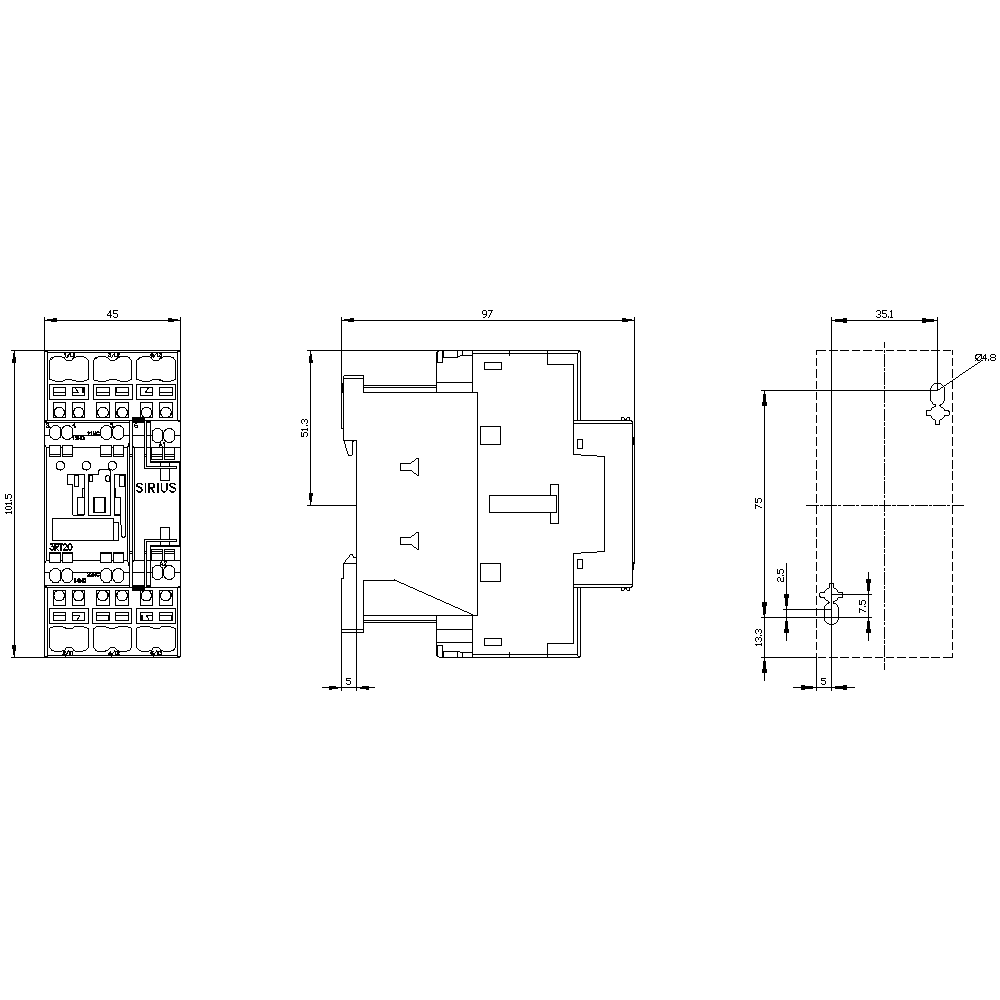

| Measurements | |
| Depth | 97 |
| Height | 102 |
| Width | 45 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 |
| Rated control supply voltage AC 60 Hz | 230 |
| Rated operation power at AC-4, 400 V | - |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | 12.5 |
| Rated operation power NEMA | 5.8839904 |
| Rated operation current Ie at AC-3, 400 V | 12 |
| Rated operation current Ie at AC-1, 400 V | 40 |
| Operating voltage AC 60 Hz | 690 |
| Rated control supply voltage DC | - |
| Operating voltage AC 50 Hz | 690 |
| Rated operation power at AC-3, 400 V | 5.5 |
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Number of normally open contacts as main contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Options | |
| Suitable for distribution board | Yes |
| Package 1 | |
| weight | 0,444 |
| length | 0,1085 |
| width | 0,054 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209832046 |
| Dimensions of product | |
| Weight | 0,444 |
