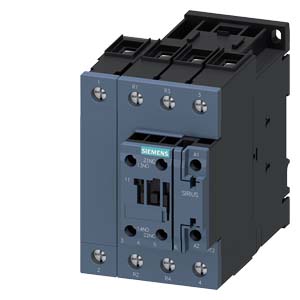

POWER CONTACTOR, AC-3 40 A, 18.5 KW / 400 V 2 NO + 2 NC 230 V AC, 50 HZ 4-POLE SIZE S2 SCREW TERMINA
Cod produs: 3RT2535-1AP00
Descriere
Power Contactor
The power contactor is designed for changing the polarity of hoisting gear motors or switching two separate loads with high contact reliability.
Technical details:
- Type: AC-3
- Current: 35 A
- Power: 18.5 kW / 400 V
- Poles: 4-pole
- Operating Voltage: 230 V AC
- Frequency: 50 Hz

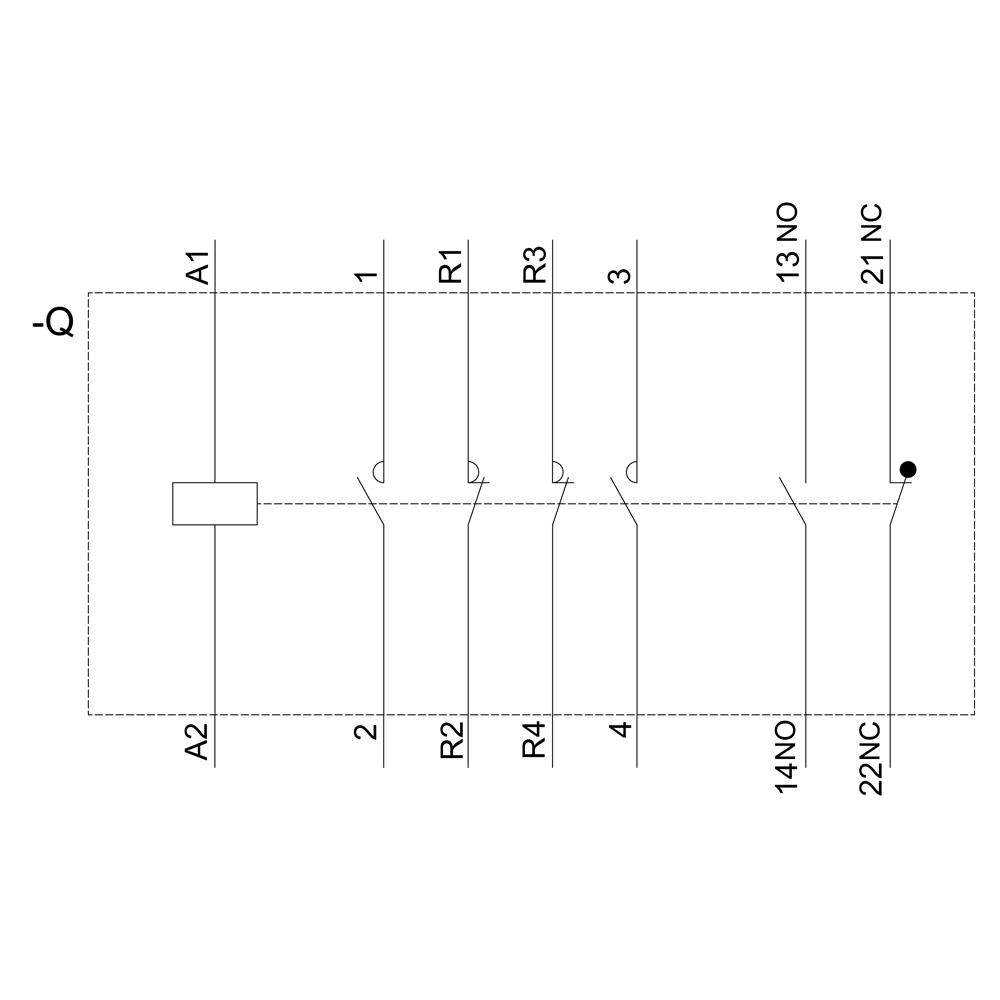

- Main Contacts: 2 NO + 2 NC
- Auxiliary Contacts: 1 NO + 1 NC
- Terminal Type: Screw terminal

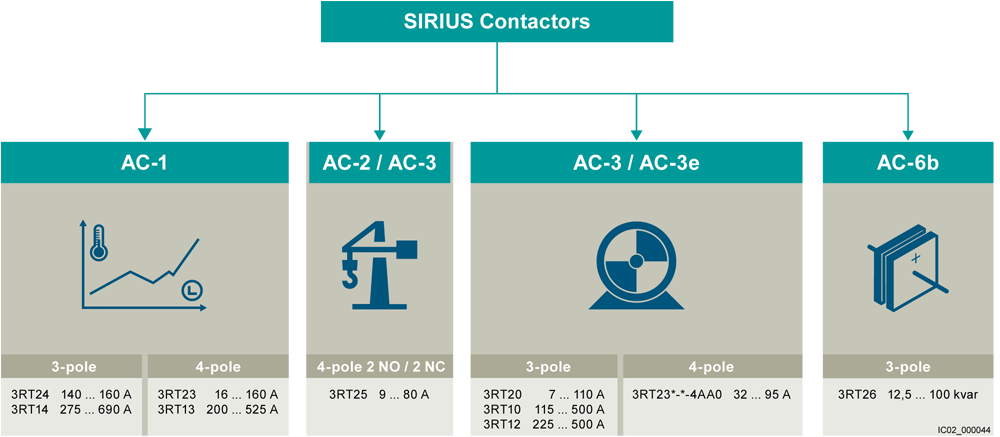

- Size: S2 contactor SIRIUS 3RT25
Customer benefits:
- Part of the SIRIUS modular system with optimally coordinated products.
- Convincing performance from a compact design.
- Can be combined with a variety of other components in the load feeder.
- Many device combinations have been factory tested.
- Integrated auxiliary switches reduce configuration complexity.
- Front-panel terminals simplify wiring.
- Climate-proof and approved for worldwide use (e.g. IEC and UL/CSA).
- Available in various sizes and a wide performance range with AC and DC operation.
- Devices in smaller sizes available with spring-loaded terminals for fast, maintenance-free and vibration-proof connection.
- Comprehensive range of standardized accessories for all sizes.
- Simple, efficient, and always up to date - SIRIUS modular system.
Disclaimer: Generated by AI.
Documente
Specificatii
| Measurements | |
| Depth | 130 |
| Height | 114 |
| Width | 75 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation power at AC-4, 400 V | - |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | - |
| Rated operation power NEMA | 14.709976 |
| Rated operation current Ie at AC-3, 400 V | 35 |
| Rated operation current Ie at AC-1, 400 V | 60 |
| Operating voltage AC 60 Hz | - |
| Rated control supply voltage DC | - |
| Operating voltage AC 50 Hz | - |
| Rated operation power at AC-3, 400 V | 18.5 |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally open contacts as main contact | 2 |
| Number of normally closed contacts as main contact | 2 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Options | |
| Suitable for distribution board | Yes |
| Package 1 | |
| weight | 1,14 |
| length | 0,1225 |
| width | 0,082 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209953604 |
| Dimensions of product | |
| Weight | 1,140 |
