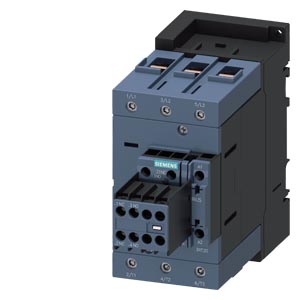

POWER CONTACTOR, AC-3 80 A, 37 KW / 400 V 2 NO + 2 NC, 230 V AC/50 HZ 3-POLE, 3 NO, SIZE S3 SCREW TE

Power contactor

Power contactor SIRIUS 3RT2 for switching motors.

Technical details:

• AC-3e/AC-3
• 80 A
• 37 kW / 400 V
• 3-pole
• 230 V AC
• 50 Hz

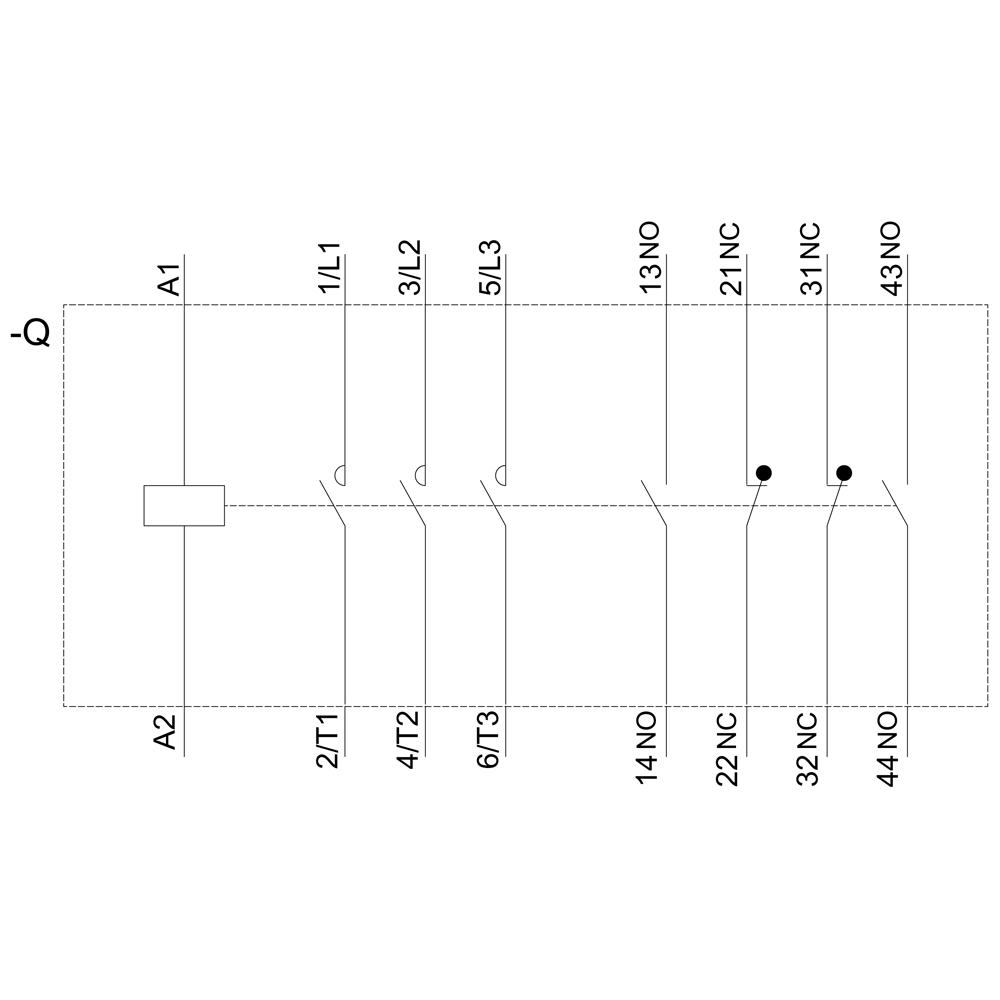

• Auxiliary contacts: 2 NO + 2 NC
• Screw terminal
• Size: S3
• Removable auxiliary switch

Customer benefits:

• Part of the modular SIRIUS system with optimally coordinated products.
• Convincing performance from a compact design with high contact reliability.
• Can be combined with a variety of other components in the load feeder.
• Factory tested combinations of devices.
• Best connection to the automation level for every application (parallel, via ASi or IO-Link).
• Integrated auxiliary switches reduce the complexity of your design.
• Front-panel terminals simplify wiring.
• Climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
• IE3/IE4-ready.
• Available in various sizes and a wide performance range with AC and DC operation.
• Devices available with screw or spring-type terminals for fast, maintenance-free connection.
• Comprehensive range of standardized accessories for all sizes.
• Available link modules, function modules, and the SIRIUS 3RV29 infeed system reduce wiring expense.
• Simple, efficient and always up to date - SIRIUS modular system.
