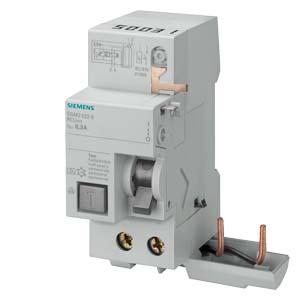

Rc unit for 5sy
The RC unit is designed for integration with miniature circuit breakers for personal, fire, and line protection.
Technical details:
- Type: AC
- In: 40 A
- 30 mA
- Un AC: 230 V
- Model: RCD-unit SENTRON 5SM2
Customer benefits:

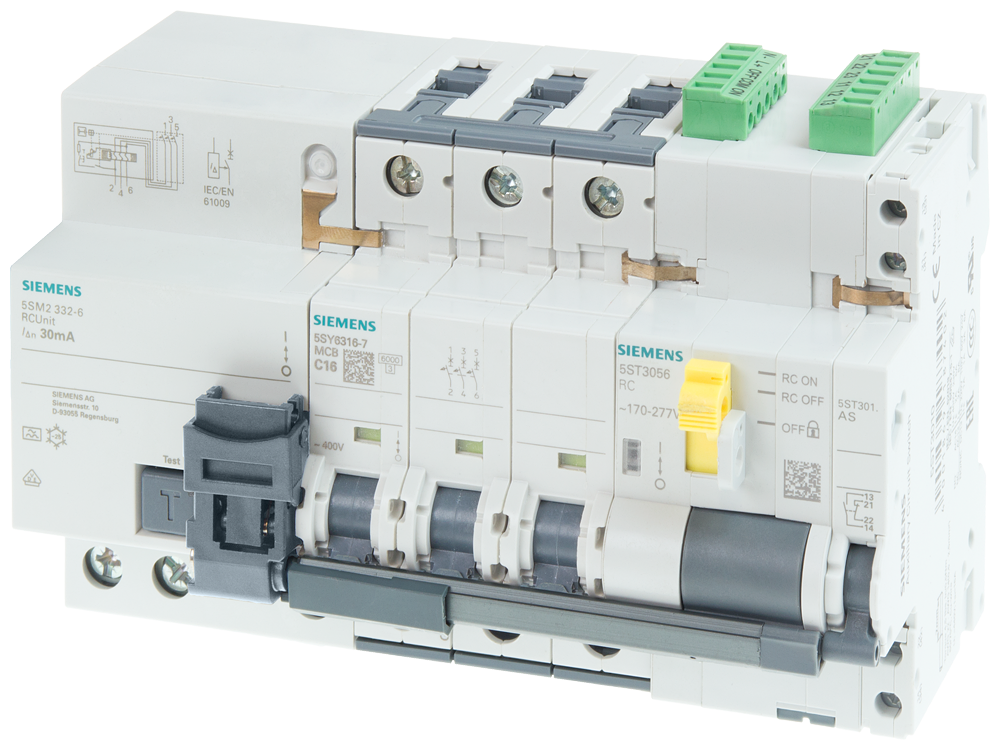

- Easy combination with miniature circuit breakers by simply plugging them together without tools.
- Wide variety of RC unit types and comprehensive range of miniature circuit breakers provide a huge spectrum of possible combinations.
- All 100 A and 125 A RC units offer external remote tripping via terminals Y1/Y2.
- Additional components for miniature circuit breakers can be retrofitted on the right-hand side.
- Optimized technology for safety.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Nominal current | 40 |
| Number of poles | 2 |
| Rated impulse withstand voltage Uimp | - |
| Power loss | - |
| Leakage current type | AC |
| Nominal voltage | 230 |
| Surge current capacity | 4 |
| Rated insulation voltage Ui | 460 |
| Rated fault current | 0.03 |
| Options | |
| Anti-nuisance tripping version | Yes |
| Model/type | |
| With interlocking device | No |
| Setting/control | |
| Rated fault current adjustable | No |
| Delay adjustable | No |
| Other | |
| Pollution degree | 2 |
| Frequency | 50 Hz |
| Max. delay time | - |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Connectable conductor cross section multi-wired | 1.5 |
| Connectable conductor cross section solid-core | 1.5 |
| Operating conditions | |
| Ambient temperature during operating | -5 |
| Package 1 | |
| weight | 0,188 |
| length | 0,076 |
| width | 0,106 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869171173 |
| Package 2 | |
| volume | 0,026 |
| weight | 5,356 |
| length | 0,44 |
| width | 0,325 |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 4001869171173 |
| Dimensions of product | |
| Weight | 0,188 |
