Descriere

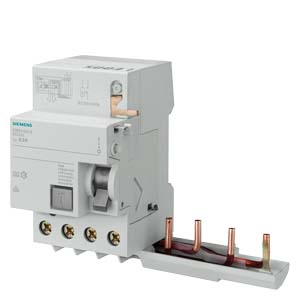

RC unit for 5SY, 4-pole, type A, selective, In: 63 A, 500 mA, Un AC: 400 V RCD-unit SENTRON 5SM2 for combination with miniature circuit breakers for personal, fire and line protection. It is possible to combine the RC units with miniature circuit breakers by simply plugging them together without the use of tools. Our wide variety of RC unit types and comprehensive range of miniature circuit breakers offer a huge spectrum of possible combinations for all your applications. All 100 A and 125 A RC units offer external remote tripping via terminals Y1/Y2, with which central OFF circuits can also be implemented. All additional components for miniature circuit breakers can be retrofitted on the right-hand side. Optimized technology for your safety - only from Siemens.
Documente
Specificatii
| Electrical | |
| Nominal current | 63 |
| Number of poles | 4 |
| Rated impulse withstand voltage Uimp | 5 |
| Power loss | - |
| Leakage current type | A |
| Nominal voltage | 400 |
| Surge current capacity | 4 |
| Rated insulation voltage Ui | 460 |
| Rated fault current | 0.5 |
| Options | |
| Anti-nuisance tripping version | Yes |
| Model/type | |
| With interlocking device | No |
| Setting/control | |
| Rated fault current adjustable | No |
| Delay adjustable | No |
| Other | |
| Pollution degree | 2 |
| Frequency | 50/60 Hz |
| Max. delay time | - |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Connectable conductor cross section multi-wired | 1.5 |
| Connectable conductor cross section solid-core | 1.5 |
| Operating conditions | |
| Ambient temperature during operating | -25 |
| Package 1 | |
| weight | 0,309 |
| length | 0,13 |
| width | 0,105 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869309699 |

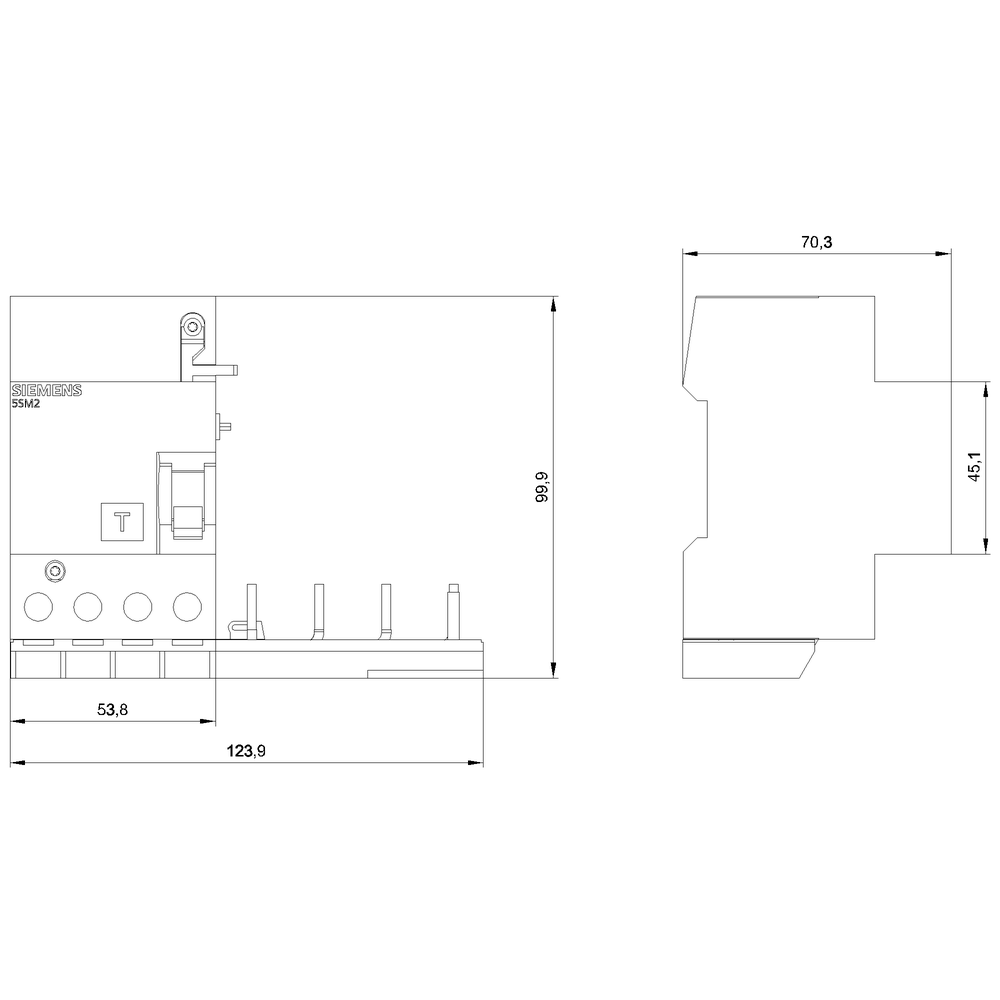

| Dimensions of product | |
| Weight | 0,309 |
