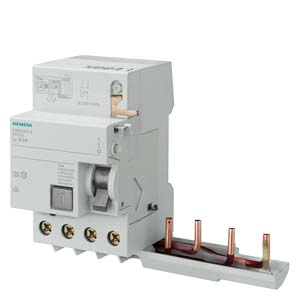

RC unit for 5SY
The RC unit for 5SY is designed for personal, fire, and line protection, ensuring safety with easy integration into miniature circuit breakers.
Technical details:
- Type: AC
- In: 40 A
- 30 mA
- Un AC: 400 V
- RCD-unit SENTRON 5SM2

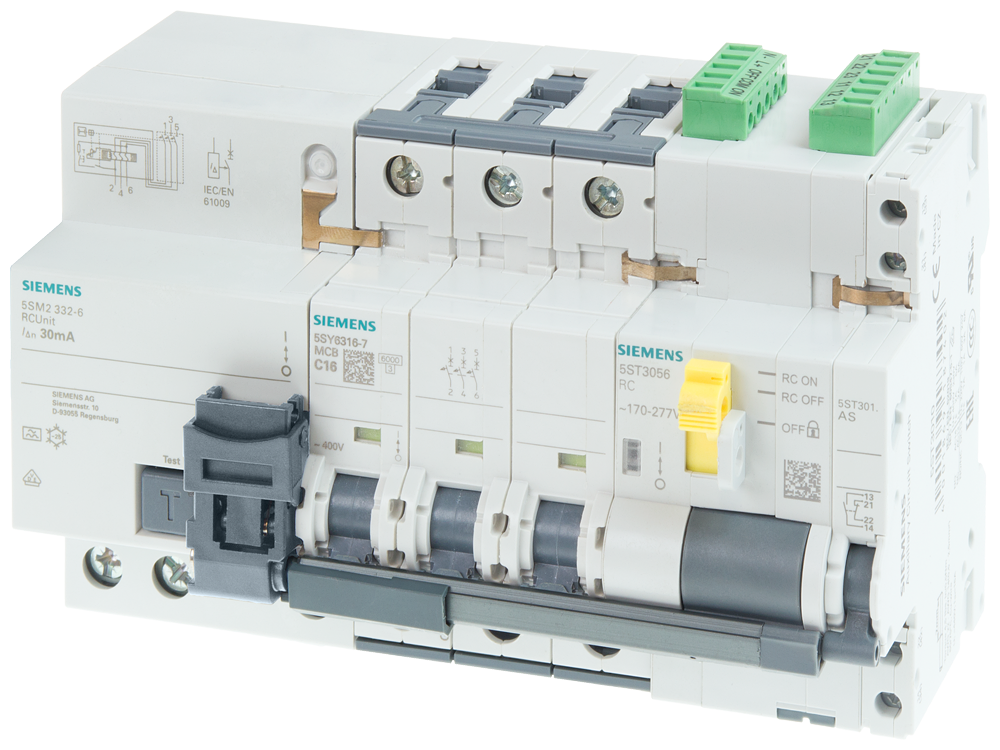

- Combination with miniature circuit breakers
- External remote tripping via terminals Y1/Y2 for 100 A and 125 A units
Customer benefits:
- Easy combination with miniature circuit breakers by simply plugging them together without tools.
- A wide variety of RC unit types and comprehensive range of miniature circuit breakers offer extensive combinations for various applications.
- All additional components for miniature circuit breakers can be retrofitted on the right-hand side.
- Optimized technology ensures enhanced safety.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Nominal current | 40 |
| Number of poles | 4 |
| Rated impulse withstand voltage Uimp | - |
| Power loss | - |
| Leakage current type | AC |
| Nominal voltage | 400 |
| Surge current capacity | 4 |
| Rated insulation voltage Ui | 460 |
| Rated fault current | 0.03 |
| Options | |
| Anti-nuisance tripping version | Yes |
| Model/type | |
| With interlocking device | No |
| Setting/control | |
| Rated fault current adjustable | No |
| Delay adjustable | No |
| Other | |
| Pollution degree | 2 |
| Frequency | 50 Hz |
| Max. delay time | - |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Connectable conductor cross section multi-wired | 1.5 |
| Connectable conductor cross section solid-core | 1.5 |
| Operating conditions | |
| Ambient temperature during operating | -5 |
| Package 1 | |
| weight | 0,313 |
| length | 0,13 |
| width | 0,105 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869171050 |
| Dimensions of product | |
| Weight | 0,313 |
