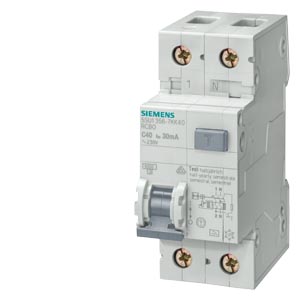

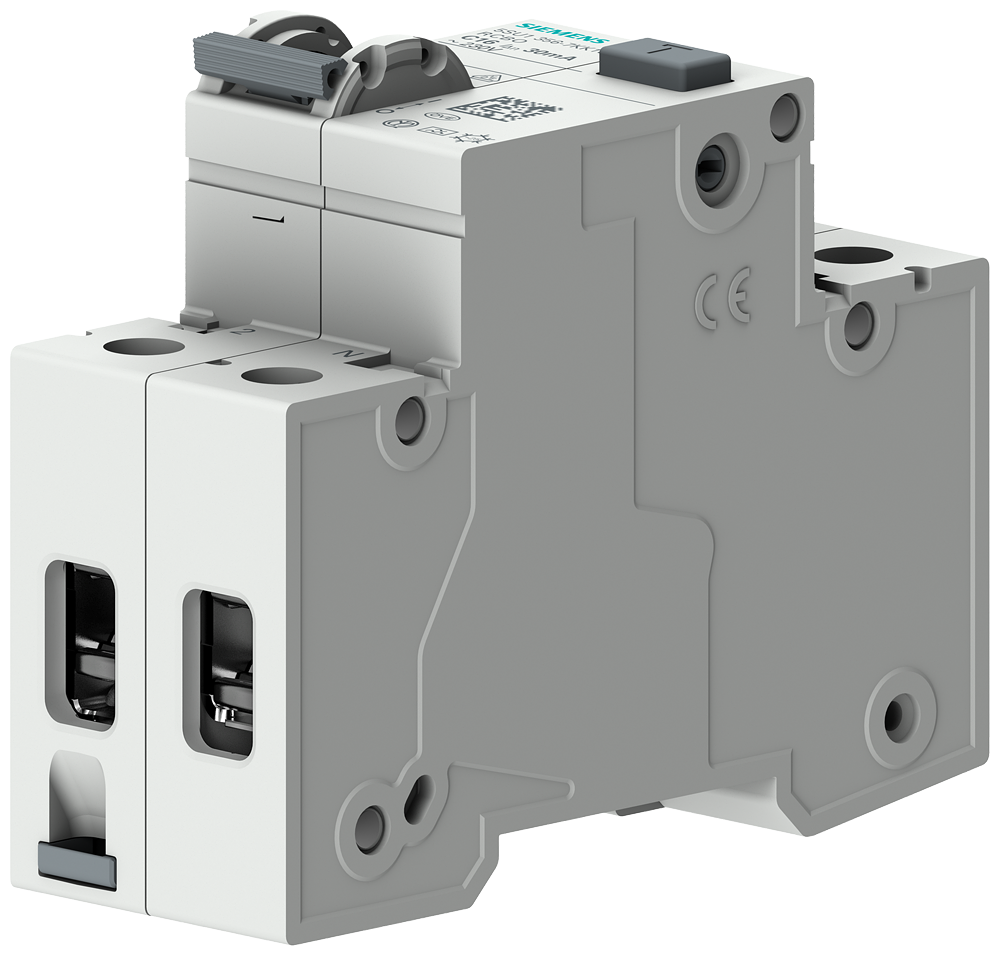

RCBO, 4.5 kA, 1P+N, type A, 30 mA, C-Char, In: 16 A, Un AC: 230 V
Cod produs: 5SU1353-7KK16
Alte coduri:
upc: 040892686005
Descriere
Rcbo, 4.5 Ka, 1P+n, Type A, 30 Ma, C-char, In: 16 A, Un Ac: 230 V
The RCBO SENTRON 5SU1 provides combined protection against overload, short circuit, and residual currents.
Technical details:
- Rated short-circuit capacity: 4.5 kA
- Number of poles: 1P+N
- Type: A
- Rated residual current: 30 mA
- Rated current (In): 16 A
- Rated voltage (Un AC): 230 V
Customer benefits:
- Simple connection of conductors with different cross-sections due to dual-chamber terminals.
- Quick and easy connection with Siemens SENTRON circuit protection devices using the 5ST3 pin busbars.
- Fast access to technical data via the Data Matrix code using the Siemens Industry Online Support App.
- Expandable with additional functions using consistent accessories from the modular system.
- Optimized technology for safety, provided by Siemens.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Overvoltage category | 3 |
| Voltage type | AC |
| Rated short-circuit breaking capacity according to EN 61009 | 4.5 |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 4.5 |
| Rated impulse withstand voltage Uimp | 4 |
| Power loss | 2.8 |
| Rated insulation voltage Ui | 264 |
| Rated fault current | 0.03 |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 15 |
| Leakage current type | A |
| Surge current capacity | 1 |
| Release characteristic | C |
| Rated voltage | 230 |
| Rated current | 16 |
| Current limiting class | 3 |
| Model/type | |
| With interlocking device | Yes |
| Number of poles (total) | 2 |
| Number of protected poles | 1 |
| Other | |
| Pollution degree | 2 |
| Frequency | - |
| Connection | |
| Connectable conductor cross section multi-wired | 0.75 |
| Disconnection characteristic | Undelayed |
| Connectable conductor cross section solid-core | 0.75 |
| Measurements | |
| Width in number of modular spacings | 2 |
| Built-in depth | 70 |
| Options | |
| Anti-nuisance tripping version | Yes |
| Concurrently switching neutral conductor | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Mounting/installation | |
| Flush-mounted installation | Yes |
| Operating conditions | |
| Ambient temperature during operating | -25 |
| Package 1 | |
| weight | 0,266 |
| length | 0,096 |
| width | 0,04 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869306452 |
| Dimensions of product | |
| Weight | 0,266 |
