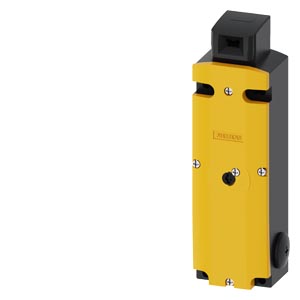

SAFETY POSITION SWITCH WITH TUMBLER LOCKING FORCE 2600 N 5 DIRECTIONS OF APPROACHES SPRING-LOCKED AU

Cod produs: 3SE5312-0SD11

▶

Autentificati-va pentru a vedea pretul.

Producator: Siemens

Set: 1 bucati

4011209682955

Alte coduri: upc: 754554951478

Descriere

Safety position switch with guard lock

The safety position switch with guard lock is designed for position monitoring of moving protection equipment to ensure safety during hazardous states.

Technical details:

Locking force: 2600 N
5 approach directions

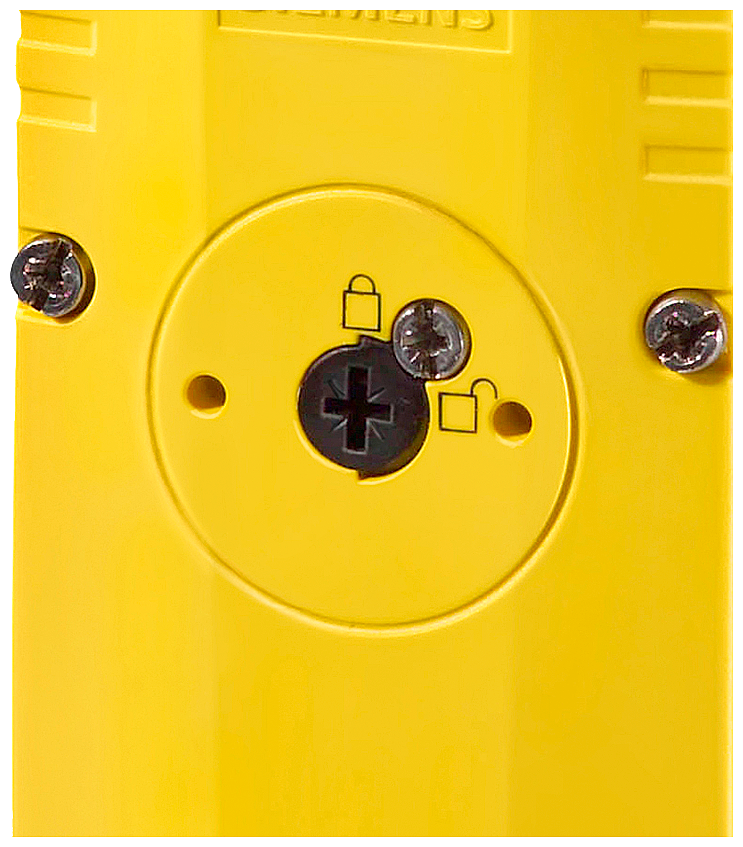

Spring-locked auxiliary release on the front
Magnet voltage: 24 V DC

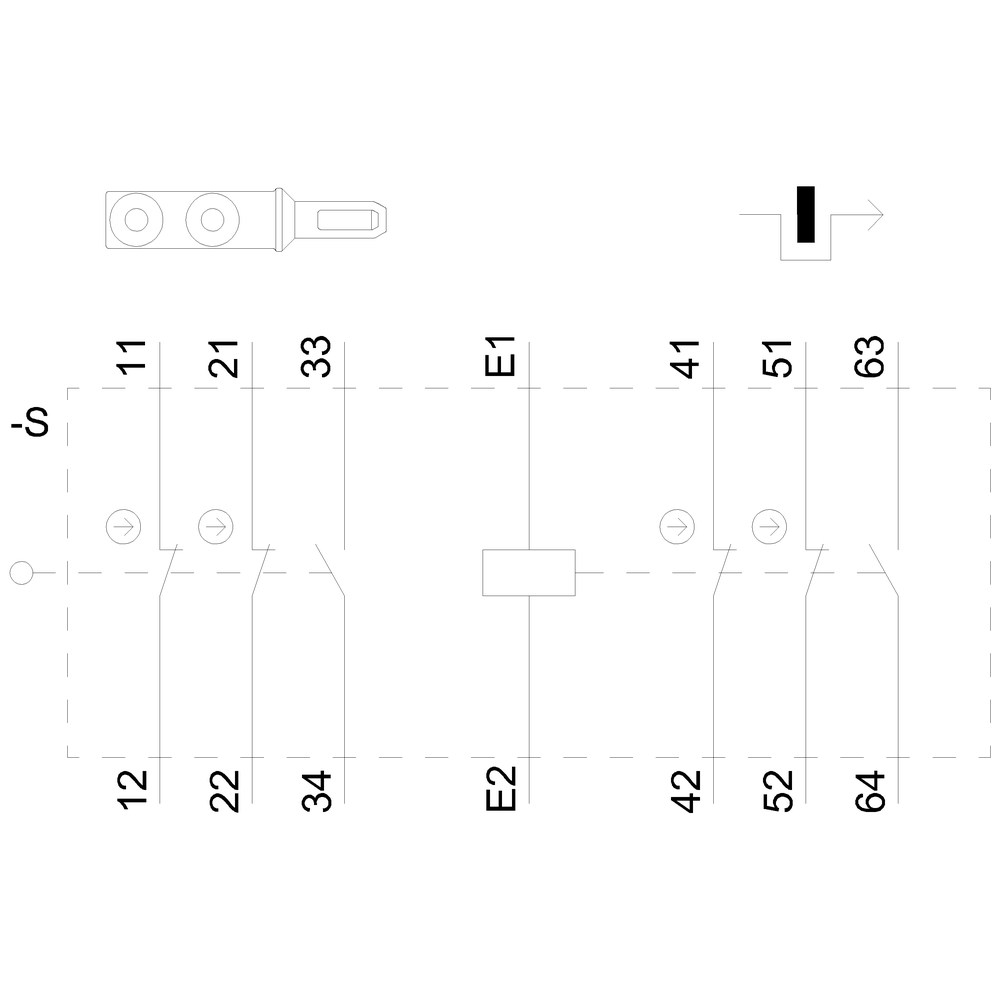

Monitoring actuator: 2 NC/1 NO
Monitoring magnet: 2 NC/1 NO
Supplied without actuator, actuator 3SE5000-0AV0 to be ordered separately
Worldwide approval: IEC, UL
Highest safety requirements: PL e or SIL 3
Available with spring or solenoid locking
Locking forces: plastic 1300 N, metal 2300 N
Extensive range of 3D-coded actuators available for order

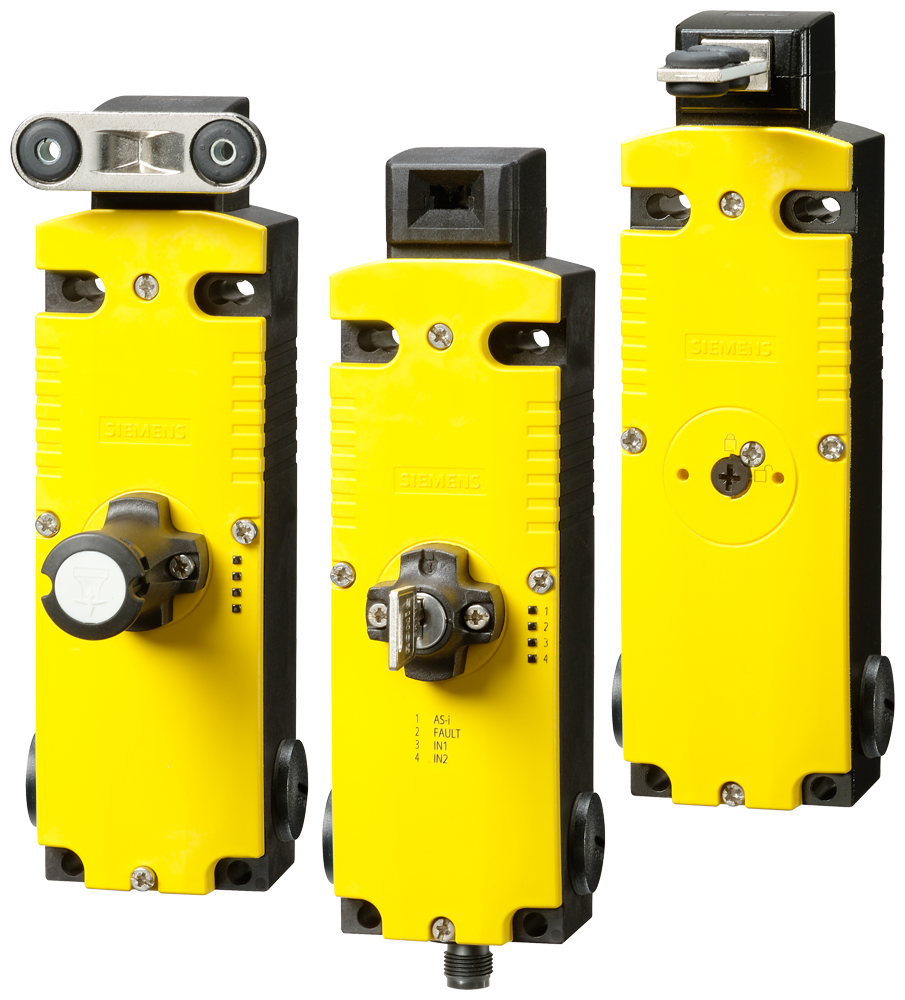

Some versions optionally available with LED status display
3SF1 series with direct connection to AS-Interface bus system
Plug-in connectors and connection accessories available depending on design

Customer benefits:

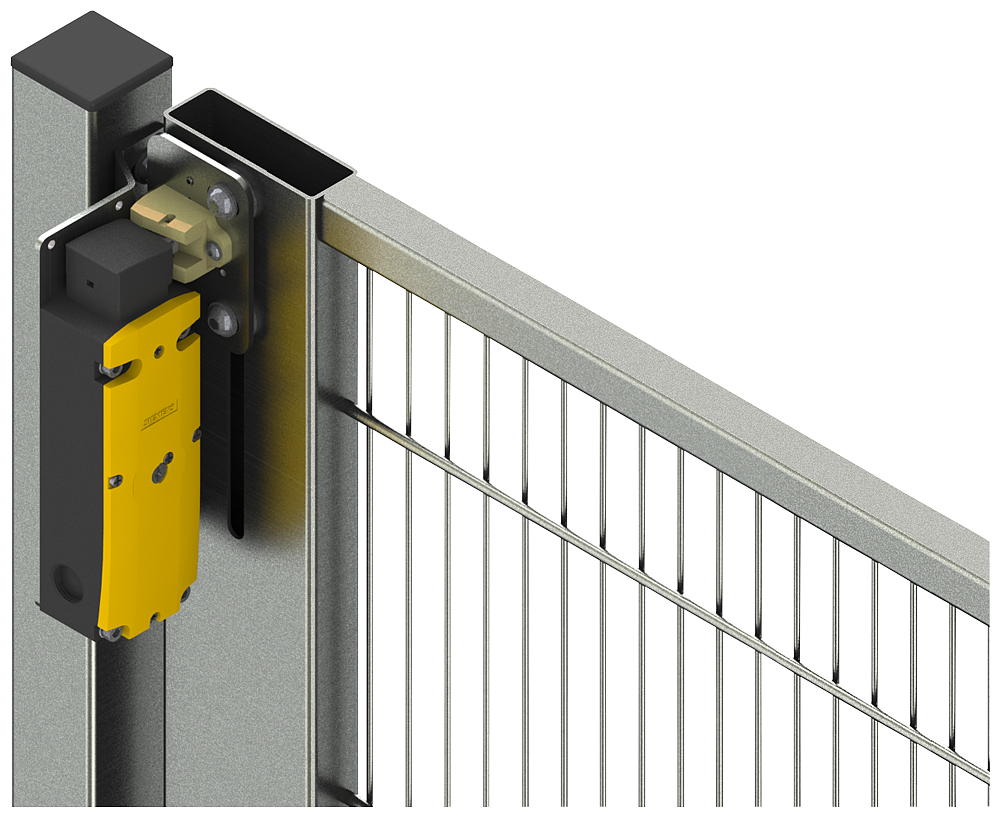

Ensures protective doors, covers, or flaps are kept closed during hazardous states
Contact blocks provide extremely high contact reliability
Convenient LED indicators show the current state of the device
Higher level of tamper protection with separately coded actuators
Flexible actuator heads with screwless mounting can be rotated by 4x90 degrees
Safety features tailored for SIRIUS business needs

Disclaimer: Generated by AI.

Documente

Fisa tehnica

Certificat

Link to Certificates

Altele

Link to Sales brochure

Declaratie de conformitate

Alte surse

Specificatii

Communication
Type of interface for safety communication	None
Type of interface	None
Protection
Degree of protection (NEMA)	-
Degree of protection (IP)	IP66/IP67
Explosion safety category for dust	None
Explosion safety category for gas	None
Model/type
Type of guard locking	Quiescent current principle
With status indication	No
With escape release	No
With auxiliary release	-
Type of switching contact	Slow-action switch
Construction type housing	Special construction
Electrical
Rated operation current Ie at AC-15, 24 V	6
Rated operation current Ie at AC-15, 125 V	-
Rated operation current Ie at DC-13, 24 V	3
Rated operation current Ie at DC-13, 125 V	0.55
Rated control supply voltage magnet drive AC 60 Hz	-
Rated control supply voltage magnet drive AC 50 Hz	-
Rated operation current Ie at AC-15, 230 V	-
Rated operation current Ie at DC-13, 230 V	-
Rated control supply voltage magnet drive DC	-

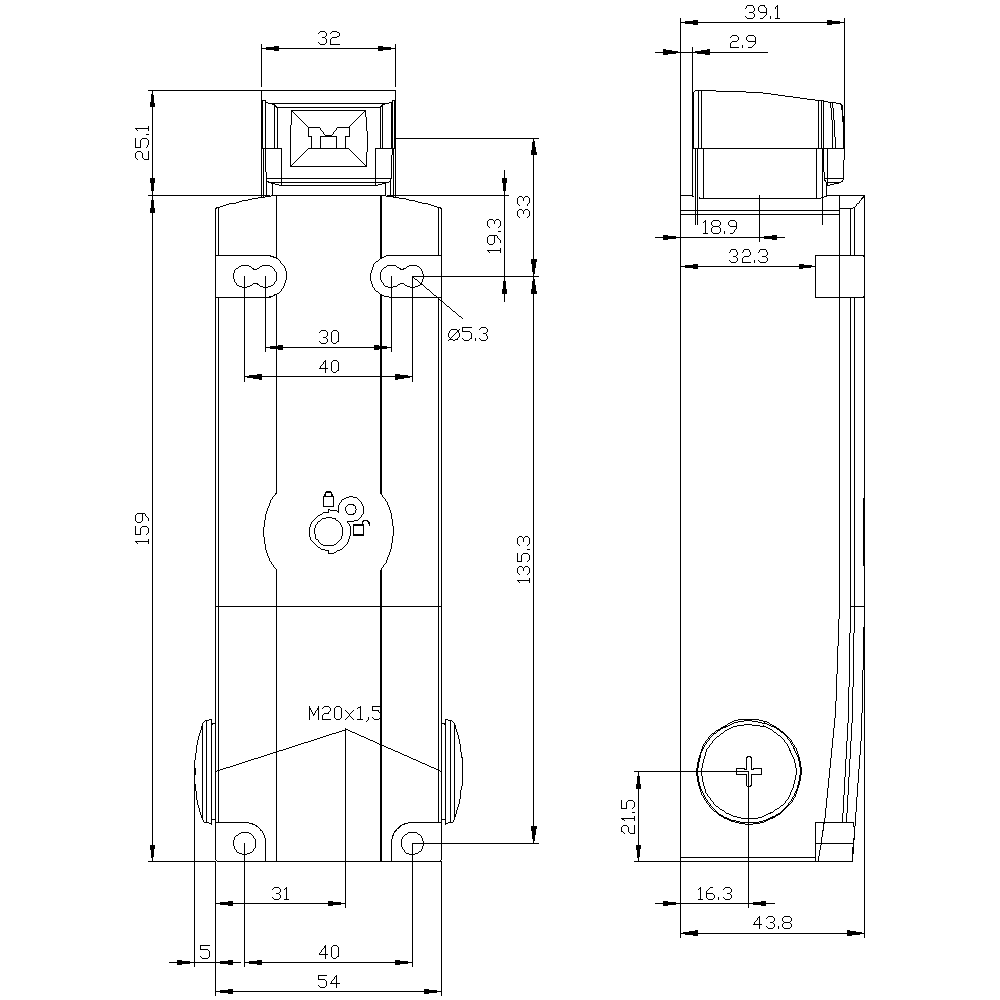

Measurements
Height of sensor	43.5
Width sensor	54
Length of sensor	185
Connection
Number of contacts as change-over contact	0
Number of contacts as normally open contact	-
Number of contacts as normally closed contact	-
Type of electric connection	Other
Number of safety auxiliary contacts	4
Material
Coating housing	Lacquered
Housing material	Metal
Other
Guard locking force	2600
Application
Suitable for safety functions	Yes
Operating conditions
Ambient temperature during operating	-25
Package 1
weight	0,944
length	0,213
width	0,0615
qmax	1
qmin	1
um	PA
gtin	4011209682955
Dimensions of product
Weight	0,944

Afiseaza mai multe specificatii
