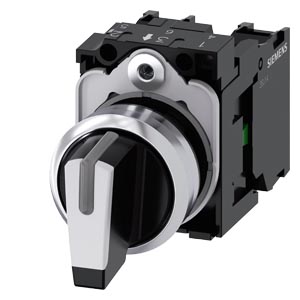

SELECTOR SWITCH, ILLUMINABLE, 22 MM, ROUND, METAL, SHINY, WHITE, SELECTOR SWITCH, SHORT, 3 SWITCH PO
Cod produs: 3SU1150-2BL60-1NA0
Alte coduri:
upc: 804766072260
Descriere
Selector switch
The illuminable selector switch is designed for switching and controlling electrical loads with convenience and durability.
Technical details:
- Diameter: 22 mm
- Shape: Round
- Material: Metal, shiny, white
- Positions: 3 switch positions I-O-II
- Type: Latching
- Actuating angle: 2x45°
- Time settings: 10:30h/12h/13:30h
- Holder: Included

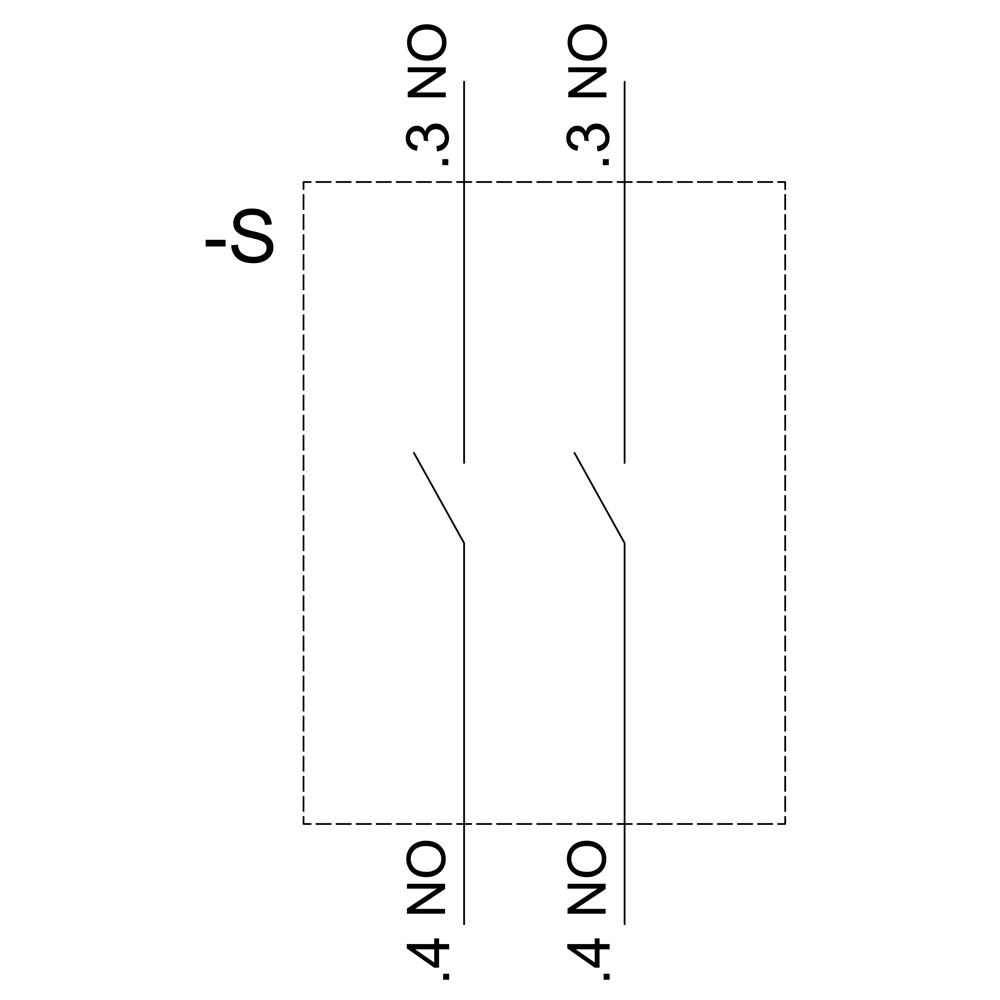

- Contacts: 1 NO, 1 NO
- Connection: Screw terminal
Customer benefits:

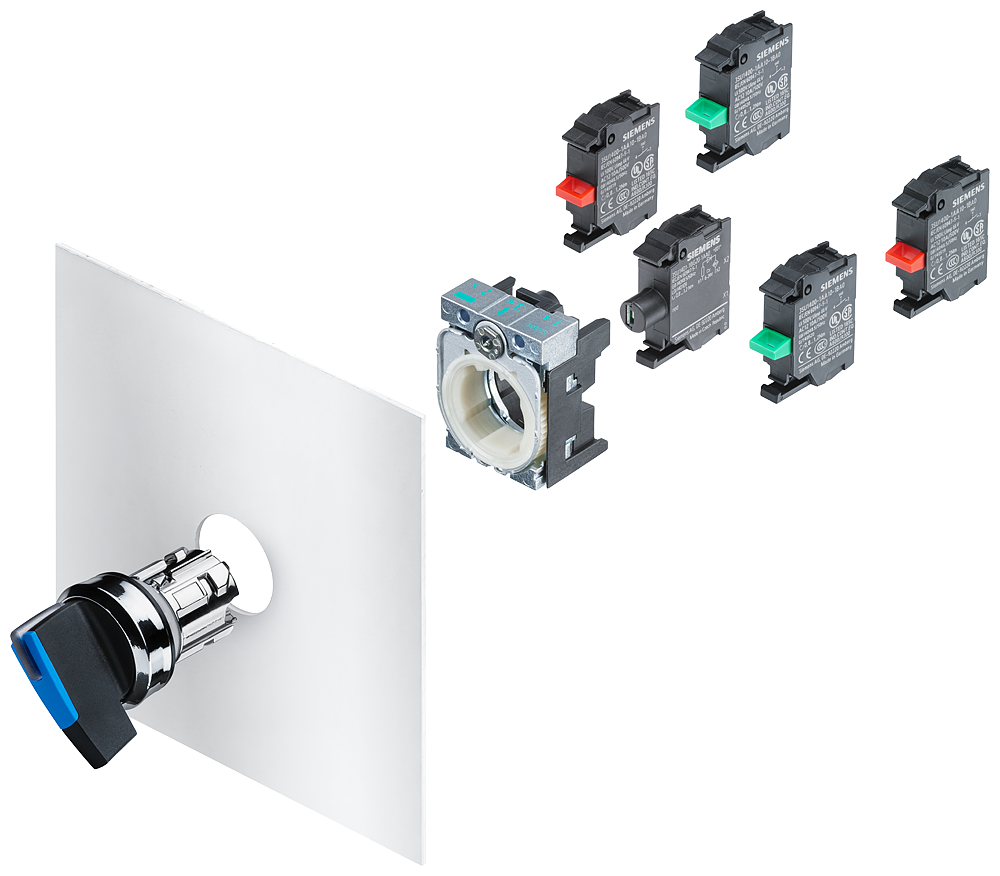

- Easy installation with a unique snap-on concept that requires no special tools.

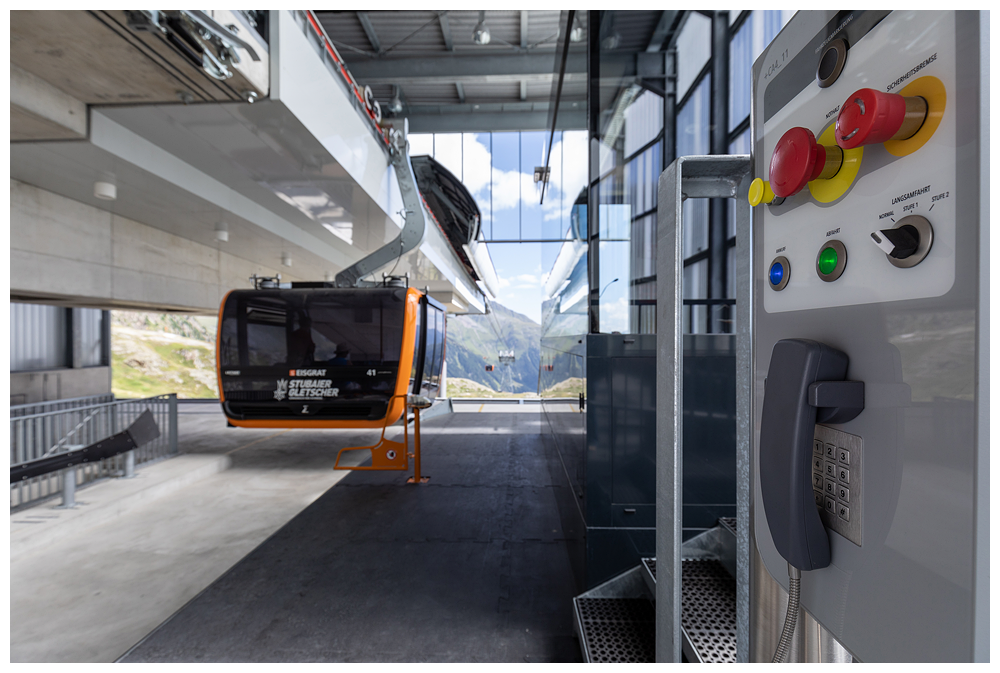

- High degree of protection makes it suitable for industrial and outdoor use.
- Compatible with standard wiring and can connect to controllers via PROFINET, AS-Interface, or IO-Link.
- Reduces wiring time and effort while minimizing error sources.
- Graphical Online Configurator offers convenient support for selection and ordering.
- Extensive documentation available including manuals and terminal diagrams.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With light source | No |
| With front ring | Yes |
| Type of control element | Wing knob |

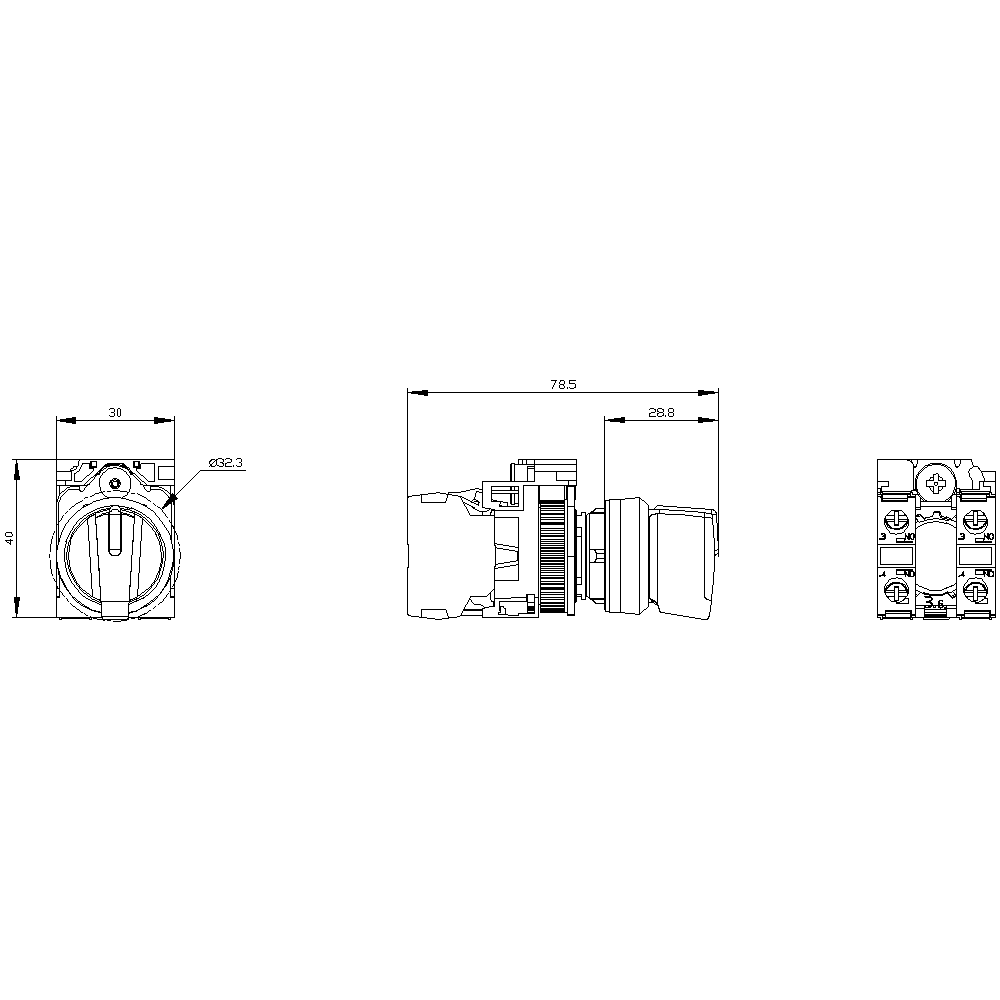

| Measurements | |
| Hole diameter | 22.3 |
| Width opening | 32.3 |
| Height opening | 28.8 |
| Colour | |
| Colour front ring | Other |
| Colour button | White |
| Options | |
| Spring-return | No |
| Switching function latching | Yes |
| Setting/control | |
| Number of switch positions | 3 |
| Protection | |
| Degree of protection (NEMA) | Other |
| Degree of protection (IP) | IP67/IP69K |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Electrical | |
| Power loss | - |
| Supply voltage | 5 |
| Application | |
| Suitable for lighting | Yes |
| Material | |
| Material front ring | Other |
| Package 1 | |
| weight | 0,091 |
| length | 0,081 |
| width | 0,072 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209956513 |
| Dimensions of product | |
| Weight | 0,091 |
