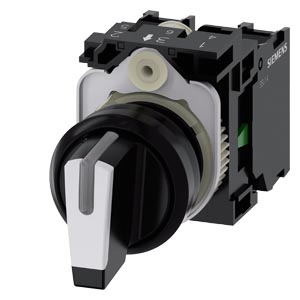

SELECTOR SWITCH, ILLUMINABLE, 22 MM, ROUND, PLASTIC, WHITE, SELECTOR SWITCH, SHORT, 3 SWITCH POSITIO
Cod produs: 3SU1100-2BL60-1NA0
Alte coduri:
upc: 804766070457
Descriere
Selector switch, illuminable
The SIRIUS ACT selector switch is designed for switching and controlling electrical loads with a durable and user-friendly structure.
Technical details:
- 22 mm, round, plastic, white
- 3 switch positions I-O-II
- Latching
- 10:30h/12h/13:30h
- With holder

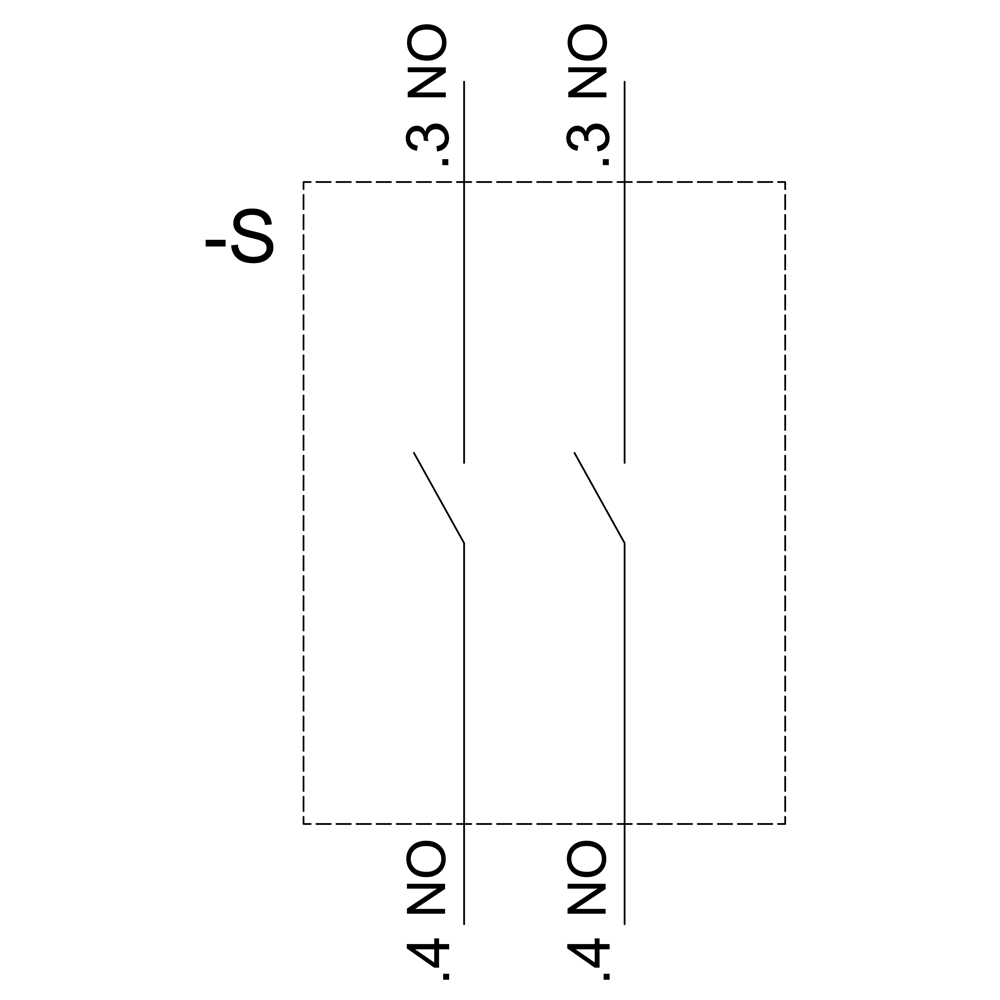

- 1 NO, 1 NO
- Screw terminal
Customer benefits:
- Unique portfolio of pushbuttons and signaling devices with global product approvals

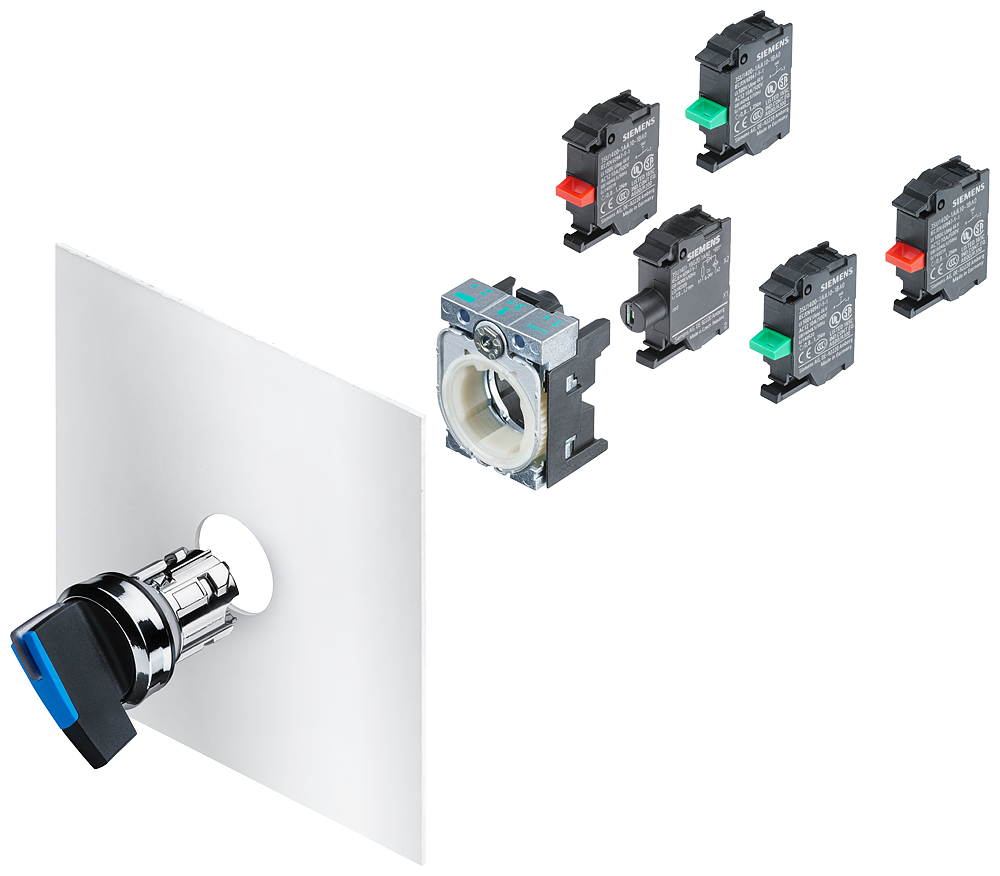

- Innovative snap-on concept for easy one-handed installation

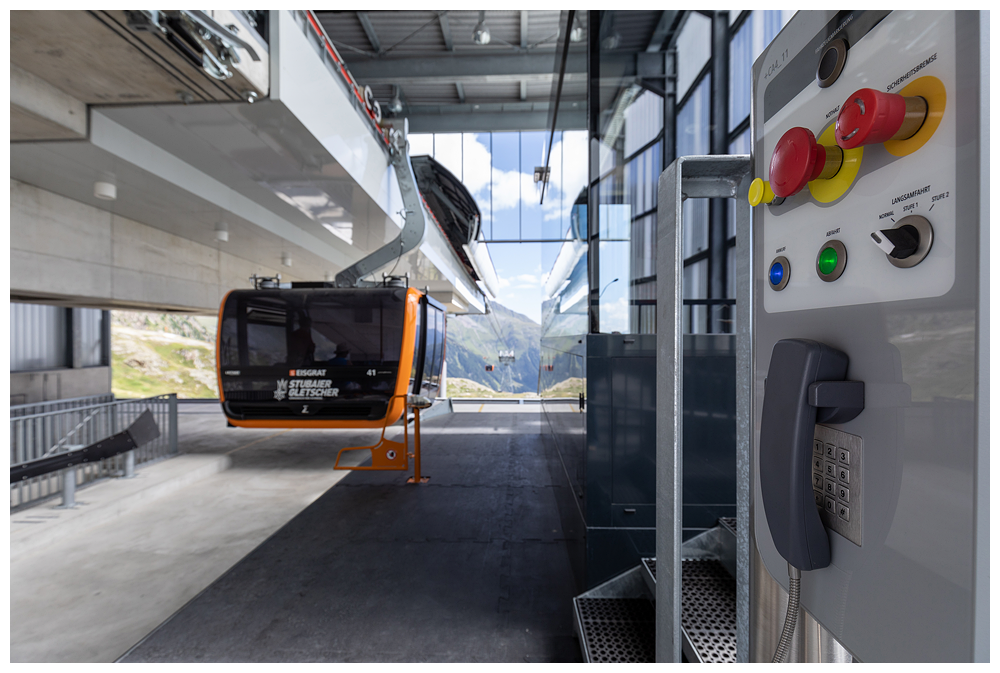

- Rugged devices suitable for use in industry and outdoors
- High degree of protection allowing cleaning with high-pressure jet
- Connection capabilities via PROFINET, AS-Interface, or IO-Link to reduce wiring time and errors
- Graphical Online Configurator for convenient support in selecting and ordering
- Extensive documentation available, including manuals and 3D data

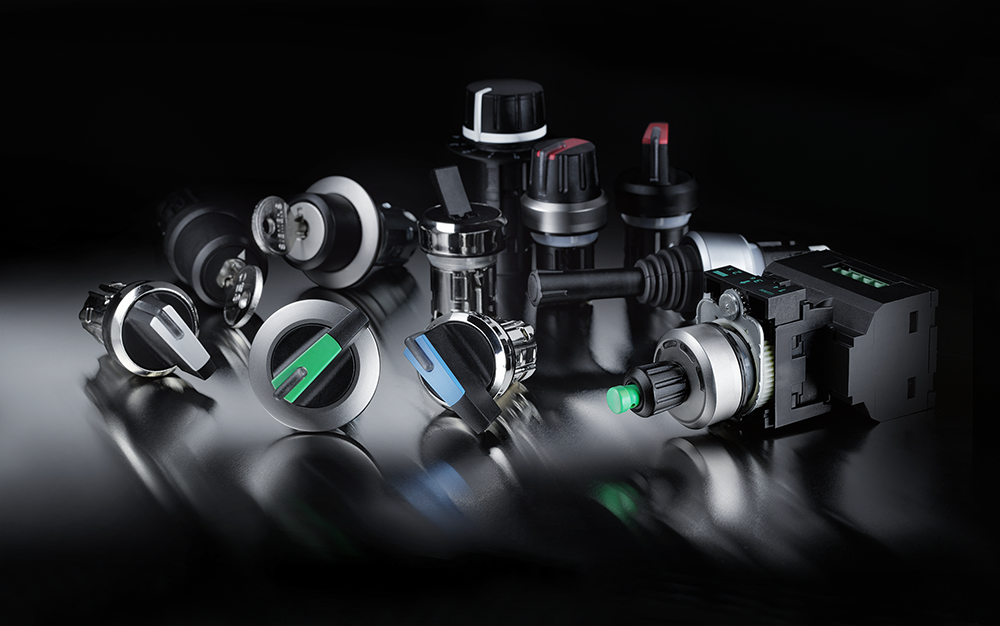

- Various versions available with multiple colors and switching positions
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With light source | No |
| With front ring | Yes |
| Type of control element | Wing knob |

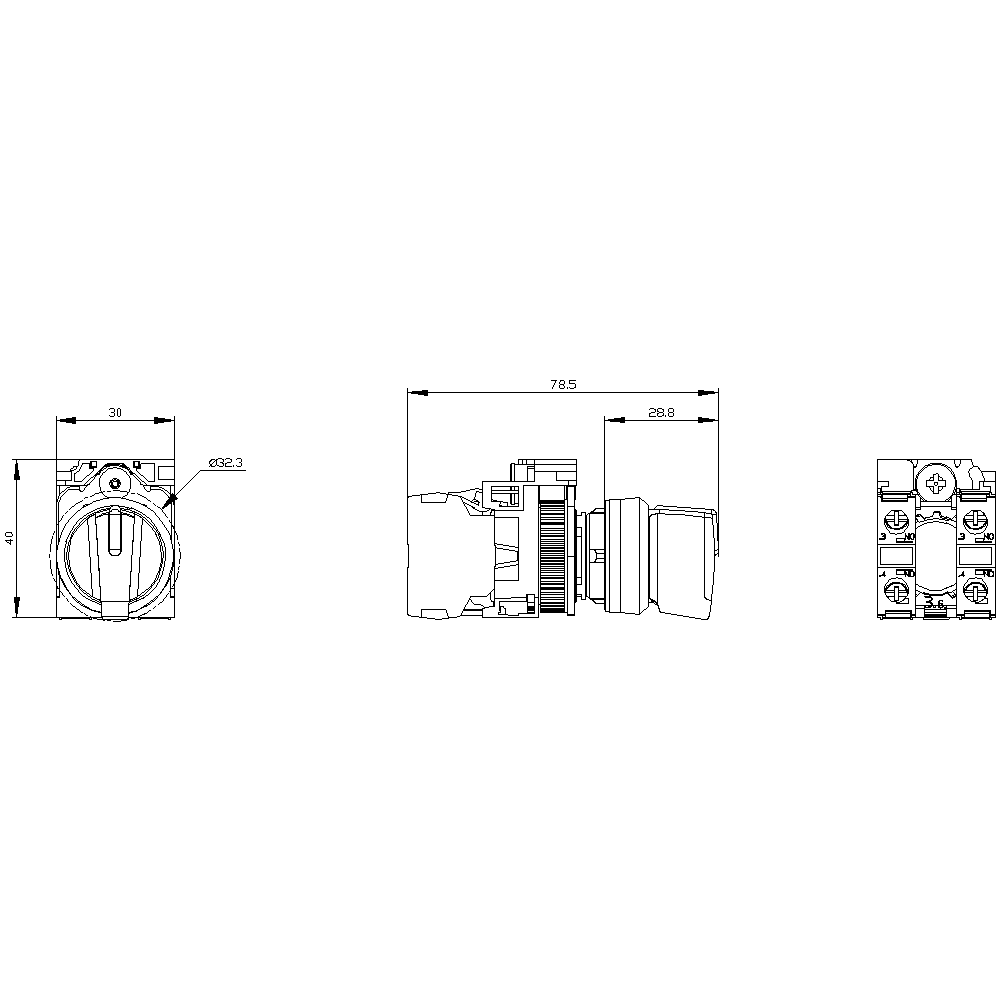

| Measurements | |
| Hole diameter | 22.3 |
| Width opening | 32.3 |
| Height opening | 28.8 |
| Colour | |
| Colour front ring | Black |
| Colour button | White |
| Options | |
| Spring-return | No |
| Switching function latching | Yes |
| Setting/control | |
| Number of switch positions | 3 |
| Protection | |
| Degree of protection (NEMA) | Other |
| Degree of protection (IP) | IP67/IP69K |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Electrical | |
| Power loss | - |
| Supply voltage | 5 |
| Application | |
| Suitable for lighting | Yes |
| Material | |
| Material front ring | Plastic |
| Package 1 | |
| weight | 0,063 |
| length | 0,1 |
| width | 0,06 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209957602 |
| Dimensions of product | |
| Weight | 0,063 |
Accesorii

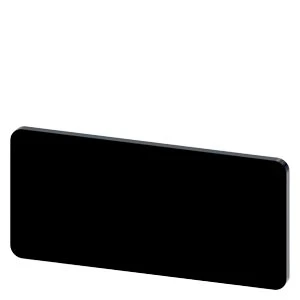

LABELING PLATE FOR SNAPPING ON OR GLUING TO LABEL HOLDER, LABEL SIZE 12.5X27MM, BLACK LABEL, WHITE F
Cod: 3SU1900-0AC16-0AA0
Siemens
LABELING PLATE FOR SNAPPING ON OR GLUING TO LABEL HOLDER, LABEL SIZE 12.5X27MM, SILVER LABEL, BLACK
Cod: 3SU1900-0AC81-0AA0
Siemens

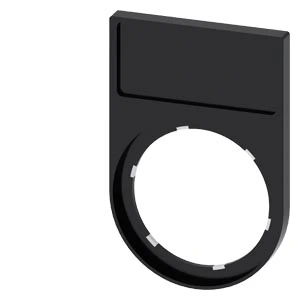

LABEL HOLDER, 22MM, FLAT, FRAME ROUNDED OFF AT THE BOTTOM BLACK, FOR LABELING PLATE 12.5 MM X 27 MM,
Cod: 3SU1900-0AG10-0AA0
Siemens

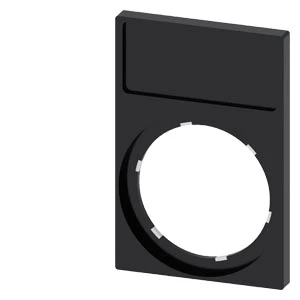

LABEL HOLDER, 22MM, FRAME RECTANGULAR AT THE BOTTOM, BLACK, FOR LABELING PLATE 12.5 MM X 27 MM, FOR
Cod: 3SU1900-0AN10-0AA0
Siemens
LABELING PLATE FOR SNAPPING ON OR GLUING TO LABEL HOLDER, LABEL SIZE 12.5X27MM, BLACK LABEL, WHITE F
Cod: 3SU1900-0AC16-0AA0
Siemens
LABELING PLATE FOR SNAPPING ON OR GLUING TO LABEL HOLDER, LABEL SIZE 12.5X27MM, SILVER LABEL, BLACK
Cod: 3SU1900-0AC81-0AA0
Siemens
LABEL HOLDER, 22MM, FLAT, FRAME ROUNDED OFF AT THE BOTTOM BLACK, FOR LABELING PLATE 12.5 MM X 27 MM,
Cod: 3SU1900-0AG10-0AA0
Siemens
LABEL HOLDER, 22MM, FRAME RECTANGULAR AT THE BOTTOM, BLACK, FOR LABELING PLATE 12.5 MM X 27 MM, FOR
Cod: 3SU1900-0AN10-0AA0
Siemens
Produse similare

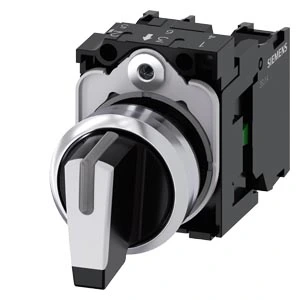

SELECTOR SWITCH, ILLUMINABLE, 22 MM, ROUND, METAL, SHINY, WHITE, SELECTOR SWITCH, SHORT, 3 SWITCH PO
Cod: 3SU1150-2BL60-1NA0
Siemens
SELECTOR SWITCH, ILLUMINABLE, 22 MM, ROUND, METAL, SHINY, WHITE, SELECTOR SWITCH, SHORT, 3 SWITCH PO
Cod: 3SU1150-2BL60-1NA0
Siemens
Altele

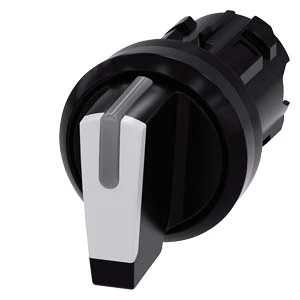

SELECTOR SWITCH, ILLUMINABLE, 22 MM, ROUND, PLASTIC, WHITE, SELECTOR SWITCH, SHORT, 3 SWITCH POSITIO
