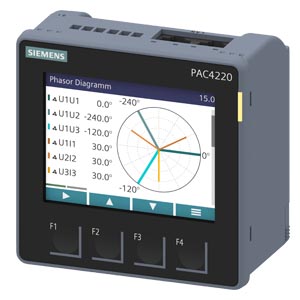

SENTRON PAC4220, Power Monitoring Device with color graphic TFT display PMD-III acc. to IEC61557-12

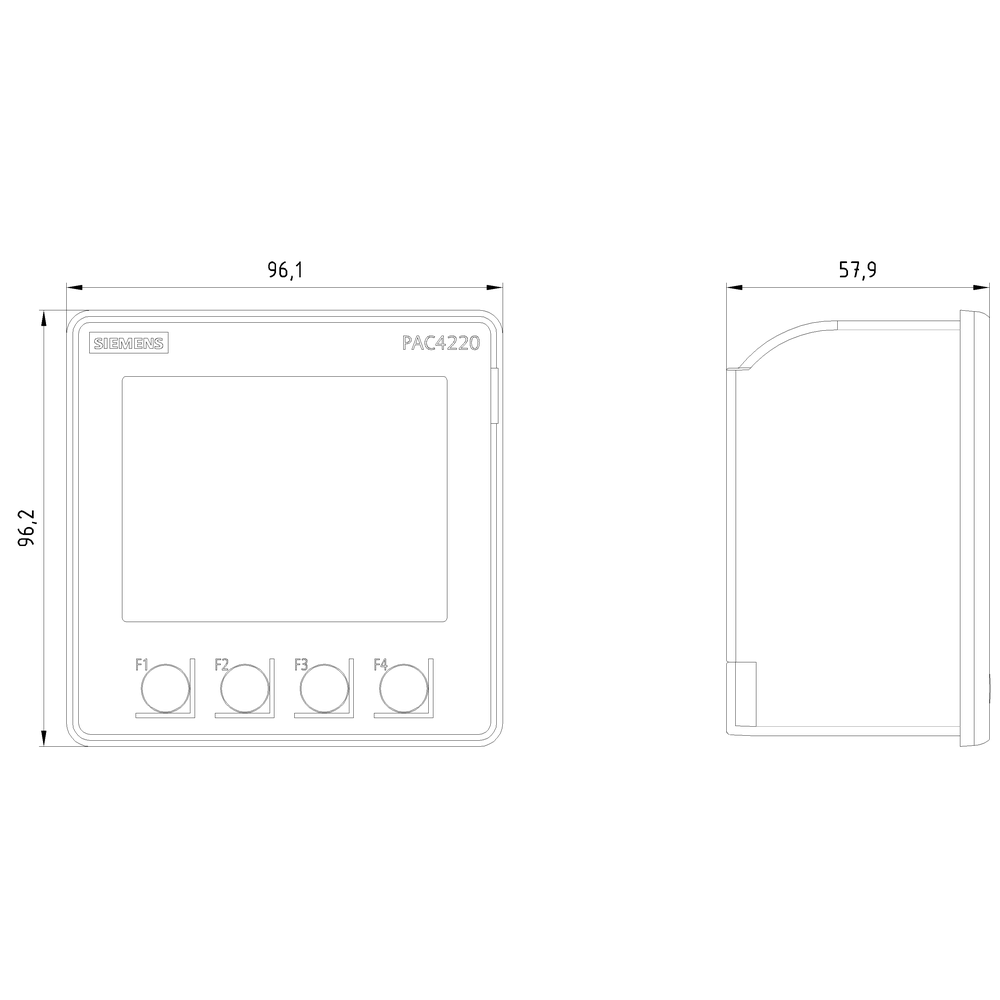

SENTRON PAC4220, Power Monitoring Device with color graphic TFT display PMD-III acc. to IEC 61557-12 active energy Class 0.2 (Class 0.2S acc. to IEC 62053-22) 96 x 96 mm, 3-phase, 45 - 65 Hz Ue rated: 690/400 V, Ie rated: x/1 A or x/5 A DC extra-low-voltage power supply unit 24 to 48 V +-25% screw terminal connection control panel instrument with measurement of electrical variables apparent / active / reactive energy / cos phi / THDu / THDi / even and odd harmonics per phase up to 64th Measuring device for power system quality measurement SENTRON 7KM PAC4220 for the precise acquisition of all important electrical measured variables in power distribution systems for the assessment of system states and power system quality in the process and manufacturing industries, but also for critical infrastructures such as hospitals and data centers. The 7KM PAC4200 network analysis measuring device enables precise, reproducible and reliable measurement of all important electrical characteristic values for infeed, outgoing feeders or individual loads. It not only provides comprehensive information about your electrical installations and power distribution, but also key measured values for assessing the status of the plant and power system quality. For further processing of the measured data, the devices are equipped with a wide range of communication options for easy integration into higher-level automation and energy management systems via Modbus TCP, PROFINET, PROFIBUS and Modbus RTU. With additionalmodules, further digital inputs and outputs, analog inputs, N conductor direct measurement, residual current measurement or RS485 gateway functionality can be implemented. The 7KM PAC measuring devices are available in different versions designed to match your requirements. SENTRON PAC - specialists in measured value acquisition.
