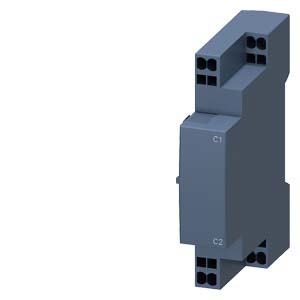

SHUNT RELEASE 90-110 V AC, 50/60 HZ, 100% ON PERIOD 70-190 V AC, 50/60 HZ, 5 S ON PERIOD 70-190 V AC
Cod produs: 3RV2902-2DF0
Alte coduri:
upc: 662643925005
Descriere
shunt release 90-110 V AC, 50/60 Hz, 100% OP 70-190 V AC, 50/60 Hz, 5 s switch-on duration 70-190 V DC, 5 s switch-on duration with spring-loaded terminal for 3RV2 motor starter protector/circuit breaker Simple, efficient and always up to date - SIRIUS modular system.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Power consumption | - |
| Rated control supply voltage AC 50 Hz | 90 |
| Rated control supply voltage AC 60 Hz | 90 |
| End value adjustment range undelayed short-circuit release | - |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Application | |
| Suitable for motor safety switch | Yes |
| Suitable for power circuit breaker | Yes |
| Suitable for off-load switch | - |
| Suitable for overload relay | - |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | - |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Spring clamp connection |
| Package 1 | |
| weight | 0,18 |
| length | 0,102 |
| width | 0,088 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209791077 |
| Dimensions of product | |
| Weight | 0,180 |
