Descriere

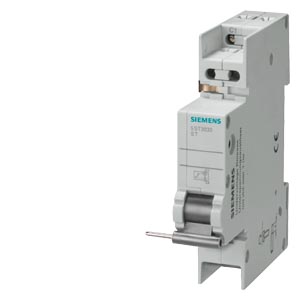

Shunt Release 110-415 V AC
The shunt release is designed for miniature circuit breakers and offers enhanced safety and installation convenience.
Technical details:
- Voltage: 110-415 V AC
- Compatible with miniature circuit breaker 5SL4, 5SY, 5SP, RCBO 5SU1, FI 5SV
- Requires handle coupler 5ST3805-1 for 5SU1
- Model: Shunt trip SENTRON 5ST3
Customer benefits:
- Universal mounting for additional components
- Easy and convenient installation and connection
- Standard touch protection ensures safety during installation
- Optimized technology for enhanced safety
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Suitable for max. number of poles main contact unit (total) | - |
| Rated switch current | - |
| Voltage type | - |
| Suitable for max. current main contact unit | - |
| Rated voltage | 230 |
| Model/type | |
| Function | - |
| Number of fault-signal switches | 0 |
| With auto test for earth leakage function | - |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as normally closed contact | 0 |
| Measurements | |
| Width in number of modular spacings | 1 |
| Other | |
| Device fitting | Universal |
| Package 1 | |
| weight | 0,098 |
| length | 0,095 |
| width | 0,08 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869187464 |
| Package 2 | |
| volume | 0,026 |
| weight | 10,26 |
| length | 0,44 |
| width | 0,325 |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 4001869187464 |
| Dimensions of product | |
| Weight | 0,098 |
