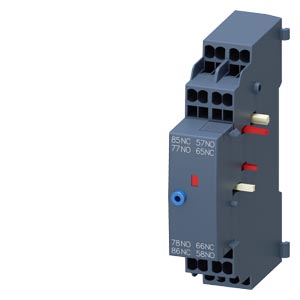

SIGNALING SWITCH FOR CIRCUIT BREAKER 3RV2 WITH SPRING-TYPE TERMINAL
Cod produs: 3RV2921-2M
Alte coduri:
upc: 662643925227
Descriere
Signaling switch for circuit breaker 3RV2 with spring-type terminal
Simple, efficient and always up to date - SIRIUS modular system.
Technical details:
- Type: Signaling switch
- Compatibility: Circuit breaker 3RV2
- Terminal type: Spring-type
Customer benefits:
- Simple and efficient operation
- Integration within the SIRIUS modular system
- Up-to-date technology
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |

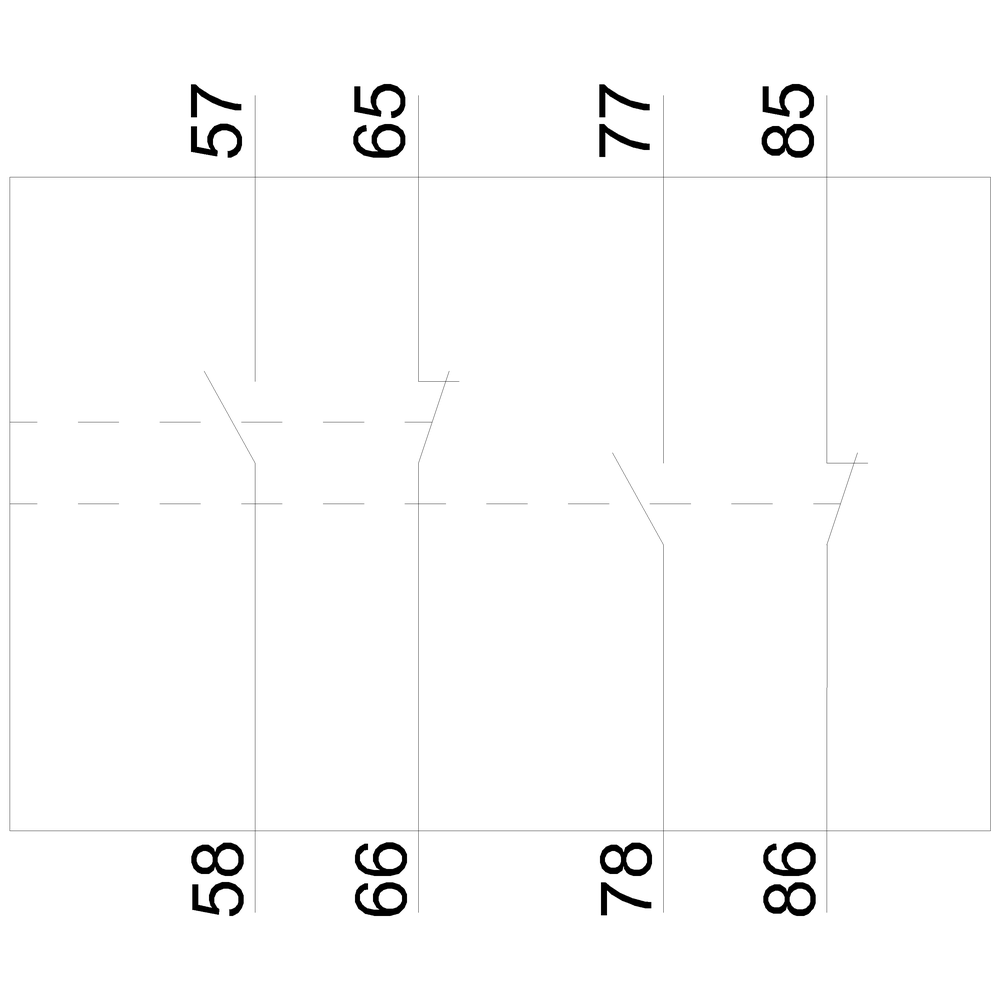

| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Spring clamp connection |
| Model/type | |
| Function | - |
| Package 1 | |
| weight | 0,096 |
| length | 0,087 |
| width | 0,042 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209737167 |
| Dimensions of product | |
| Weight | 0,096 |
