SIMATIC DP, Electronics module,f. ET200S, 2AI Standard I-2DMU
Cod produs: 6ES7134-4GB01-0AB0
Descriere
*** Piesă de schimb *** SIMATIC DP, modul electronic f. ET200S, 2AI Standard I-2DMU 15 mm lățime, 4.. 20mA; 13 biți pentru traductor cu 2 fire Timp de ciclu 65 ms/canal cu LED SF (defecțiune de grup) SIMATIC ET 200S este un sistem I/O distribuit, modular și scalabil, special conceput pentru instalarea în cutii de comandă mici, în apropierea mașinii. Modulele pot fi conectate direct la un ET 200S IM cu funcționalitate CPU sau conectate la un controler central prin PROFINET sau PROFIBUS. SIMATIC ET 200S poate fi extins cu până la 64 de module I/O, care pot fi inserate în orice combinație. Sistemul oferă o gamă completă de module. Multe module sunt disponibile și cu o mare varietate de caracteristici, care îmbunătățesc considerabil scalabilitatea în ceea ce privește funcționalitatea și prețul. Astfel, pe lângă modulele cu funcții standard (ST), sunt disponibile și module cu o gamă extinsă de funcții și diagnostice (HF High Feature/ HS High Speed). Avantajul sistemului ET 200S constă în ușurința de aplicare, cum ar fi capacitatea de a schimba modulele și cutiile de borne în timpul funcționării. Disponibilitatea și productivitatea mașinii sunt considerabil crescute datorită așa-numitei schimbări la cald.
Documente
Specificatii
| Electrical | |
| Power consumption | - |
| Voltage type (supply voltage) | DC |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 20.4 |
| Protection | |
| Degree of protection (NEMA) | - |
| Certified for UL hazardous location group E (metal dusts) | - |
| Explosion safety category for dust | - |
| Explosion safety category for gas | - |
| Degree of protection (IP) | IP20 |
| Approval/certification | |
| Certified for UL hazardous location class I | - |
| Certified for UL hazardous location class II | - |
| Certified for UL hazardous location class III | - |
| SIL according to IEC 61508 | - |
| Certified for UL hazardous location group A (acetylene) | - |
| Certified for UL hazardous location group B (hydrogen) | - |
| Certified for UL hazardous location group D (propane) | - |
| Certified for UL hazardous location group C (ethylene) | - |
| Certified for UL hazardous location group F (carbonaceous dusts) | - |
| Certified for UL hazardous location division 2 | - |
| Certified for UL hazardous location division 1 | - |
| Certified for UL hazardous location group G (non-conductive dusts) | - |
| Communication | |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces other | 0 |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for SERCOS | No |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for EtherCAT | - |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for ASI | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for CAN | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Mounting/installation | |
| Wall mounting/direct mounting | Yes |
| Suitable for rail mounting | Yes |
| Front built-in possible | Yes |
| Options | |
| Analogue outputs configurable | - |
| Analogue inputs configurable | Yes |
| System accessory | Yes |
| Mobile communications standard 3G (UMTS) | No |
| Radio standard GSM | No |
| Radio standard GPRS | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Radio standard Bluetooth | No |
| Rack-assembly possible | No |
| Output, voltage | - |
| Performance | |
| Performance level according to EN ISO 13849-1 | - |
| Connection | |
| Fieldbus connection over separate bus coupler possible | Yes |
| Type of electric connection | - |
| Input, current | Yes |
| Input, resistor | No |
| Input, thermocouple | No |
| Input, resistance thermometer | No |
| Input signal, configurable | Yes |
| Output, current | - |
| Number of analogue inputs | 2 |
| Output signal configurable | - |
| Number of analogue outputs | 0 |

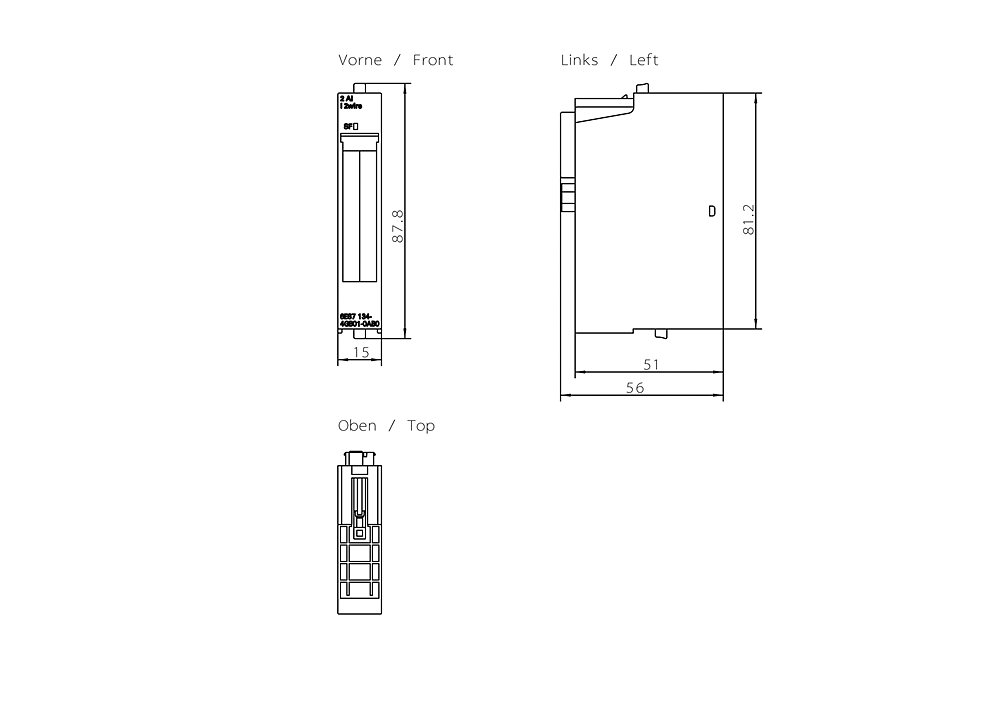

| Measurements | |
| Width | 15 |
| Depth | 52 |
| Height | 81 |
| Setting/control | |
| Input, voltage | No |
| Other | |
| Appendant operation agent (Ex ib) | No |
| Appendant operation agent (Ex ia) | No |
| Resolution of the analogue inputs | 13 |
| Resolution of the analogue outputs | - |
| Application | |
| Suitable for safety functions | No |
| Package 1 | |
| weight | 0,044 |
| length | 0,09 |
| width | 0,06 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4025515072423 |
| Dimensions of product | |
| Weight | 0,044 |
