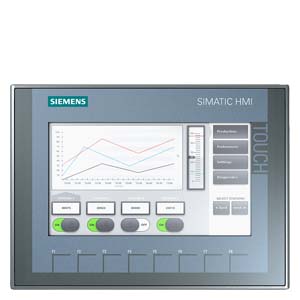

SIMATIC HMI, KTP700 Basic DP, Basic Panel, Key/touch operation, 7" TFT display, 65536 colors, PROFIB
Cod produs: 6AV2123-2GA03-0AX0
Alte coduri:
upc: 887621874100
Descriere
SIMATIC HMI, KTP700 Basic DP, panou de bază, operare cu taste/atingere, afișaj TFT 7, 65536 culori, interfață PROFIBUS, configurabil începând cu WinCC Basic V13/ STEP 7 Basic V13, conține software open-source, care este furnizat gratuit, a se vedea CD-ul atașat Panourile de bază sunt perfecte pentru implementarea rentabilă a sarcinilor simple de vizualizare la nivel de mașină. Caracteristicile și funcționalitățile lor de bază, precum și prețul deosebit de atractiv le fac dispozitive perfecte pentru începători.
Documente
Fisa tehnica
Altele
-
SIMATIC HMI, KTP700 Basic DP, Basic Panel, Key/touch operation, 7" TFT display, 65536 colors, PROFIB
-
SIMATIC HMI, KTP700 Basic DP, Basic Panel, Key/touch operation, 7" TFT display, 65536 colors, PROFIB
-
SIMATIC HMI, KTP700 Basic DP, Basic Panel, Key/touch operation, 7" TFT display, 65536 colors, PROFIB
Alte surse
-
SIMATIC HMI, KTP700 Basic DP, Basic Panel, Key/touch operation, 7" TFT display, 65536 colors, PROFIB
-
SIMATIC HMI, KTP700 Basic DP, Basic Panel, Key/touch operation, 7" TFT display, 65536 colors, PROFIB
-
SIMATIC HMI, KTP700 Basic DP, Basic Panel, Key/touch operation, 7" TFT display, 65536 colors, PROFIB
-
https://www.industry-mobile-support.siemens-info.com/#/en/product/6AV21232GA030AX0
-
https://mall.industry.siemens.com/mall/en/ro/Catalog/Product/6AV21232GA030AX0
-
https://www.industry-mobile-support.siemens-info.com/#/en/searchArticle/6AV21232GA030AX0/cert
-
https://www.industry-mobile-support.siemens-info.com/#/en/searchArticle/6AV21232GA030AX0/man
-
https://www.industry-mobile-support.siemens-info.com/#/en/searchArticle/6AV21232GA030AX0/cat
-
https://mall.industry.siemens.com/mall/en/ro/Catalog/Product/6AV21232GA030AX0
Specificatii
| Electrical | |
| Power consumption | - |
| Voltage type (supply voltage) | DC |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 19.2 |
| Approval/certification | |
| Certified for UL hazardous location class I | - |
| Certified for UL hazardous location class II | - |
| Certified for UL hazardous location class III | - |
| Certified for UL hazardous location group A (acetylene) | - |
| Certified for UL hazardous location group B (hydrogen) | - |
| Certified for UL hazardous location group D (propane) | - |
| Certified for UL hazardous location group C (ethylene) | - |
| Certified for UL hazardous location group F (carbonaceous dusts) | - |
| Certified for UL hazardous location division 2 | - |
| Certified for UL hazardous location division 1 | - |
| Certified for UL hazardous location group G (non-conductive dusts) | - |
| Protection | |
| Degree of protection (NEMA), front side | - |
| Certified for UL hazardous location group E (metal dusts) | - |
| Degree of protection (IP), front side | IP65 |
| Communication | |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-422 | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for SERCOS | No |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for EtherCAT | - |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| With SW interfaces | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for ASI | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for CAN | No |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for KNX | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Mounting/installation | |
| Wall mounting/direct mounting | No |
| Suitable for rail mounting | No |
| Model/type | |
| Number of grey-scales/blue-scales of display | 0 |
| With numeric keyboard | Yes |
| With alpha numeric keyboard | Yes |
| With message indication | Yes |
| Number of buttons with LED | 0 |
| With message system (incl. buffer and confirmation) | Yes |
| Type of display | - |
| With recipes | Yes |
| With printer output | No |
| Other | |
| Number of pixels, vertical | 480 |
| Touch technology | Resistive touch |
| Number of password levels | 50 |
| Number of online languages | 10 |
| Number of pixels, horizontal | 800 |
| Setting/control | |
| Number of function buttons, programmable | 8 |
| Number of system buttons | 0 |
| Measurements | |
| Built-in depth | 39 |
| Screen diagonal | 7 |
| Width of the front | 214 |
| Height of the front | 158 |
| Performance | |
| Usable project memory/user memory | 10000 |
| Options | |
| Process default value (input) possible | Yes |
| Mobile communications standard 3G (UMTS) | No |
| Process value representation (output) possible | Yes |
| Radio standard GSM | No |
| Radio standard GPRS | No |
| Additional software components, loadable | No |
| Radio standard WLAN 802.11 | No |
| Colour display | Yes |
| IO link master | No |
| Radio standard Bluetooth | No |
| Operating conditions | |
| Operating temperature | 0 |
| Colour | |
| Number of colours of the display | 65536 |
| Application | |
| Suitable for safety functions | No |
| Package 1 | |
| weight | 0,988 |
| length | 0,279 |
| width | 0,205 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4034106029227 |
| Dimensions of product | |
| Weight | 0,988 |
