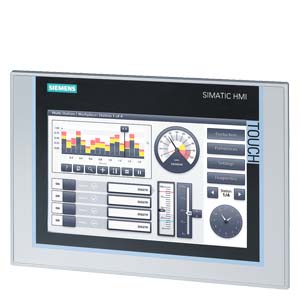

SIMATIC HMI TP900 Comfort, Comfort Panel, touch operation, 9" widescreen TFT display, 16 million col
Cod produs: 6AV2124-0JC01-0AX0
Alte coduri:
upc: 040892686043
Descriere
Simatic Hmi Tp900 Comfort
The SIMATIC HMI TP900 Comfort is designed for implementing high-performance visualization tasks at machine-level.
Technical details:
- Comfort Panel
- Touch operation
- 9 widescreen TFT display
- 16 million colors
- PROFINET interface
- MPI/PROFIBUS DP interface
- 12 MB configuration memory
- Windows CE 6.0
- Configurable from WinCC Comfort V11
Customer benefits:
- The Comfort Panels are designed for implementing high-performance visualization tasks at machine-level.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Power consumption | - |
| Voltage type (supply voltage) | DC |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 19.2 |
| Approval/certification | |
| Certified for UL hazardous location class I | - |
| Certified for UL hazardous location class II | - |
| Certified for UL hazardous location class III | - |
| Certified for UL hazardous location group A (acetylene) | - |
| Certified for UL hazardous location group B (hydrogen) | - |
| Certified for UL hazardous location group D (propane) | - |
| Certified for UL hazardous location group C (ethylene) | - |
| Certified for UL hazardous location group F (carbonaceous dusts) | - |
| Certified for UL hazardous location division 2 | - |
| Certified for UL hazardous location division 1 | - |
| Certified for UL hazardous location group G (non-conductive dusts) | - |
| Protection | |
| Degree of protection (NEMA), front side | - |
| Certified for UL hazardous location group E (metal dusts) | - |
| Degree of protection (IP), front side | IP65 |
| Communication | |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces USB | 2 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for SERCOS | No |
| Number of interfaces PROFINET | 1 |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for EtherCAT | - |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | Yes |
| With SW interfaces | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | Yes |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for ASI | No |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for CAN | No |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for KNX | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Mounting/installation | |
| Wall mounting/direct mounting | No |
| Suitable for rail mounting | No |
| Model/type | |
| Number of grey-scales/blue-scales of display | 0 |
| With numeric keyboard | Yes |
| With alpha numeric keyboard | Yes |
| With message indication | Yes |
| Number of buttons with LED | 0 |
| With message system (incl. buffer and confirmation) | Yes |
| Type of display | TFT |
| With recipes | Yes |
| With printer output | Yes |
| Other | |
| Number of pixels, vertical | 480 |
| Touch technology | Resistive touch |
| Number of password levels | 50 |
| Number of online languages | 32 |
| Number of pixels, horizontal | 800 |
| Setting/control | |
| Number of function buttons, programmable | 0 |
| Number of system buttons | 0 |
| Measurements | |
| Built-in depth | 62.7 |
| Screen diagonal | 9 |
| Width of the front | 274 |
| Height of the front | 190 |
| Performance | |
| Usable project memory/user memory | 12000 |
| Options | |
| Process default value (input) possible | Yes |
| Mobile communications standard 3G (UMTS) | No |
| Process value representation (output) possible | Yes |
| Radio standard GSM | No |
| Radio standard GPRS | No |
| Additional software components, loadable | Yes |
| Radio standard WLAN 802.11 | No |
| Colour display | Yes |
| IO link master | No |
| Radio standard Bluetooth | No |
| Operating conditions | |
| Operating temperature | 0 |
| Colour | |
| Number of colours of the display | 16777216 |
| Application | |
| Suitable for safety functions | No |
| Package 1 | |
| weight | 2,482 |
| length | 0,509 |
| width | 0,36 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4025515079019 |
| Dimensions of product | |
| Weight | 2,482 |
