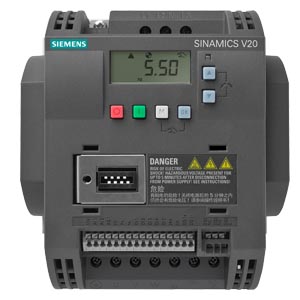

SINAMICS V20 380-480 V 3 AC -15/+10% 47-63 Hz rated power 7.5 kW with 150% overload for 60 sec.
Cod produs: 6SL3210-5BE27-5UV1
Alte coduri:
upc: 195125744967
Descriere
SINAMICS V20 380-480 V 3 AC -15/+10% 47-63 Hz rated power 7.5 kW with 150% overload for 60 s. unfiltered I/O: 4 DI, 2 DO, 2 AI, 1 AO fieldbus: USS/Modbus RTU with built-in BOP protection: IP20/ UL open size: C 184x182x169 (WxHxD)
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Specificatii
| Electrical | |
| Power consumption | - |
| Nominal output current I2N | 16.5 |
| Max. output voltage | 480 |
| Mains voltage | 380 |
| Mains frequency | - |
| Relative symmetric net voltage tolerance | -15 |
| Protection | |
| Degree of protection (NEMA) | - |
| Degree of protection (IP) | - |
| Communication | |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces USB | 0 |
| With optical interface | No |
| Number of HW-interfaces other | 1 |
| Supporting protocol for SERCOS | No |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for BACnet | - |
| Supporting protocol for ASI | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for CAN | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Model/type | |
| Type of converter | U converter |
| With control element | - |
| Other | |
| Max. output frequency | 550 |
| Relative symmetric net frequency tolerance | -5 |
| Connection | |
| Number of phases input | 3 |
| With PC connection | No |
| Number of phases output | 3 |
| Number of digital inputs | 4 |
| Number of digital outputs | - |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 1 |
| Measurements | |
| Width | 184 |
| Depth | 169 |
| Height | 182 |
| Performance | |
| Max. output at quadratic load at rated output voltage | 7.5 |
| Max. output at linear load at rated output voltage | 7.5 |
| Options | |
| Integrated breaking resistance | Yes |
| Application | |
| Application in industrial area permitted | Yes |
| Application in domestic- and commercial area permitted | No |
| Setting/control | |
| 4-quadrant operation possible | No |
| Package 1 | |
| weight | 2,8 |
| length | 0,29 |
| width | 0,27 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4034106466701 |
| Dimensions of product | |
| Weight | 2,500 |
