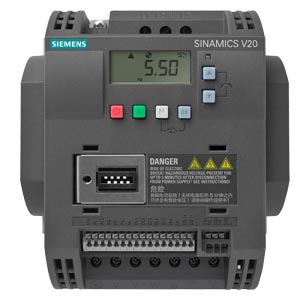

SINAMICS V20 380-480 V 3 AC -15/+10% 47-63Hz rated power 3.0 kW with 150% overload for 60 sec.
Cod produs: 6SL3210-5BE23-0CV1
Descriere
SINAMICS V20
The SINAMICS V20 is a compact and efficient converter designed for industrial and commercial applications, offering a rated power of 3.0 kW and various features for energy efficiency and ease of operation.
Technical details:
- Voltage: 380-480 V 3 AC -15/+10%
- Frequency: 47-63Hz
- Rated power: 3.0 kW with 150% overload for 60 sec.
- Integrated filter: C3
- I/O: 4 DI, 2 DO, 2 AI, 1 AQ
- Fieldbus: USS/MODBUS RTU with built-in BOP
- Protection: IP20/ UL
- Open size: B 140x160x165 (WxHxD)
- Integrated braking unit
Customer benefits:
- Short commissioning times and ease of operation.
- Robust design and cost efficiency.
- Can be operated straight out-of-the-box without requiring additional modules.
- Increased energy efficiency through a control technique that optimally reduces flux.
- Displays actual energy consumption and has additional integrated energy-saving functions.
- Keep-Running mode permits stable operation under difficult and fluctuating line supply conditions.
- Facilitates simple system configuration with predefined macros and preconfigured function blocks from TIA Portal.
- Available in nine frame sizes in a power range of 0.12 kW to 30 kW for various operating conditions.
- Technical and cost-effective alternative to the Micromaster 420 frequency converter.
Disclaimer: Generated by AI.
Documente
Specificatii
| Electrical | |
| Power consumption | - |
| Nominal output current I2N | 7.3 |
| Max. output voltage | 480 |
| Mains voltage | 380 |
| Mains frequency | - |
| Relative symmetric net voltage tolerance | -15 |
| Protection | |
| Degree of protection (NEMA) | - |
| Degree of protection (IP) | - |
| Communication | |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces USB | 0 |
| With optical interface | No |
| Number of HW-interfaces other | 1 |
| Supporting protocol for SERCOS | No |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for BACnet | - |
| Supporting protocol for ASI | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for CAN | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Model/type | |
| Type of converter | U converter |
| With control element | - |
| Other | |
| Max. output frequency | 550 |
| Relative symmetric net frequency tolerance | -5 |
| Connection | |
| Number of phases input | 3 |
| With PC connection | No |
| Number of phases output | 3 |
| Number of digital inputs | 4 |
| Number of digital outputs | - |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 1 |
| Measurements | |
| Width | 140 |
| Depth | 164.5 |
| Height | 160 |
| Performance | |
| Max. output at quadratic load at rated output voltage | 3 |
| Max. output at linear load at rated output voltage | 3 |
| Options | |
| Integrated breaking resistance | Yes |
| Application | |
| Application in industrial area permitted | Yes |
| Application in domestic- and commercial area permitted | No |
| Setting/control | |
| 4-quadrant operation possible | No |
| Package 1 | |
| weight | 2,12 |
| length | 0,2 |
| width | 0,203 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4034106466572 |
| Dimensions of product | |
| Weight | 1,810 |
