Descriere

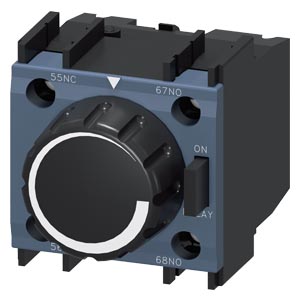

Pneumatically time-delayed auxiliary switch
Designed for ON-delay timing of 1-30 seconds, this switch features 1 NO and 1 NC configuration for mounting to contactors 3RT202.
Technical details:
- Type: Pneumatically time-delayed auxiliary switch
- Function: ON-delay
- Timing range: 1-30 s

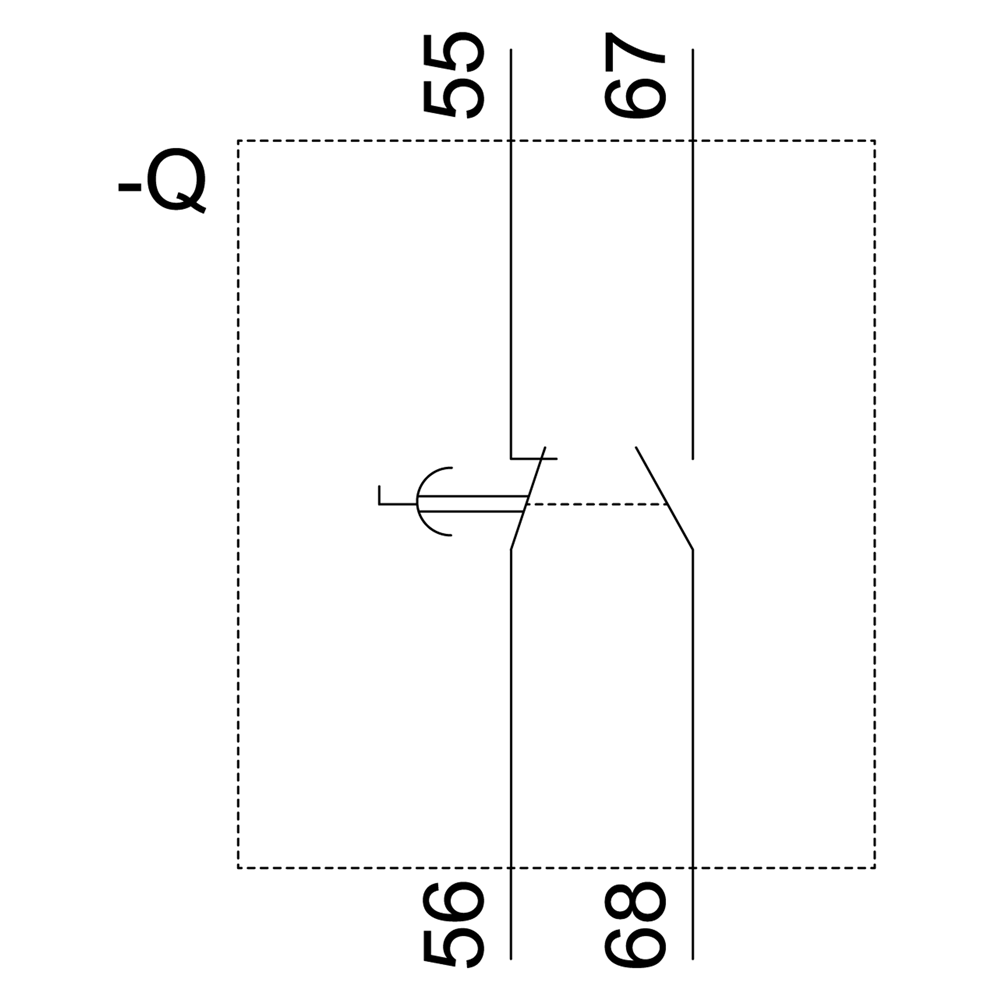

- Configuration: 1 NO + 1 NC
- Compatible with: Contactors 3RT202
Customer benefits:
- Simple and efficient design.
- Part of the SIRIUS modular system for versatility and modernity.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Switching function | - |
| Connection | |
| Number of contacts as change-over contact | - |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Other | |
| Setting time | 1 |
| Operating principle | Electronic |
| Package 1 | |
| weight | 0,09 |
| length | 0,075 |
| width | 0,055 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4047621078434 |
| Dimensions of product | |
| Weight | 0,090 |
