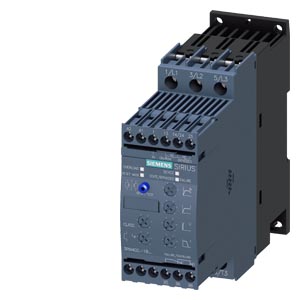

SIRIUS SOFT STARTER S0 32 A, 15 KW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC SCREW TERMINALS
Cod produs: 3RW4027-1BB14
Descriere
SIRIUS soft starter S0 32 A
The SIRIUS soft starter S0 32 A is designed for soft starting and ramp-down of three-phase asynchronous motors, providing reliable performance and enhanced motor protection.
Technical details:
- 15 kW/400 V
- 40 °C
- 200-480 V AC, 110-230 V AC/DC
- Screw terminals

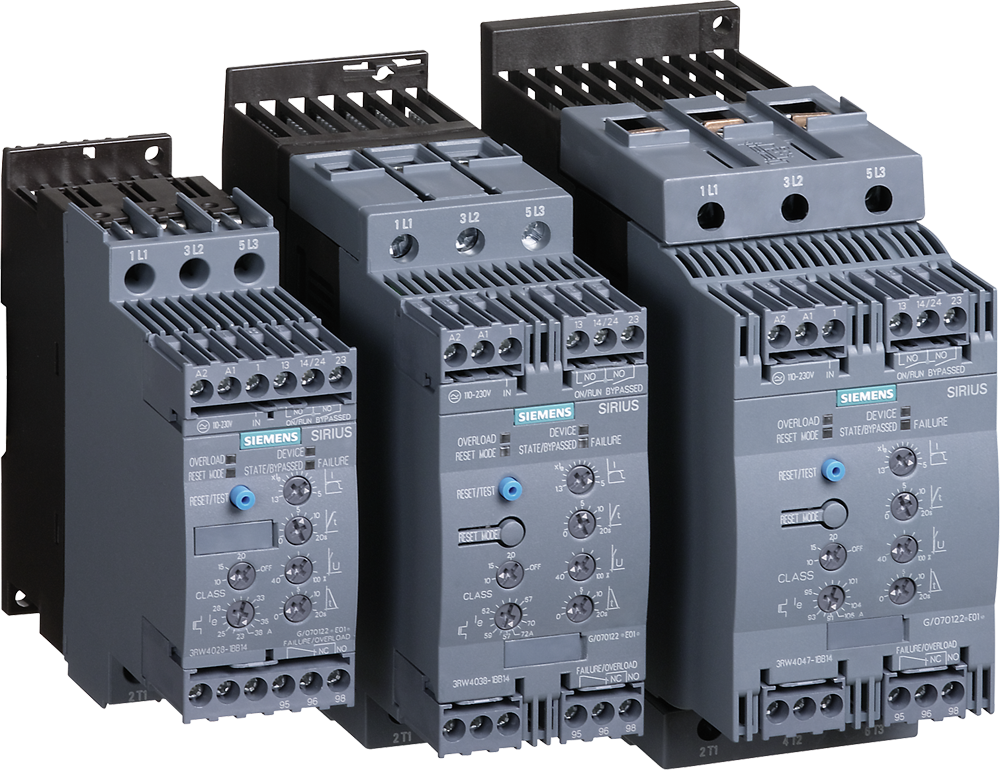

- Soft starter SIRIUS 3RW40 for standard applications
- Integrated bypass for compact construction
- Intelligent monitoring functions
- Worldwide approvals (e.g. IEC and UL/CSA)
- Available for supply systems up to 690 V
- Versions with 24 V control supply voltage available
- Optional link module for circuit breakers
- Optional fan for even more compact design
Customer benefits:
- Soft starting and ramp-down of motors
- Reduction of current peaks
- Prevention of supply voltage fluctuations during startup
- Reduction of load on the power supply network
- Reduction of mechanical load in the drive
- Considerable saving of space and wiring compared to star-delta starters and frequency converters
- Maintenance-free switching and easy handling
- Quick and easy fault clearing with integrated remote reset
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 110 |
| Rated control supply voltage AC 60 Hz | 110 |
| Rated operating voltage Ue | 200 |
| Rated power three-phase motor, inline, at 400 V | 15 |
| Rated power three-phase motor, inside delta, at 230 V | - |
| Voltage type for actuating | AC/DC |
| Rated power three-phase motor, inline, at 230 V | 7.5 |
| Rated power three-phase motor, inside delta, at 400 V | - |
| Rated control supply voltage DC | 110 |
| Rated operation current Ie at 40 °C Tu | 32 |
| Model/type | |
| Function | Single direction |
| With display | No |
| Protection | |
| Degree of protection (NEMA) | - |
| Integrated motor overload protection | Yes |
| Degree of protection (IP) | IP20 |
| Operating conditions | |
| Rated surrounding temperature without derating | 40 |
| Setting/control | |
| Torque control | No |
| Options | |
| Internal bypass | Yes |
| Other | |
| Release class | Other |
| Package 1 | |
| weight | 0,706 |
| length | 0,183 |
| width | 0,153 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209691728 |
| Dimensions of product | |
| Weight | 0,706 |
