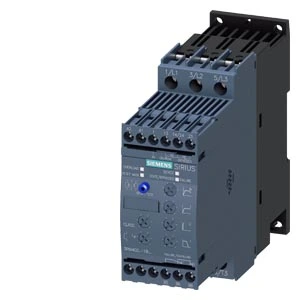

SIRIUS SOFT STARTER S0 32 A, 15 KW/400 V, 40 °C 200-480 V AC, 24 V AC/DC SCREW TERMINALS
Cod produs: 3RW4027-1BB04
Alte coduri:
upc: 754554958583
Descriere
SIRIUS Soft Starter S0 32 A
The SIRIUS soft starter S0 32 A is designed for the soft starting and ramp-down of three-phase asynchronous motors, enhancing performance and reliability in demanding applications.
Technical details:
- Rated current: 32 A
- Motor power: 15 kW/400 V
- Operating temperature: 40 °C
- Voltage range: 200-480 V AC
- Control voltage: 24 V AC/DC
- Terminal type: Screw terminals
- Integrated bypass for compact construction
- Intelligent monitoring functions for overheating and overload protection
- Remote reset capability for fault clearance
- Worldwide approvals (e.g. IEC and UL/CSA), suitable for hazardous areas (ATEX or IEC Ex)
Customer benefits:
- Soft starting to reduce current peaks
- Prevention of supply voltage fluctuations during startup
- Reduction of load on the power supply network
- Reduction of mechanical load in the drive
- Considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters
- Maintenance-free switching and extremely easy handling

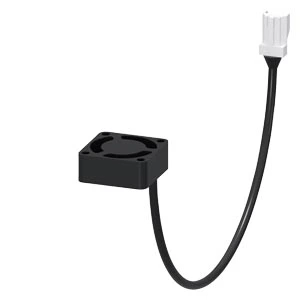

- Optional fan for an even more compact design in the control cabinet
- Simple, efficient, and always up to date with the SIRIUS modular system
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 24 |
| Rated control supply voltage AC 60 Hz | 24 |
| Rated operating voltage Ue | 200 |
| Rated power three-phase motor, inline, at 400 V | 15 |
| Rated power three-phase motor, inside delta, at 230 V | - |
| Voltage type for actuating | AC/DC |
| Rated power three-phase motor, inline, at 230 V | 7.5 |
| Rated power three-phase motor, inside delta, at 400 V | - |
| Rated control supply voltage DC | 24 |
| Rated operation current Ie at 40 °C Tu | 32 |
| Model/type | |
| Function | Single direction |
| With display | No |
| Protection | |
| Degree of protection (NEMA) | - |
| Integrated motor overload protection | Yes |
| Degree of protection (IP) | IP20 |
| Operating conditions | |
| Rated surrounding temperature without derating | 40 |
| Setting/control | |
| Torque control | No |
| Options | |
| Internal bypass | Yes |
| Other | |
| Release class | Other |
| Package 1 | |
| weight | 0,706 |
| length | 0,18 |
| width | 0,151 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209691704 |
| Dimensions of product | |
| Weight | 0,706 |
Accesorii
LINK MODULE FOR SCREW TERMINAL ELECTRICAL AND MECHANICAL FOR 3RV2.1/3RV2.2-3RT2.2 DC OPERATION OR SO
Cod: 3RA2921-1BA00
Siemens
LABELING PLATES 20X7 MM TI - GRAY BOX CONTAINS 17 MATS ON MATS 20 LABELS PER MAT
Cod: 3RT2900-1SB20
Siemens
LINK MODULE FOR SCREW TERMINAL ELECTRICAL AND MECHANICAL FOR 3RV2.1/3RV2.2-3RT2.2 DC OPERATION OR SO
Cod: 3RA2921-1BA00
Siemens
LABELING PLATES 20X7 MM TI - GRAY BOX CONTAINS 17 MATS ON MATS 20 LABELS PER MAT
Cod: 3RT2900-1SB20
Siemens
Produse similare
SIRIUS SOFT STARTER S0 32 A, 18.5 K KW/500 V, 40 °C 400-600 V AC, 24 V AC/DC SCREW TERMINALS
Cod: 3RW4027-1BB05
Siemens
SIRIUS SOFT STARTER S0 32 A, 15 KW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC SCREW TERMINALS
Cod: 3RW4027-1BB14
Siemens
SIRIUS SOFT STARTER S0 32 A, 15 KW/400 V, 40 °C 200-480 V AC, 24 V AC/DC SCREW TERMINALS THERMISTOR
Cod: 3RW4027-1TB04
Siemens
SIRIUS SOFT STARTER S0 32 A, 18.5 K KW/500 V, 40 °C 400-600 V AC, 24 V AC/DC SCREW TERMINALS THERMI
Cod: 3RW4027-1TB05
Siemens

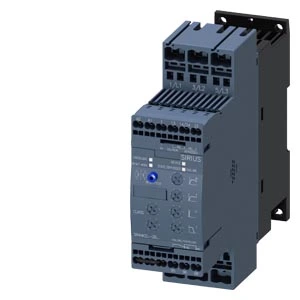

SIRIUS SOFT STARTER S0 32 A, 15 KW/400 V, 40 °C 200-480 V AC, 24 V AC/DC SPRING-TYPE TERMINALS
