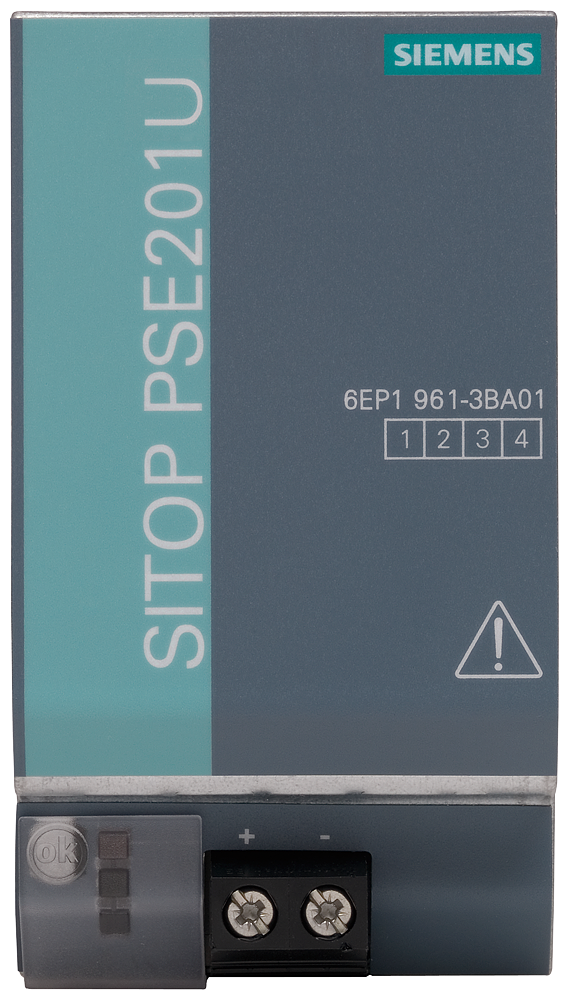

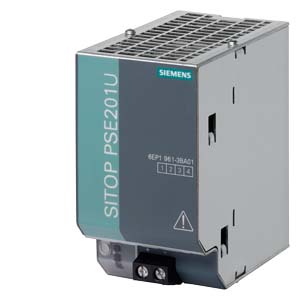

SITOP PSE201U buffer module Buffer time 100 ms to 10 s depending on load current *Ex approval no lon
Cod produs: 6EP1961-3BA01
Descriere
SITOP PSE201U buffer module buffer time 100 ms to 10 s depending on load current The SITOP PSE201U buffer module bridges short-term power failures up to the range of seconds and ensures uninterrupted plant operation. This supplementary module can be used with all 24 V power supply units of the SITOP smart or SITOP modular product lines. The buffer module is equipped with maintenance-free capacitors as energy storage and automatically takes over the 24 V supply in the event of a power supply failure. Signaling of supply voltage gt; 20.5 V via LED on device. To extend the buffer time (max.10 s), up to 8 buffer modules can be connected in parallel. The SITOP DC UPS modules offer protection in case of long-term power failures. The maintenance-free DC UPS with capacitors supplies a reliable 24 V in the time range of minutes, and the DC UPS with battery modules in the time range of hours. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.
Documente
Specificatii

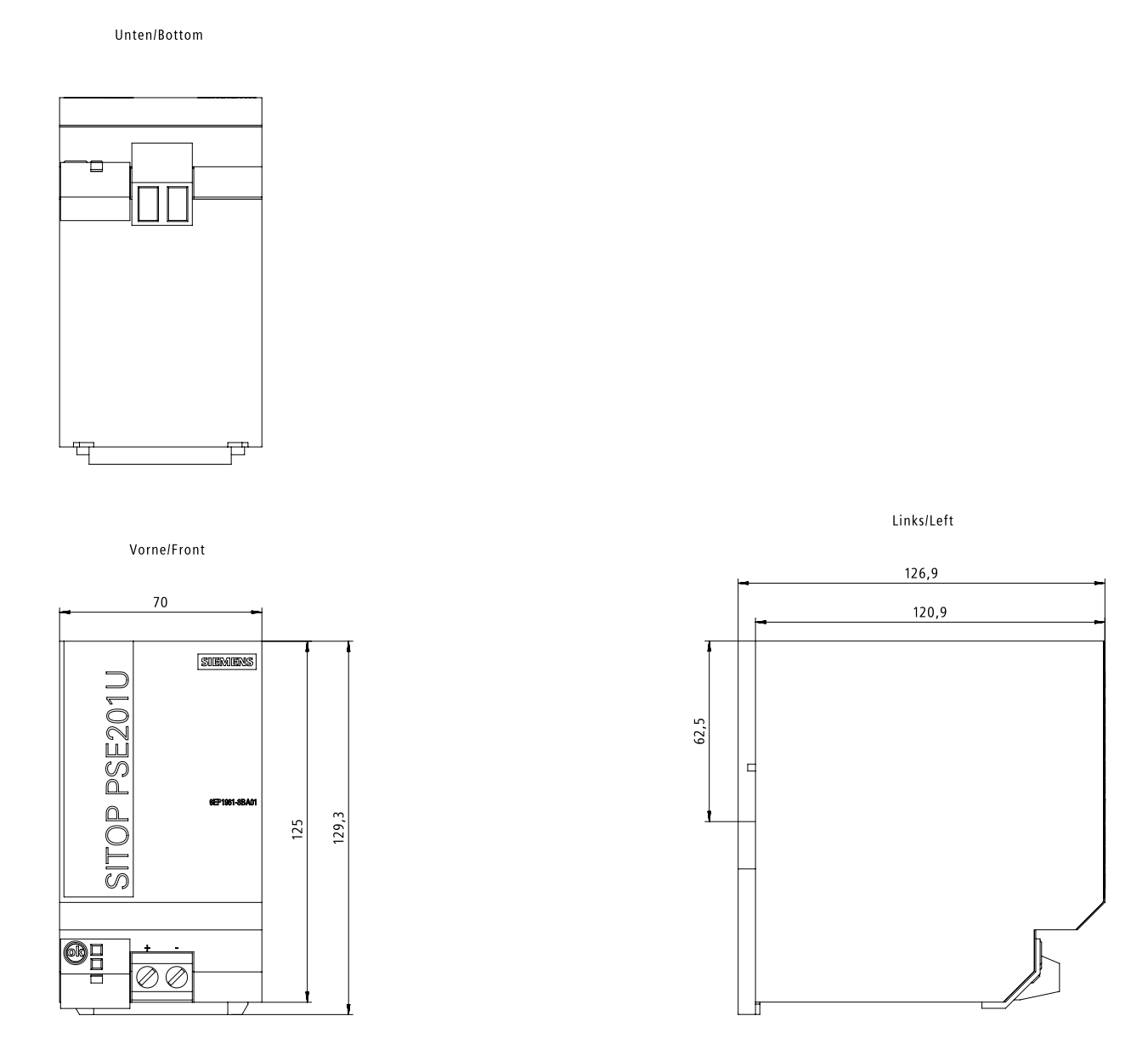

| Measurements | |
| Depth | 121 |
| Weight | 1.2 |
| Height | 125 |
| Width | 70 |
| Electrical | |
| Power consumption | - |
| Output voltage | - |
| Voltage type | DC |
| Output power factor | - |
| Max. voltage distortion output (linear load) | - |
| Input voltage | - |
| Number of phases primary | - |
| Number of phases secondary | - |
| Output apparent power | - |
| Other | |
| USV- technology | Offline |
| Secondary frequency | - |
| Primary frequency | - |
| Bridging time full load | 0.16 |
| Options | |
| SNMP | - |
| Potential free switch contact | - |
| Auto shut down function | - |
| Modular | - |
| Performance | |
| Overall efficiency | - |
| Efficiency in eco-mode | - |
| Output effective power | - |
| Connection | |
| Number of output connections with protective contact CEE 7/3 (type F) | - |
| Number of output connections C19 | - |
| Number of output connections C13 | - |
| USB interface | - |
| Input connection | - |
| Number of output connections French standard (Type E) | - |
| Number of output connections fixed connection | - |
| Application | |
| Suitable for network-management | No |
| Communication | |
| With communication interface RS-232 | - |
| Model/type | |
| Construction type | - |
| Package 1 | |
| weight | 1,367 |
| length | 0,135 |
| width | 0,135 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4025515152576 |
| Dimensions of product | |
| Weight | 1,200 |
