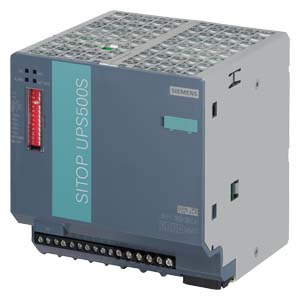

SITOP UPS500S Maintenance free uninterruptible power supply with USB interface Basic device 2.5 kWs
Cod produs: 6EP1933-2EC41
Descriere

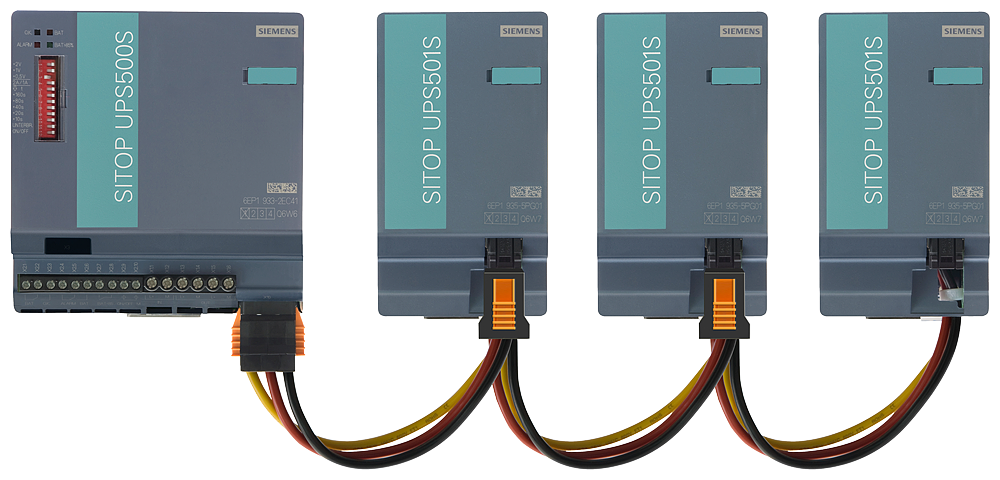

SITOP UPS500S maintenance-free uninterruptible power supply with USB interface basic device 2.5 kWs input: 24 V DC output: 24 V DC/15 A degree of protection IP20 The SITOP UPS500S with 100% maintenance-free capacitors is the optimal addition to all 24 V power supplies. It provides buffering for brief power failures over minutes. The time is generally sufficient, for example, to safely shut down PC-based automation systems or to visualize and archive operating data when extended power failures occur. The USB interface and a free software tool enable easy communication with the PC. The capacitors themselves have a very long service life even at very high temperaturesand can be used in ambient temperatures up to 60 °C. No maintenance or replacement of the energy storage unit is necessary, which means that the DC UPS pays for itself after just a short time. And because the capacitors emit no gas, there is no need for control cabinet air extraction. Short charging times quickly restore the buffer readiness after a power failure. The UPS500S for rail mounting can be expanded with SITOP PSU501S expansion modules (maximum of 3) to extend the buffer time.
Documente
Specificatii
| Measurements | |
| Depth | 125 |
| Weight | 1 |
| Height | 125 |
| Width | 120 |
| Electrical | |
| Power consumption | - |
| Output voltage | 24 |
| Voltage type | DC |
| Output power factor | - |
| Max. voltage distortion output (linear load) | - |
| Input voltage | - |
| Number of phases primary | - |
| Number of phases secondary | - |
| Output apparent power | - |
| Other | |
| USV- technology | Offline |
| Secondary frequency | - |
| Primary frequency | - |
| Bridging time full load | 0.05 |
| Options | |
| SNMP | - |
| Potential free switch contact | - |
| Auto shut down function | - |
| Modular | - |
| Performance | |
| Overall efficiency | - |
| Efficiency in eco-mode | - |
| Output effective power | 360 |
| Connection | |
| Number of output connections with protective contact CEE 7/3 (type F) | - |
| Number of output connections C19 | - |
| Number of output connections C13 | - |
| USB interface | - |
| Input connection | - |
| Number of output connections French standard (Type E) | - |
| Number of output connections fixed connection | - |
| Application | |
| Suitable for network-management | No |
| Communication | |
| With communication interface RS-232 | - |
| Model/type | |
| Construction type | - |
| Package 1 | |
| weight | 1 |
| length | 0,15 |
| width | 0,13 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4025515152392 |
| Dimensions of product | |
| Weight | 0,990 |
