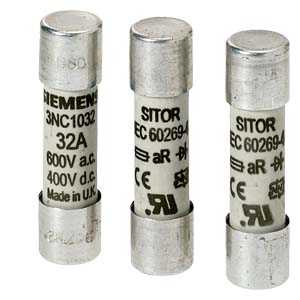

SITOR CYLINDRICAL FUSE LINK, 10 X 38 MM, 32 A, AR, UN AC: 600 V
Cod produs: 3NC1032
Alte coduri:
upc: 754554967752
Descriere
SITOR cylindrical fuse link, 10 x 38 mm, 32 A, aR, Un AC: 600 V SITOR fuse link SENTRON 3NC1 for SITOR semiconductor fuses. As an important component of the SENTRON protection components for electrical installations, the SITOR fuse system offers effective protection of people, equipment and systems through safe shutdown in the event of overload or short-circuits. Due to their super-fast switch-off characteristics, compared to conventional NH fuses, as well as their very good characteristic curve fidelity, power semiconductors are also reliably protected. SENTRON circuit protection devices - A safe choice.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Breaking capacity | 100 |
| Power loss at rated current | 8 |
| Voltage type | AC |
| Release characteristic | Other |
| Rated voltage | 600 |
| Rated current | 32 |
| Measurements | |
| Size | 10x38 mm |
| Model/type | |
| Model | Other |
| Type of fuse status indicator | - |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Rated operating frequency | 45 |
| Package 1 | |
| weight | 0,009 |
| length | 0,025 |
| width | 0,01 |
| qmax | 10 |
| qmin | 10 |
| um | PA |
| gtin | 4011209569942 |
| Package 2 | |
| volume | 0,026 |
| weight | 27,46 |
| length | 0,44 |
| width | 0,325 |
| qmax | 3000 |
| qmin | 3000 |
| um | CT |
| gtin | 4011209569942 |
| Dimensions of product | |
| Weight | 0,009 |
