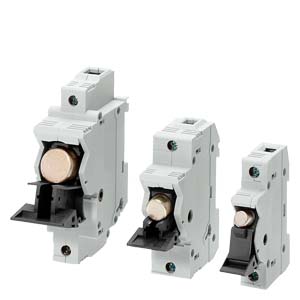

SITOR FUSE-DISCONNECTOR 22X 58, UP TO 100 A, 690V AC
Cod produs: 3NC2292
Alte coduri:
upc: 887621857189
Descriere
SITOR fuse-disconnector 22x 58, Up to 100 A, 690 V AC SITOR fuse switch disconnector SENTRON 3NC2 for SITOR semiconductor fuses. As an important component of the SENTRON protection components for electrical installations, the SITOR fuse system offers effective protection of people, equipment and systems through safe shutdown in the event of overload or short-circuits. Due to their super-fast switch-off characteristics, compared to conventional NH fuses, as well as their very good characteristic curve fidelity, power semiconductors are also reliably protected.SENTRON circuit protection devices - A safe choice.
Documente
Fisa tehnica
Certificat
Altele
Alte surse
Specificatii
| Model/type | |
| Version as emergency stop installation | No |
| With error protection | No |
| Version as main switch | No |
| Version as safety switch | Yes |
| Motor drive integrated | No |
| Type of control element | Other |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Equipped with connectors | No |
| Cable entry | Other |
| Electrical | |
| Rated short-time withstand current lcw | - |

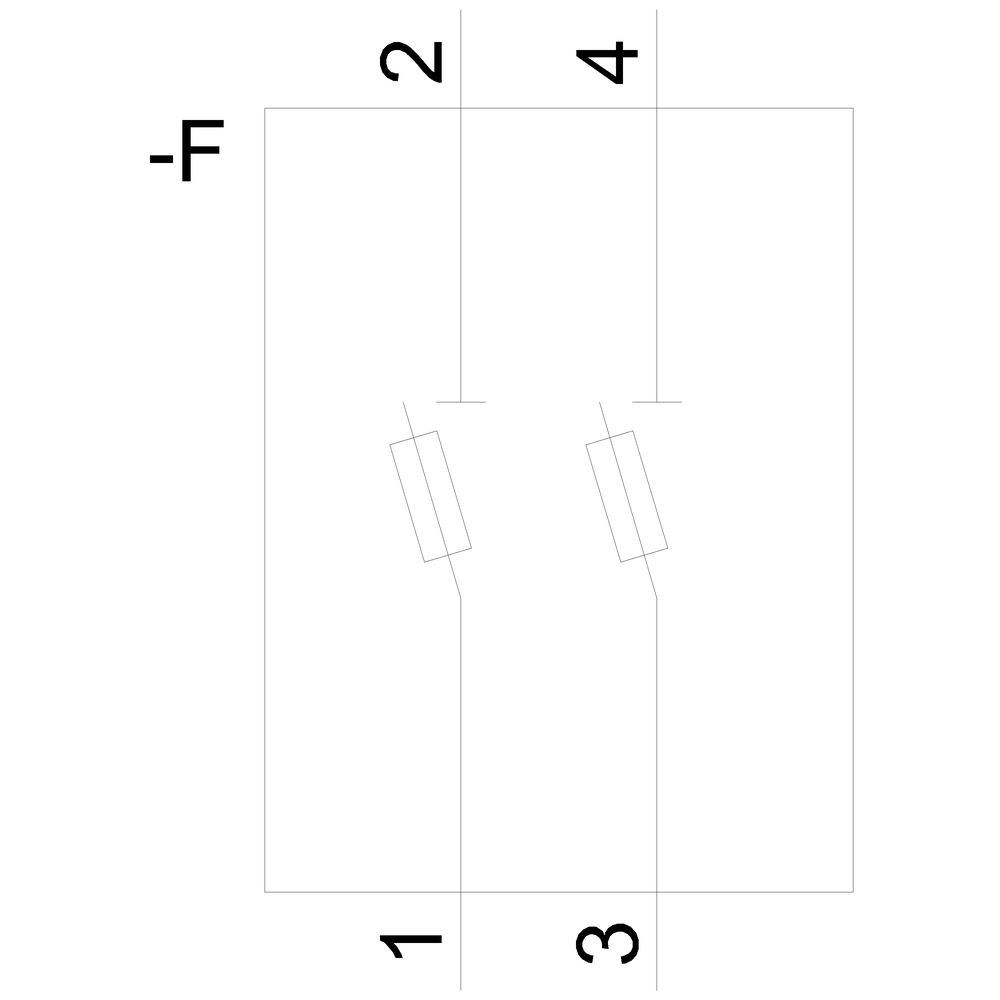

| Number of poles | 2 |
| Max. rated operation voltage Ue AC | 690 |
| Rated operation power at AC-23, 400 V | - |
| Rated permanent current Iu | 100 |
| Conditioned rated short-circuit current Iq | 100 |
| Application | |
| Suitable for fuses | 22x58 mm |
| Mounting/installation | |
| Suitable for front mounting | No |
| Suitable for floor mounting | No |
| Suitable for busbar mounting | No |
| Options | |
| Motor drive optional | No |
| Setting/control | |
| Position control element | Front side |
| Protection | |
| Degree of protection (IP), front side | IP20 |
| Package 1 | |
| weight | 0,316 |
| length | 0,12 |
| width | 0,075 |
| qmax | 3 |
| qmin | 3 |
| um | PA |
| gtin | 4011209570375 |

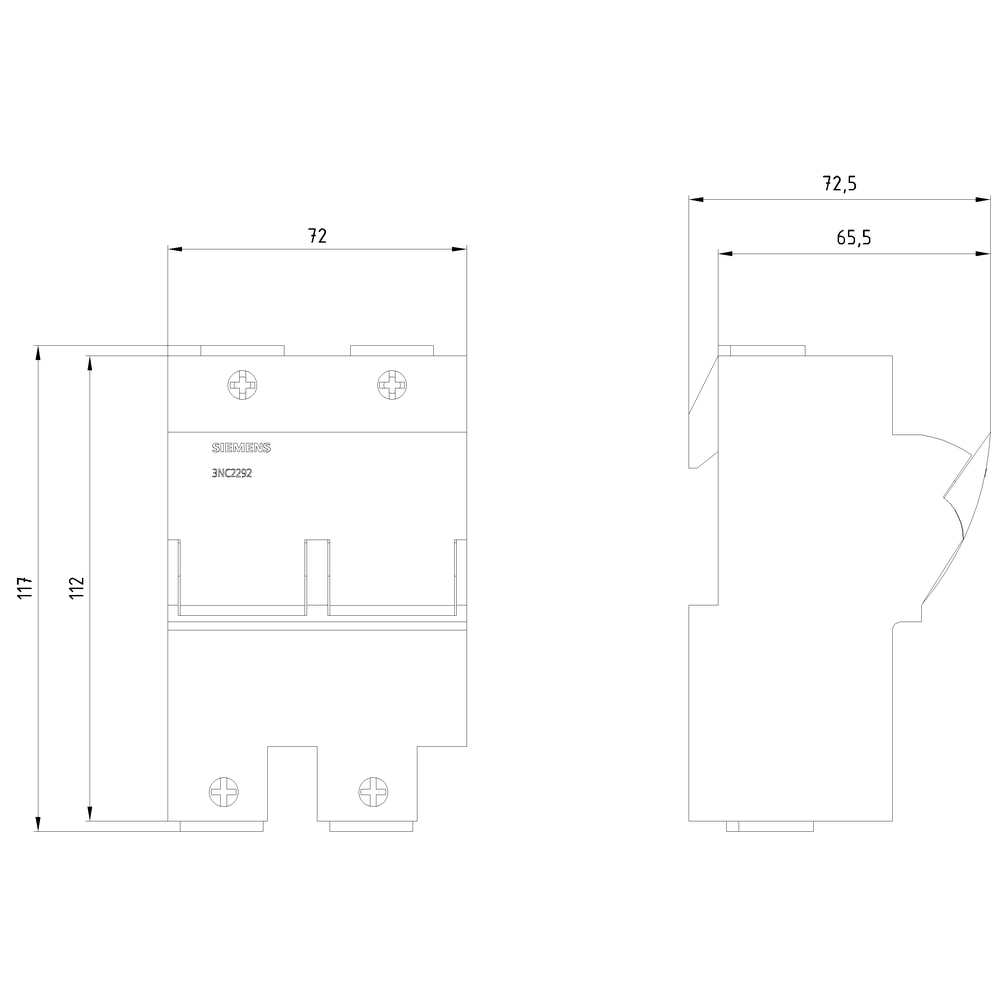

| Dimensions of product | |
| Weight | 0,316 |
