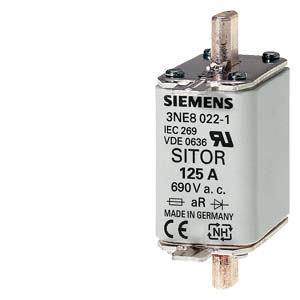

SITOR FUSE LINK, WITH BLADE CONTACTS, NH00, IN: 125 A, AR, UN AC: 690V, UN DC: 440 V, FRONT INDICATO
Cod produs: 3NE8022-1
Descriere
SITOR fuse link
The SITOR fuse link provides effective protection against overload and short-circuits in electrical installations.
Technical details:
- Model: SITOR fuse link SENTRON 3NE8
- Blade contacts
- NH00
- In: 125 A
- aR
- Un AC: 690 V
- Un DC: 440 V
- Front indicator
Customer benefits:
- Offers effective protection of personnel, equipment and systems through safe shutdown in the event of overload or short-circuits.
- Extremely fast switch-off characteristics compared to conventional LV HRC fuses.
- Very good characteristic curve fidelity for reliable protection of power semiconductors.
- SENTRON circuit protection devices - A safe choice.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated voltage AC | 690 |
| Power loss at rated current | 28 |
| Voltage type | AC/DC |
| Rated voltage DC | 440 |
| Fuse construction type according to IEC 60269 | NH00 |
| Rated current | 125 |
| Model/type | |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Performance | |
| Rated switching capacity AC | 100 |
| Rated switching capacity DC | - |
| Options | |
| Insulated metal gripping lugs (IMGL) | No |
| Package 1 | |
| weight | 0,204 |
| length | 0,102 |
| width | 0,092 |
| qmax | 3 |
| qmin | 3 |
| um | PA |
| gtin | 4011209316768 |
| Package 2 | |
| volume | 0,026 |
| weight | 15,148 |
| length | 0,44 |
| width | 0,325 |
| qmax | 72 |
| qmin | 72 |
| um | CT |
| gtin | 4011209316768 |

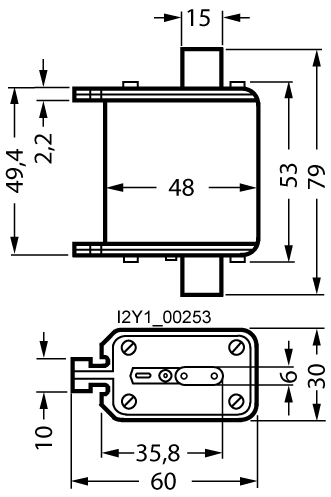

| Dimensions of product | |
| Weight | 0,204 |
