SITOR FUSE LINK, WITH BLADE CONTACTS, NH00, IN: 35 A, GR, UN AC: 690V, UN DC: 440 V, FRONT INDICATOR
Cod produs: 3NE8003-1
Descriere
SITOR fuse link
The SITOR fuse link is a key component designed for effective protection of personnel, equipment, and systems in electrical installations.
Technical details:
- Model: SITOR fuse link SENTRON 3NE8
- Type: NH00
- In: 35 A
- gR
- Un AC: 690 V
- Un DC: 440 V
- Blade contacts
- Front indicator
Customer benefits:
- Offers effective protection through safe shutdown in the event of overload or short-circuits.
- Extremely fast switch-off characteristics compared to conventional LV HRC fuses.
- Very good characteristic curve fidelity for reliable protection of power semiconductors.
- SENTRON circuit protection devices - A safe choice.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated voltage AC | 690 |
| Power loss at rated current | 9 |
| Voltage type | AC/DC |
| Rated voltage DC | 440 |
| Fuse construction type according to IEC 60269 | NH00 |
| Rated current | 35 |
| Model/type | |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | gR |
| Performance | |
| Rated switching capacity AC | 100 |
| Rated switching capacity DC | - |
| Options | |
| Insulated metal gripping lugs (IMGL) | No |
| Package 1 | |
| weight | 0,2006 |
| length | 0,102 |
| width | 0,092 |
| qmax | 3 |
| qmin | 3 |
| um | PA |
| gtin | 4011209307100 |
| Package 2 | |
| volume | 0,026 |
| weight | 15,076 |
| length | 0,44 |
| width | 0,325 |
| qmax | 72 |
| qmin | 72 |
| um | CT |
| gtin | 4011209307100 |

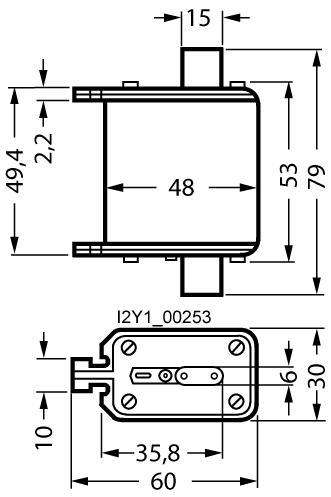

| Dimensions of product | |
| Weight | 0,2006 |
