SITOR FUSE LINK, WITH BLADE CONTACTS, NH000, IN: 35 A, GS, UN AC: 690V, UN DC: 250V, FRONT INDICATOR
Cod produs: 3NE1803-0
Alte coduri:
upc: 662643084412
Descriere
Sitor fuse link
The SITOR fuse link is designed for effective protection of personnel, equipment, and systems in electrical installations.
Technical details:
- Model: SITOR fuse link SENTRON 3NE1
- Type: NH000
- Rated current (In): 35 A
- Breaking capacity: gS
- Rated voltage AC (Un AC): 690 V
- Rated voltage DC (Un DC): 250 V
- Front indicator: Yes
Customer benefits:
- Offers effective protection of personnel, equipment, and systems through safe shutdown in events of overload or short-circuits.
- Extremely fast switch-off characteristics compared to conventional LV HRC fuses.
- Very good characteristic curve fidelity ensures reliable protection of power semiconductors.
- Part of SENTRON circuit protection devices – a safe choice.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated voltage AC | 690 |
| Power loss at rated current | 3.5 |
| Voltage type | AC/DC |
| Rated voltage DC | 250 |
| Fuse construction type according to IEC 60269 | NH000 |
| Rated current | 35 |
| Model/type | |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | Other |
| Performance | |
| Rated switching capacity AC | 100 |
| Rated switching capacity DC | - |
| Options | |
| Insulated metal gripping lugs (IMGL) | No |
| Package 1 | |
| weight | 0,131 |
| length | 0,083 |
| width | 0,065 |
| qmax | 3 |
| qmin | 3 |
| um | PA |
| gtin | 4011209132344 |
| Package 2 | |
| volume | 0,026 |
| weight | 16,54 |
| length | 0,44 |
| width | 0,325 |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 4011209132344 |

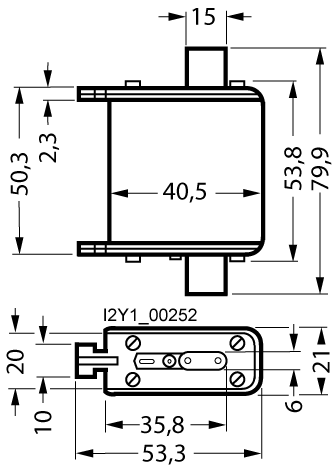

| Dimensions of product | |
| Weight | 0,131 |
