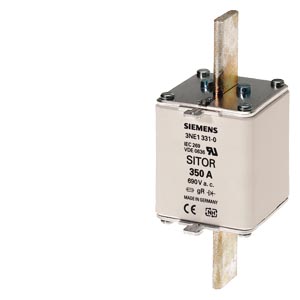

SITOR FUSE LINK, WITH BLADE CONTACTS, NH2, IN: 350 A, GR, UN AC: 690V, UN DC: 250V, FRONT INDICATOR

Cod produs: 3NE1331-2

▶

Autentificati-va pentru a vedea pretul.

Producator: Siemens

Set: 1 bucati

4011209568112

Descriere

SITOR fuse link

The SITOR fuse link is designed to provide effective protection for personnel, equipment, and systems in electrical installations.

Technical details:

Model: SITOR fuse link SENTRON 3NE1
Blade contacts
NH2
In: 350 A
gR
Un AC: 690 V
Un DC: 250 V
Front indicator

Customer benefits:

Effective protection through safe shutdown in the event of overload or short-circuits
Extremely fast switch-off characteristics compared to conventional LV HRC fuses
Very good characteristic curve fidelity for reliable protection of power semiconductors
Part of SENTRON circuit protection devices - A safe choice

Disclaimer: Generated by AI.

Documente

Fisa tehnica

Certificat

Link to Certificates

Altele

Link to Sales brochure

Declaratie de conformitate

Alte surse

Specificatii

Electrical
Rated voltage AC	690
Power loss at rated current	43
Voltage type	AC/DC
Rated voltage DC	250
Fuse construction type according to IEC 60269	NH2
Rated current	350
Model/type
Type of fuse status indicator	Top fuse status indicator
Other
Utilization category according to IEC 60269	gR
Performance
Rated switching capacity AC	100
Rated switching capacity DC	-
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
weight	0,822
length	0,2
width	0,27
qmax	3
qmin	3
um	PA
gtin	4011209568112
Package 2
volume	0,026
weight	10,324
length	0,44
width	0,325
qmax	12
qmin	12
um	CT
gtin	4011209568112

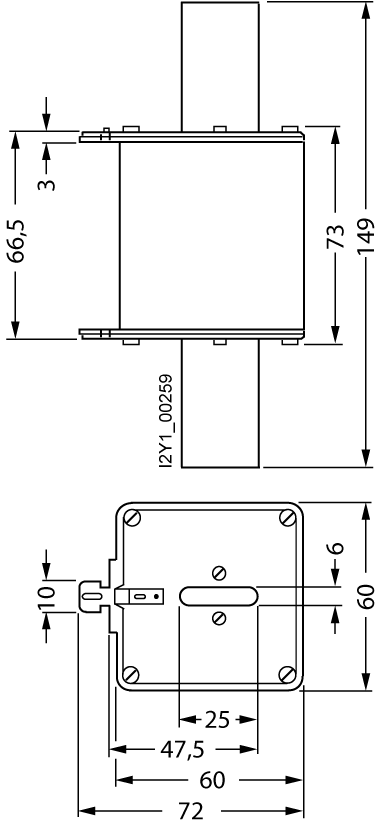

Dimensions of product
Weight	0,822

Afiseaza mai multe specificatii
