SITOR FUSE LINK, WITH BLADE CONTACTS, NH2, IN: 400 A, GS, UN AC: 690V, UN DC: 250V, FRONT INDICATOR

Cod produs: 3NE1332-0

▶

Autentificati-va pentru a vedea pretul.

Producator: Siemens

Set: 1 bucati

4011209168985

Alte coduri: upc: 662643084245

Descriere

SITOR fuse link

The SITOR fuse link is a key component designed for effective protection of personnel, equipment, and systems in electrical installations.

Technical details:

Model: SITOR fuse link SENTRON 3NE1
Blade contacts: Yes
NH2
In: 400 A
gS
Un AC: 690 V
Un DC: 250 V
Front indicator: Yes

Customer benefits:

Effective protection through safe shutdown in the event of overload or short circuits.
Extremely fast switch-off characteristics compared to conventional LV HRC fuses.
Very good characteristic curve fidelity for reliable protection of power semiconductors.
SENTRON circuit protection devices are a safe choice.

Disclaimer: Generated by AI.

Documente

Fisa tehnica

Certificat

Link to Certificates

Altele

Link to Sales brochure

Declaratie de conformitate

Alte surse

Specificatii

Electrical
Rated voltage AC	690
Power loss at rated current	45
Voltage type	AC/DC
Rated voltage DC	250
Fuse construction type according to IEC 60269	NH2
Rated current	400
Model/type
Type of fuse status indicator	Top fuse status indicator
Other
Utilization category according to IEC 60269	Other
Performance
Rated switching capacity AC	100
Rated switching capacity DC	-
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
weight	0,8
length	0,2
width	0,27
qmax	3
qmin	3
um	PA
gtin	4011209168985

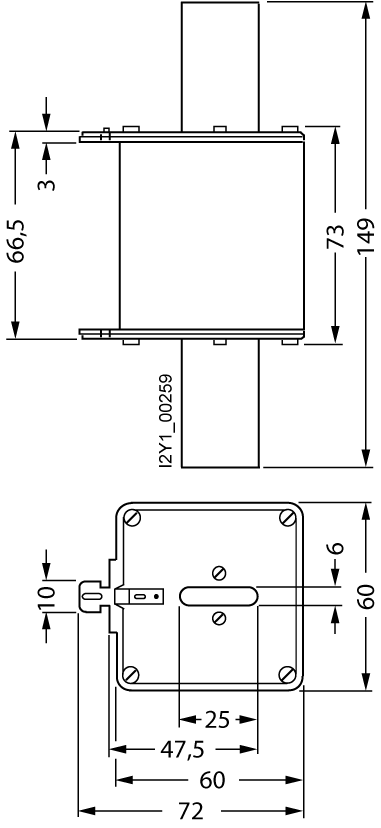

Dimensions of product
Weight	0,8

Afiseaza mai multe specificatii
