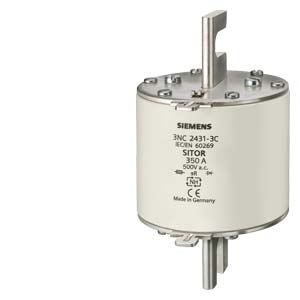

SITOR FUSE LINK, WITH SLOTTED BLADE CONTACTS, NH3, IN: 350 A, AR, UN AC: 500 V, UN DC: 440 V, FRONT
Cod produs: 3NC2431-3C
Descriere
SITOR fuse link, with slotted blade contacts, NH3, In: 350 A, aR, Un AC: 500 V, Un DC: 440 V, front indicator SITOR fuse link SENTRON 3NC2 for SITOR semiconductor fuses. As an important component of the SENTRON protection components for electrical installations, the SITOR fuse system offers effective protection of personnel, equipment and systems through safe shutdown in the event of overload or short-circuits. Due to their extremely fast switch-off characteristics, compared to conventional LV HRC fuses, as well as their very good characteristic curve fidelity, power semiconductors are also reliably protected. SENTRON circuit protection devices - A safe choice.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated voltage AC | 500 |
| Power loss at rated current | 60 |
| Voltage type | AC/DC |
| Rated voltage DC | 440 |
| Fuse construction type according to IEC 60269 | NH3 |
| Rated current | 350 |
| Model/type | |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Performance | |
| Rated switching capacity AC | 100 |
| Rated switching capacity DC | - |
| Options | |
| Insulated metal gripping lugs (IMGL) | No |
| Package 1 | |
| weight | 1,046 |
| length | 0,2 |
| width | 0,27 |
| qmax | 3 |
| qmin | 3 |
| um | PA |
| gtin | 4001869369334 |
| Dimensions of product | |
| Weight | 1,046 |
