SURGE SUPPRESSOR, VARISTOR, 24 ... 48 V AC, 24 ... 70 V DC, FOR MOTOR CONTACTORS SIZE S0
Cod produs: 3RT2926-1BB00
Alte coduri:
upc: 662643920666
Descriere

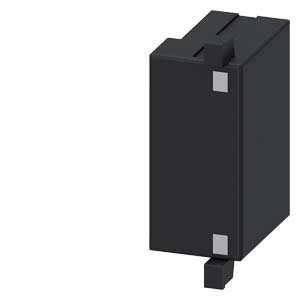

Surge suppressor
The surge suppressor is designed to protect contactors with a voltage range of 24-48 V AC and 24-70 V DC.
Technical details:
- Varistor
- 24-48 V AC
- 50/60 Hz
- 24-70 V DC
- For contactors 3RT2.2
Customer benefits:
- Thanks to the slot already available in the contactor, the surge suppressor can easily be inserted without any effect on the external dimensions.
- Simple, efficient and always up to date - SIRIUS modular system.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Voltage type (operating voltage) | - |
| Operating voltage AC 60 Hz | 24 |
| Operating voltage AC 50 Hz | 24 |
| Operating voltage DC | 24 |
| Model/type | |

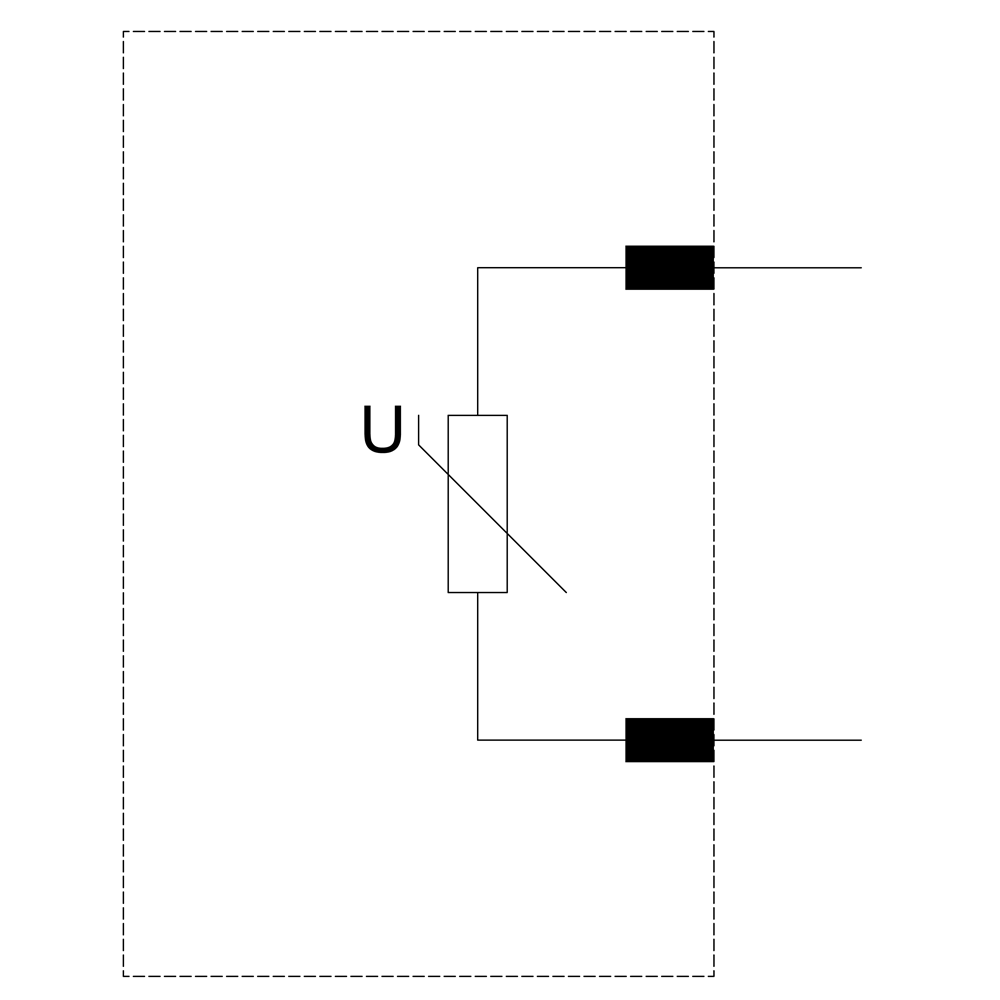

| Function | Varistor (voltage-sensitive resistor) |
| With LED indication | - |
| Package 1 | |
| weight | 0,004 |
| length | 0,056 |
| width | 0,031 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209779310 |
| Dimensions of product | |
| Weight | 0,004 |
