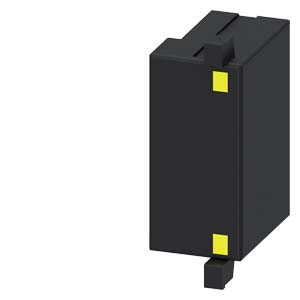

SURGE SUPPRESSOR, VARISTOR WITH LED, 127 ... 240 V AC, 70 ... 150 V DC FOR MOTOR CONTACTORS SIZE S0,
Cod produs: 3RT2926-1JL00
Alte coduri:
upc: 662643920802
Descriere
surge suppressor, varistor with LED, 127-240 V AC, 50/60 Hz, 70-150 V DC, for contactors 3RT2.2 Thanks to the slot already available in the contactor, the surge suppressor can easily be inserted without any effect on the external dimensions. Simple, efficient and always up to date - SIRIUS modular system.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Voltage type (operating voltage) | - |
| Operating voltage AC 60 Hz | 127 |
| Operating voltage AC 50 Hz | 127 |
| Operating voltage DC | 70 |
| Model/type | |

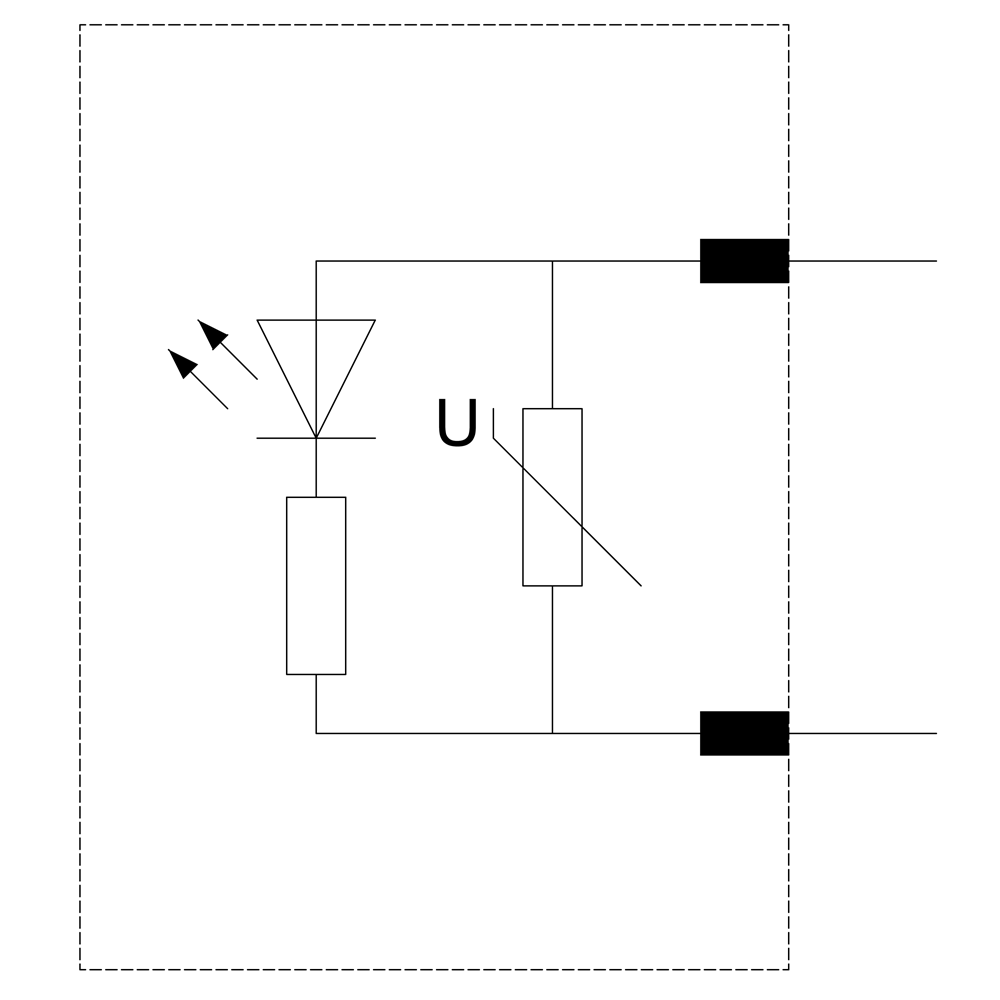

| Function | Varistor (voltage-sensitive resistor) |
| With LED indication | - |
| Package 1 | |
| weight | 0,005 |
| length | 0,056 |
| width | 0,031 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209831179 |
| Dimensions of product | |
| Weight | 0,005 |
