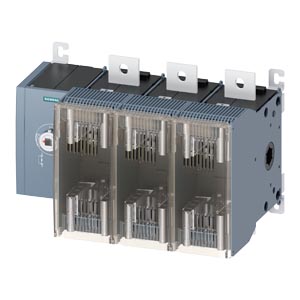

Switch disconnector with fuse 630 A
Siemens switch disconnectors with fuses provide reliable protection against electrical accidents in complex applications.
Technical details:
- Frame size: 5
- Current: 630 A
- 3-pole for LV HRC fuse size: 2 and 3
- Front operating mechanism: left
- Basic unit: without handle
- Flat connector: without fuses
Customer benefits:
- Reliable protection against electrical accidents through locking functions and touch protection.
- Automatically interlocked fuse cover in the switched-on state.
- Efficient engineering with extensive CAx data.
- Robust technology with high short-circuit strength ensures high availability.
- Reliable protection even for wind turbines up to 690 V + 10%.
- End-to-end safety for users and systems.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Version as emergency stop installation | Yes |
| With error protection | No |
| Version as main switch | Yes |
| Version as safety switch | Yes |
| Motor drive integrated | No |
| Type of control element | Without actuator |
| Connection | |
| Type of electrical connection of main circuit | Other |
| Equipped with connectors | No |
| Cable entry | - |
| Electrical | |
| Rated short-time withstand current lcw | 22 |
| Number of poles | 3 |
| Max. rated operation voltage Ue AC | 690 |
| Rated operation power at AC-23, 400 V | 355 |
| Rated permanent current Iu | 630 |
| Conditioned rated short-circuit current Iq | 100 |
| Application | |
| Suitable for fuses | NH2, NH3 |
| Mounting/installation | |
| Suitable for front mounting | No |
| Suitable for floor mounting | Yes |
| Suitable for busbar mounting | - |
| Options | |
| Motor drive optional | No |
| Setting/control | |
| Position control element | Front side |
| Protection | |
| Degree of protection (IP), front side | IP00 |
| Package 1 | |
| weight | 17 |
| length | 0,32 |
| width | 0,5 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869536545 |
| Dimensions of product | |
| Weight | 17,000 |
