SWITCH DISCONNECTOR 3LD, EMERGENCY SWITCHING-OFF SWITCH, 3- POLE, IU: 125 A, OPERATING POWER / AT AC
Cod produs: 3LD2814-0TK53
Descriere
Sentron, Switch disconnector 3LD
The Switch disconnector SENTRON 3LD2 is designed for the safe shutdown of loads in various applications.
Technical details:
- Type: Emergency switching-off switch

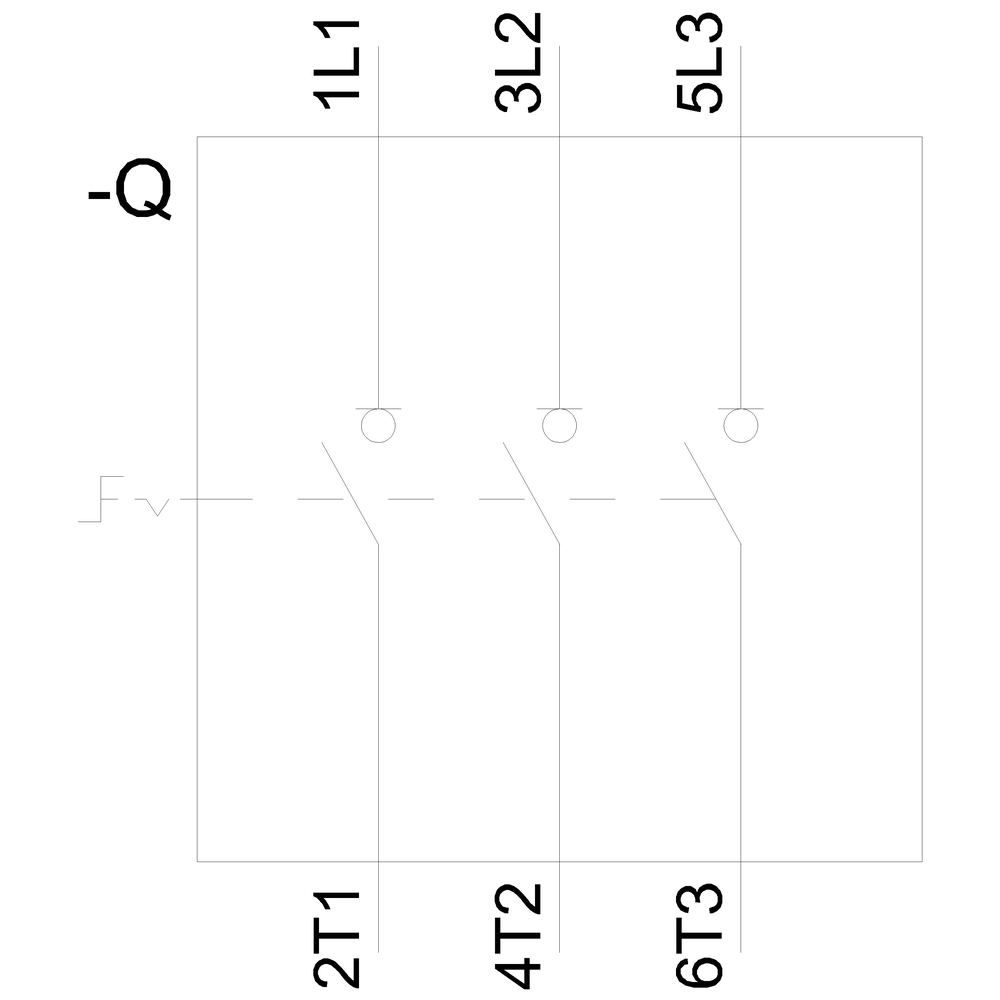

- Poles: 3-pole
- Iu: 125 A
- Operating power / at AC-23 A 400 V: 45 kW

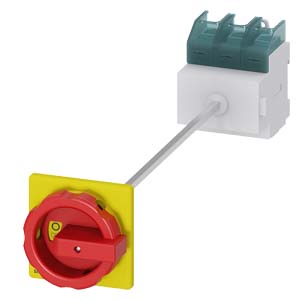

- Floor mounting with door coupling
- Rotary operating mechanism
- Color: Red / yellow
- 4-hole mounting of the handle
- Optimum disconnection of 16 A of 250 A from the power supply due to the locking capability of the rotary operating mechanism
- Degree of protection: IP65 with encapsulated enclosure for outdoor applications
- International approvals: IEC, UL, CCC, and shipbuilding
- Variants for DC applications available
Customer benefits:
- Fast and easy mounting of auxiliary switches, N-PE terminal, or 4th pole
- Versatile use worldwide

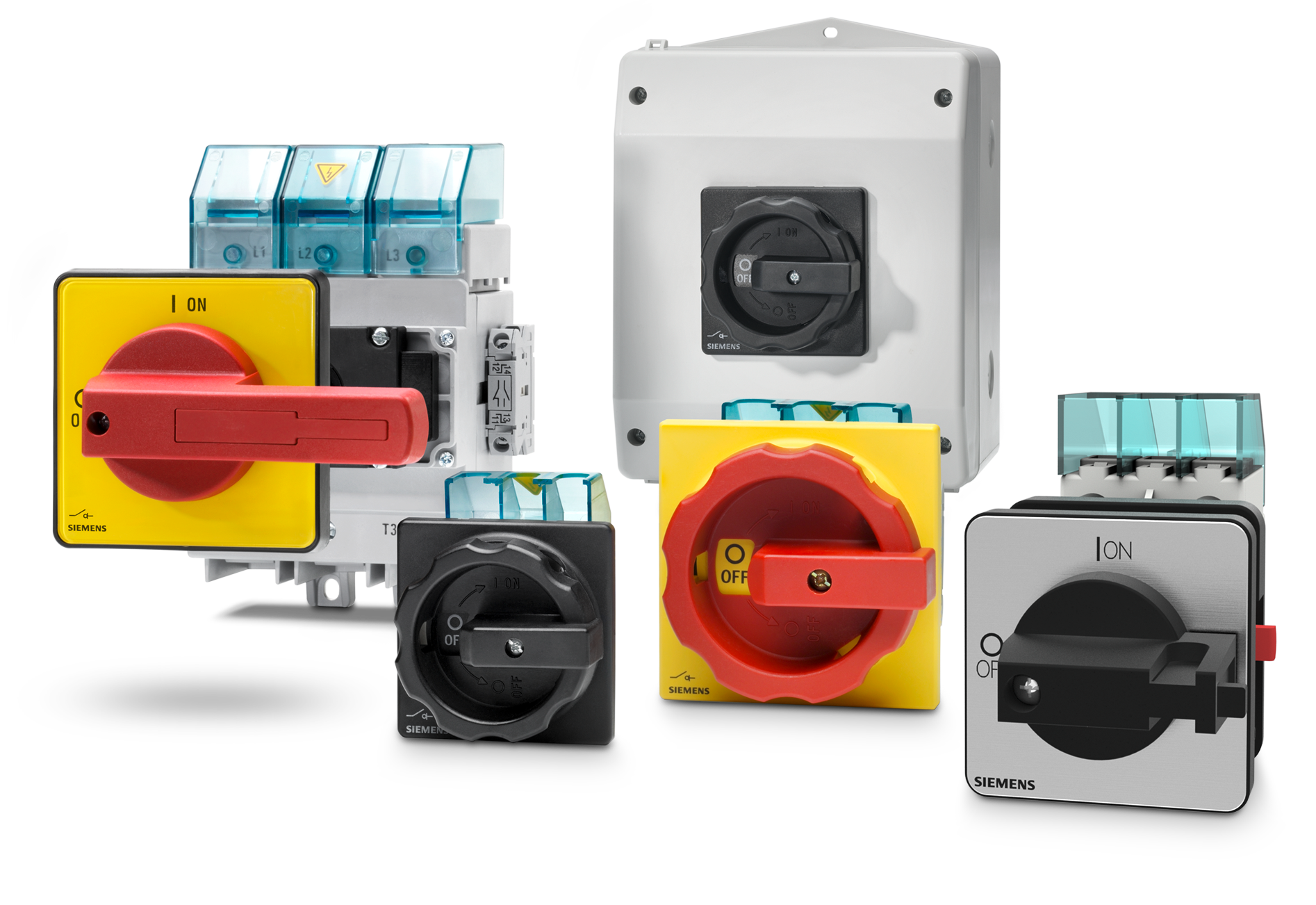

- Wide range of variants for different mounting options
- End-to-end safety for users and systems
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii

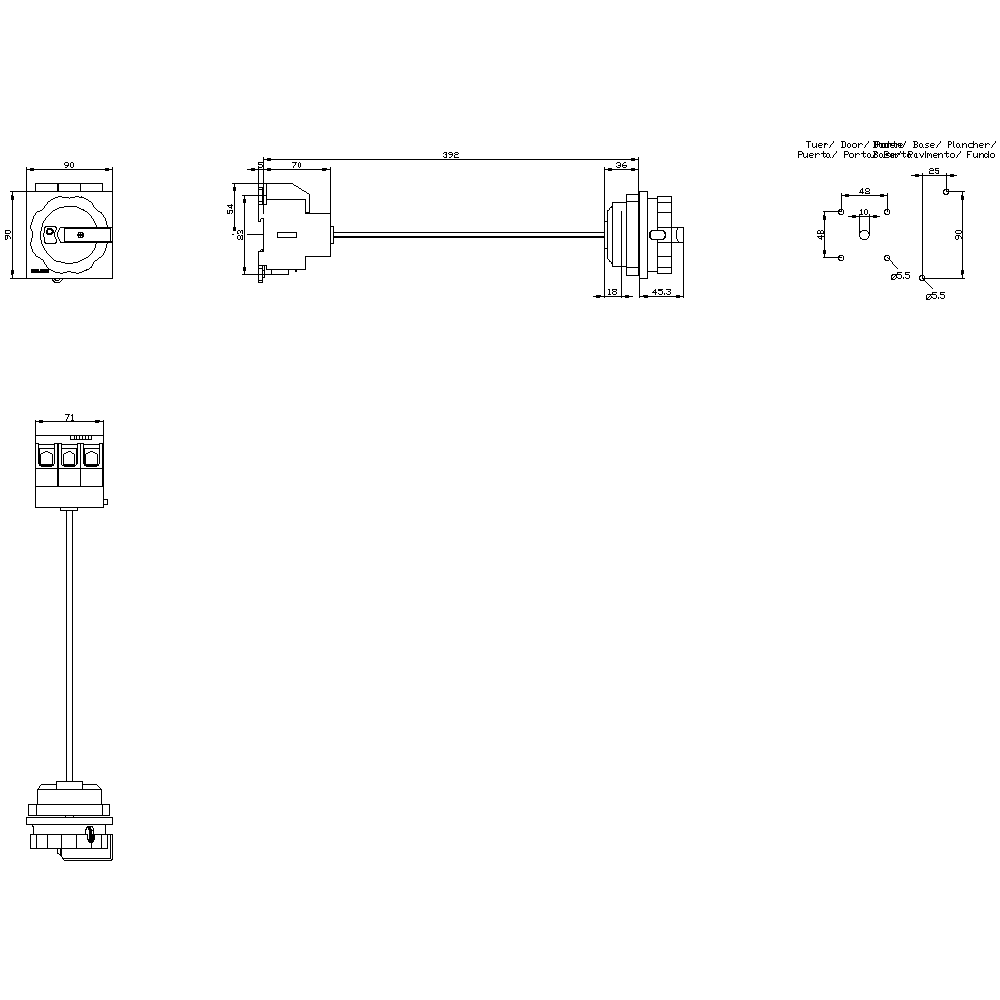

| Measurements | |
| Depth | 470.5 |
| Height | 106 |
| Width in number of modular spacings | - |
| Width | 90 |
| Protection | |
| Degree of protection (NEMA) | Other |
| Degree of protection (IP), front side | IP65 |
| Electrical | |
| Rated permanent current at AC-23, 400 V | 80 |
| Switching power at 400 V | - |
| Rated permanent current at AC-21, 400 V | 125 |
| Rated operation power at AC-3, 400 V | 37 |
| Rated operation power at AC-23, 400 V | 45 |
| Rated permanent current Iu | 125 |
| Conditioned rated short-circuit current Iq | - |
| Rated short-time withstand current lcw | 2 |
| Number of poles | 3 |
| Max. rated operation voltage Ue AC | 690 |
| Rated operating voltage | - |
| Mounting/installation | |
| Suitable for intermediate mounting | - |
| Suitable for floor mounting | Yes |
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | No |
| Application | |
| Suitable for distribution board installation | - |
| Options | |
| Motor drive optional | No |
| Version as reversing switch | No |
| Voltage release optional | No |
| Interlockable | Yes |
| Colour | |
| Colour control element | Red |
| Model/type | |
| Number of switches | 1 |
| Motor drive integrated | No |
| Type of control element | Short rotary handle |
| Version as emergency stop installation | Yes |
| With pre-assembled cabling | No |
| Version as main switch | Yes |
| Version as safety switch | Yes |
| Version as maintenance-/service switch | Yes |
| Connection | |
| Type of electrical connection of main circuit | Frame clamp |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Package 1 | |
| weight | 0,761 |
| length | 0,475 |
| width | 0,142 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209403673 |
| Dimensions of product | |
| Weight | 0,761 |
