Descriere

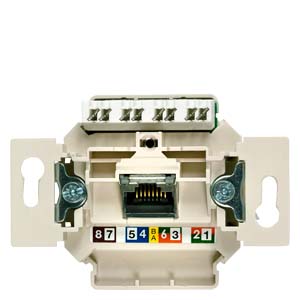

DELTA connection socket Universal connection unit 1x 8-pole RJ45 Cat. 6 A unshielded LSA-plus terminals Screw mounting Due to its eternally stylish shapes and a multitude of colors, our comprehensive range of DELTA products provides you with a plethora of individual design options, which consummately accentuate the aesthetics of any room. The DELTA electronic devices for installation technology offer extensive additional functions such as dimmers for all common loads, including LED lighting, motion detectors in surface-mounted and flush-mounted versions, shutter/blind controls, timers, or room temperature controls. DELTA switch and socket outlets - design and quality to perfection from Siemens.
Documente
Specificatii
| Connection | |
| Suitable for number of connectors | 1 |
| Isolated connections | - |
| Measurements | |
| Device height | 70 |
| Device width | 50 |
| Min. depth of built-in installation box | - |
| Device depth | 28 |
| Model/type | |
| Assembly arrangement | Basic element |
| With buses/couplings | - |
| With strain relief | No |
| Contact type | - |
| With hinged lid | No |
| With lighting | No |
| Number of modules (module system) | - |
| With dust cover | No |
| With imprint | No |
| Other | |
| Outlet direction | Bottom |
| Impact strength | - |
| Material | |
| Halogen free | Yes |
| Surface protection | Other |
| Material | Plastic |
| Material quality | Other |
| Surface finishing | - |
| Mounting/installation | |
| Mounting method | Other |
| Type of fastening | Mounting with screw |
| Options | |
| Imprintable label | - |
| Luster terminal | No |
| Support ring | - |
| Anti-bacterial treatment | No |
| Shielded buses | - |
| Shielded housing | - |
| Colour | |
| RAL-number (similar) | - |
| Transparent | No |
| Colour | Other |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Application | |
| Utilization | UAE/IAE (ISDN) |
| Package 1 | |
| weight | 0,0545 |
| length | 0,18 |
| width | 0,09 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869527338 |
| Dimensions of product | |
| Weight | 0,0545 |
