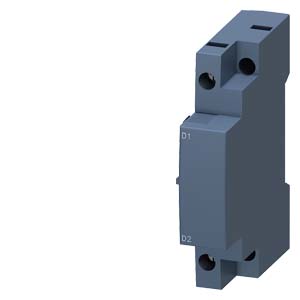

UNDERVOLTAGE RELEASE 110 V AC/50 HZ, 120 V AC/60 HZ WITH SCREW TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod produs: 3RV2902-1AF0
Alte coduri:
upc: 662643924862
Descriere
Undervoltage release 110 V AC/50 Hz, 120 V AC/60 Hz
Designed for circuit breakers, the undervoltage release offers a simple and efficient solution in the SIRIUS modular system.
Technical details:
- Voltage: 110 V AC/50 Hz, 120 V AC/60 Hz
- Type: Undervoltage release
- Connection: Screw terminal
- Application: Circuit breaker 3RV2
Customer benefits:
- Simple and efficient integration.
- Always up to date with the SIRIUS modular system.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 110 |
| Rated control supply voltage AC 60 Hz | 120 |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Application | |
| Suitable for motor safety switch | Yes |
| Suitable for power circuit breaker | Yes |
| Suitable for off-load switch | - |
| Suitable for overload relay | - |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Options | |
| Delayed | No |
| Package 1 | |
| weight | 0,135 |
| length | 0,089 |
| width | 0,042 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209737310 |
| Dimensions of product | |
| Weight | 0,135 |
