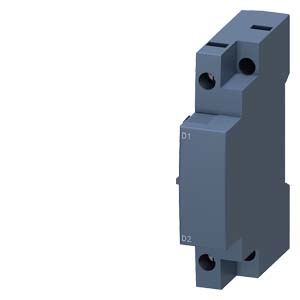

UNDERVOLTAGE RELEASE 24 V DC WITH SCREW TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod produs: 3RV2902-1AB4
Alte coduri:
upc: 662643924855
Descriere
Undervoltage release 24 V DC with screw terminal for circuit breaker 3RV2 Simple, efficient and always up to date - SIRIUS modular system.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Voltage type for actuating | DC |
| Rated control supply voltage DC | 24 |
| Application | |
| Suitable for motor safety switch | Yes |
| Suitable for power circuit breaker | Yes |
| Suitable for off-load switch | - |
| Suitable for overload relay | - |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Options | |
| Delayed | No |
| Package 1 | |
| weight | 0,144 |
| length | 0,102 |
| width | 0,045 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209790988 |

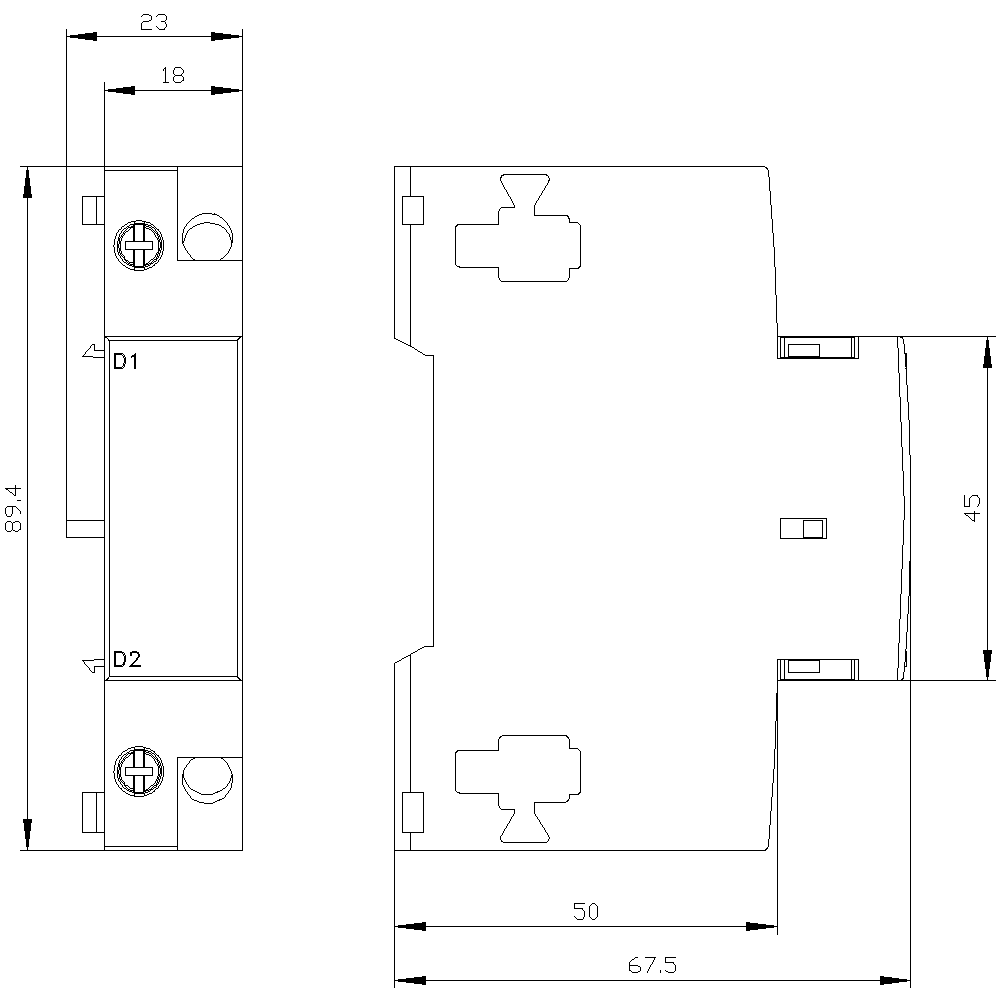

| Dimensions of product | |
| Weight | 0,144 |
