Descriere

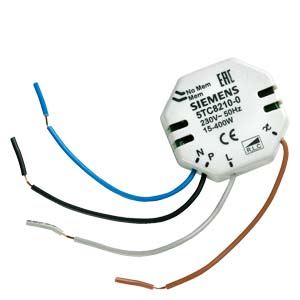

Universal dimmer max.: 400W Due to its eternally stylish shapes and a multitude of colors, our comprehensive range of DELTA products provides you with a plethora of individual design options, which consummately accentuate the aesthetics of any room. The DELTA electronic devices for installation technology offer extensive additional functions such as dimmers for all common loads, including LED lighting, motion detectors in surface-mounted and flush-mounted versions, shutter/blind controls, timers, or room temperature controls. DELTA switch and socket outlets - design and quality to perfection from Siemens.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Assembly arrangement | Basic element with complete housing |
| Type of load | Universal |
| Number of units | - |
| Number of modules (module system) | 1 |
| Measurements | |
| Device height | 56 |
| Device width | 50 |
| Min. depth of built-in installation box | 32 |
| Device depth | 12 |
| Electrical | |
| Power consumption | - |
| Nominal power resistive load | 15 |
| Nominal voltage | - |
| Max. switching power LED | 2 |
| Nominal power inductive load | 15 |
| Nominal power capacitive load | 15 |
| Control voltage | - |
| Options | |
| Applicable with time switch/timer | No |
| Serial dimmer | No |
| Light value memory | Yes |
| Applicable with transmission button | Yes |
| Applicable with movement sensor | Yes |
| Applicable with presence indicator | Yes |
| Applicable with infrared button | Yes |
| Dimming phase cut-on (leading edge) | No |
| Dimming phase cut-off (trailing edge) | Yes |
| IFTTT support available | No |
| Applicable with button | Yes |
| Connection | |
| Connection type | Screwed terminal |
| Min. brightness controllable | - |
| Core cross section | 0.5 |
| Substation input | No |
| Mounting/installation | |
| Mounting method | Other |
| Type of fastening | Other |
| Material | |
| Halogen free | Yes |
| Surface protection | Other |
| Material | Plastic |
| Material quality | Other |
| Surface finishing | - |
| Communication | |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Other | |
| Impact strength | - |
| Frequency | 50 |
| Colour | |
| RAL-number (similar) | - |
| Transparent | No |
| Colour | White |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Setting/control | |
| App control via Bluetooth | No |
| Method of operation | Push button |
| Package 1 | |
| weight | 0,034 |
| length | 0,069 |
| width | 0,025 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869519517 |
| Dimensions of product | |
| Weight | 0,034 |
