Descriere

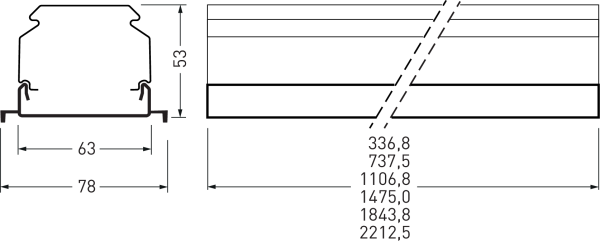

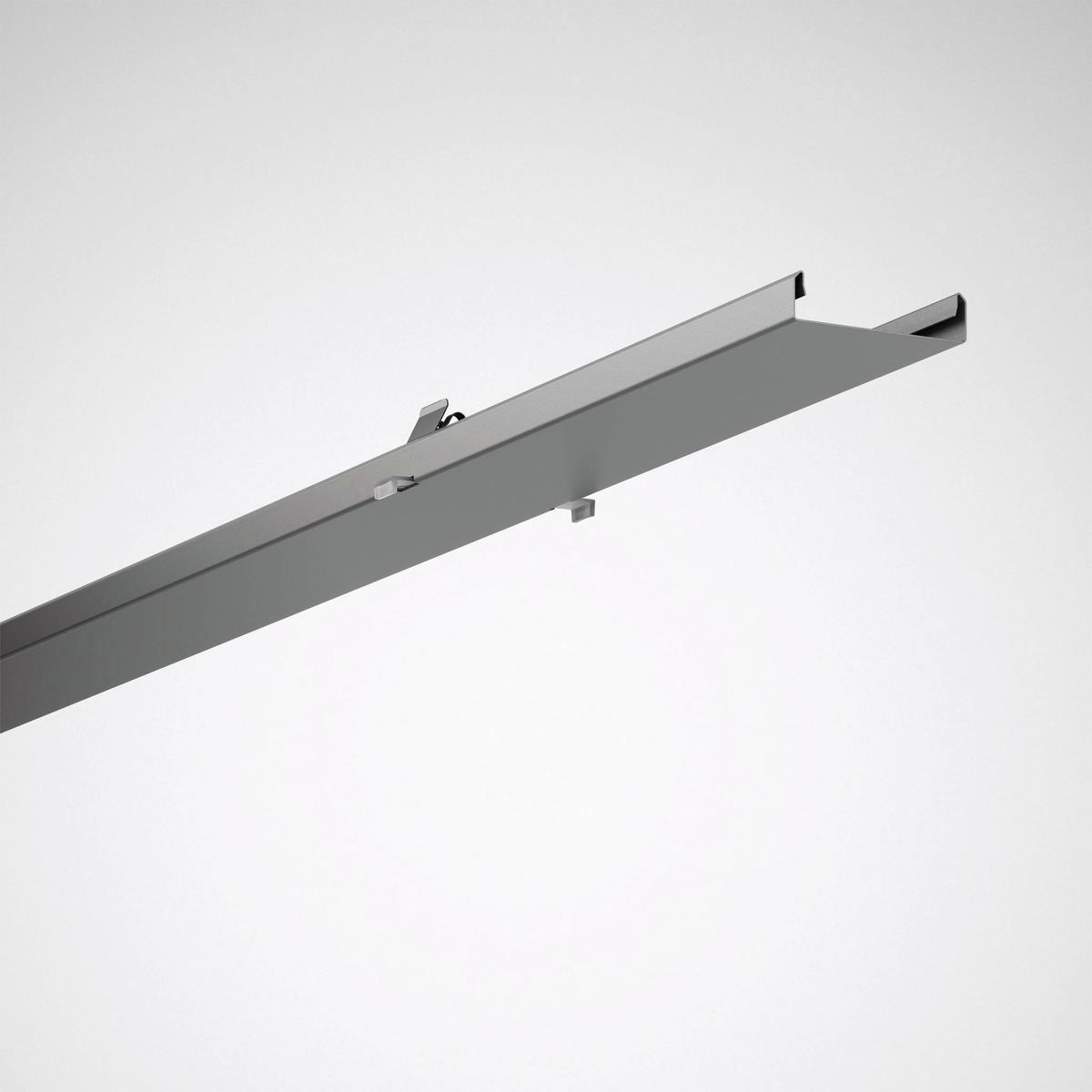

Blank cover for E-Line Fix LED continuous line system. Suitable for trunking E-Line Fix 07650... . Suitable for use in continuous line applications with protection rating IP20 and IP64. Mounting to trunking with tool-free stainless steel snap fasteners. Correct mounting of the gear tray with the trunking is confirmed by a snap-in noise. The transparent mounting elements made of UV-stabilised PC can be removed after successful installation, thus ensuring theft and disassembly protection. Made of sheet steel. Colour silver gray (similar to RAL 9006). Length 737 mm.
Documente
Specificatii
| Colour | |
| Colour | Silver |
| Transparent | - |
| Measurements | |
| Width | 62 |
| Height | 30 |
| Diameter | - |
| Length | 737 |
| Model/type | |
| Type of accessory/spare part | Blind cap |
| Accessory | Yes |
| Spare part | - |
| Material | |
| Material | - |
| Package 1 | |
| volume | 0,0061 |
| weight | 0,64 |
| length | 0,761 |
| width | 0,099 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4018242428649 |
| Package 2 | |
| volume | 1,3152 |
| weight | 107,52 |
| length | 1,37 |
| width | 0,8 |
| qmax | 168 |
| qmin | 168 |
| um | PF |
| gtin | 4018242747498 |
