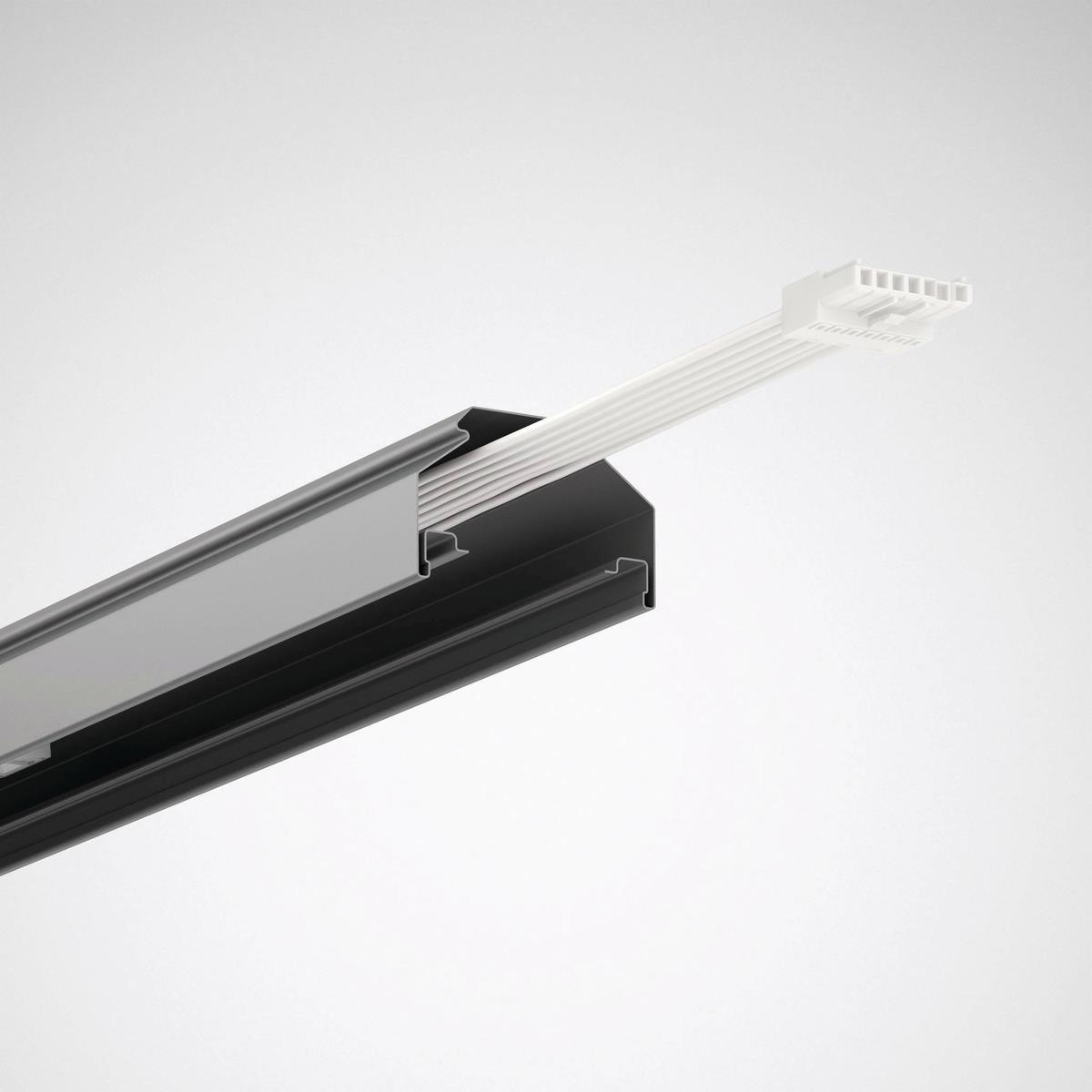

Trunking for E-Line 7651 Fix IP64 LED continuous line single luminaires or continuous line terminations. Also suitable for continuous line applications in combination with a separately ordered continuous line coupler. Length of the trunking: 1521 mm. With 7-conductor through-wiring. Cable cross-section 2.5 mm2. With 1 female connector for tool-free, electrical connection of the gear trays. With 7-pole plug/socket pair for rapid electrical connection and termination at ends with protection against accidental contact. The heat-resistant through-wiring is factory-completed with all necessary components. All connections are designed for fast connection and are with reverse polarity protection. The trunking body is made of hot-dip galvanised sheet steel. The coating thickness of 20 μm (Z 275 according to DIN EN 10346) guarantees a corrosion protection of up to 33 years when using the trunking profile in environments according to corrosiveness category C3 according to DIN EN ISO 12944-2. Surface coated silver-grey.
Documente
Specificatii
| Protection | |
| Protection class according to IEC 61140 | I |
| Degree of protection (IP) | IP64 |
| Colour | |
| Colour | Silver |

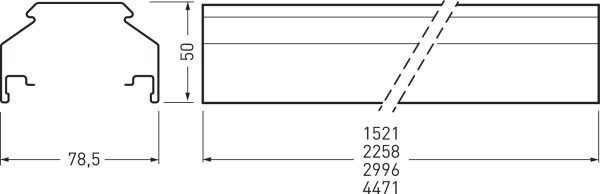

| Measurements | |
| Width | 79 |
| Height | 50 |
| Length | 1521 |
| Model/type | |
| Model | - |
| With wiring | Yes |
| With cable tray | No |
| Electrical | |
| Lamp power of fluorescent batten | - |
| Number of cores wiring | - |
| Options | |
| Integrated electromechanical coupling | - |
| Material | |
| Material | - |
| Connection | |
| Electrical connection with connector system | No |
| Cross section wiring cores | 2.5 |
| Mounting/installation | |
| Variable distance of electrical units | No |
| Application | |
| Suitable for cable tray | No |
| Package 1 | |
| volume | 0,0087 |
| weight | 2,9 |
| length | 1,54 |
| width | 0,093 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4018242431625 |
| Package 2 | |
| volume | 1,584 |
| weight | 290 |
| length | 1,65 |
| width | 0,8 |
| qmax | 100 |
| qmin | 100 |
| um | PF |
| gtin | 4018242744206 |
