Descriere

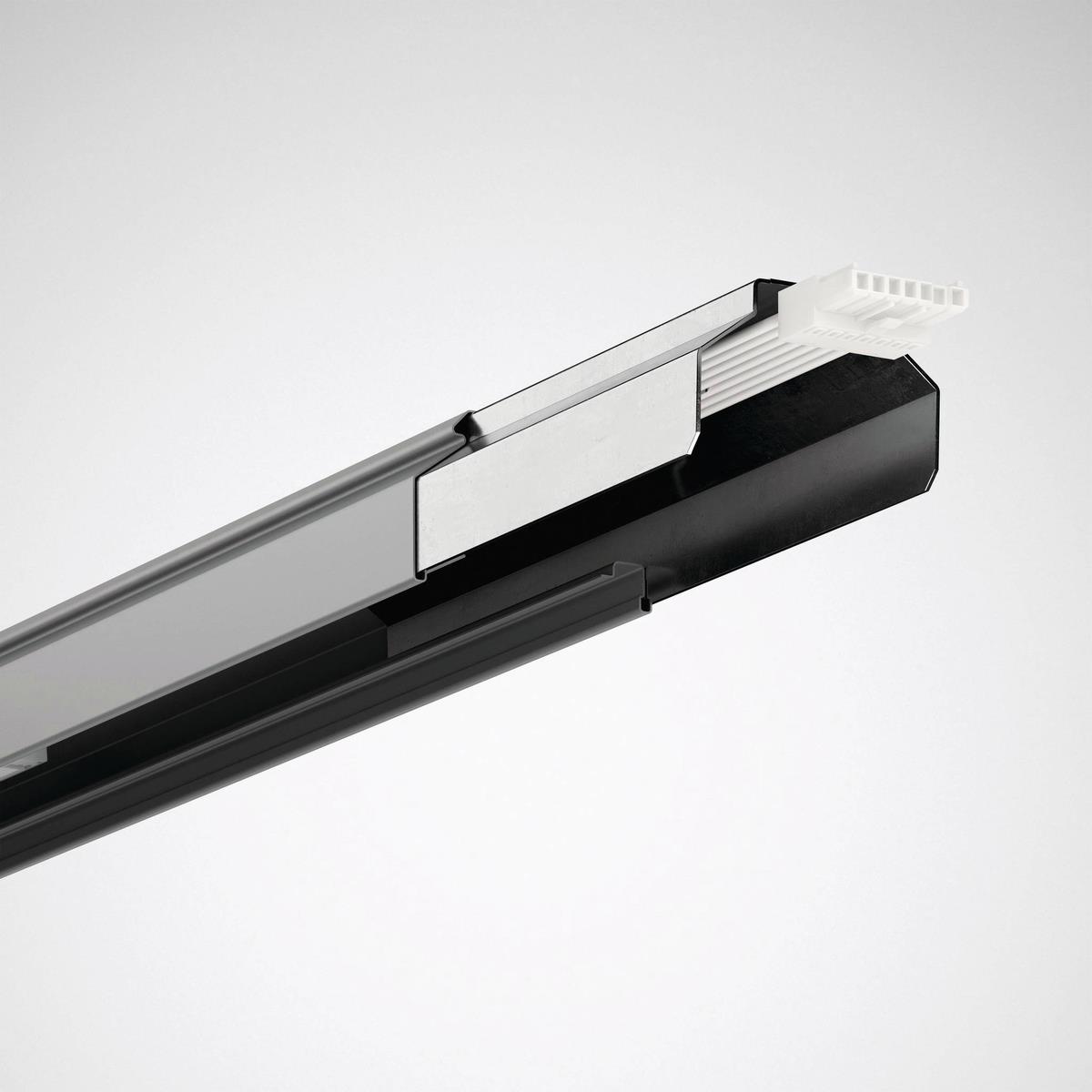

Trunking for E-Line 7651 Fix IP64 LED continuous line applications. To simplify installation, a pre-assembled continuous line coupler is included in the scope of delivery for connection to a further trunking unit. Length of the trunking: 2258 mm. With 7-core through-wiring for segmenting circuits and supplementary 7-core through-wiring for additional emergency light or light management uses. With 1 female connector for tool-free, electrical connection of the gear trays. With two 7-pole plug/socket pairs for rapid electrical connection and termination at ends with protection against accidental contact. The heat-resistant through-wiring is factory-completed with all necessary components. All connections are designed for fast connection and are with reverse polarity protection. The trunking body is made of hot-dip galvanised sheet steel. The coating thickness of 20 μm (Z 275 according to DIN EN 10346) guarantees a corrosion protection of up to 33 years when using the trunking profile in environments according to corrosiveness category C3 according to DIN EN ISO 12944-2. Surface coated silver-grey. Packaging unit 4 pieces.
Documente
Specificatii
| Protection | |
| Protection class according to IEC 61140 | I |
| Degree of protection (IP) | IP64 |
| Colour | |
| Colour | Aluminium |

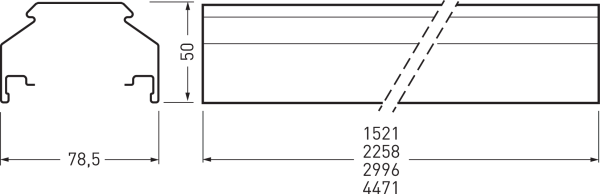

| Measurements | |
| Width | 79 |
| Height | 50 |
| Length | 2258 |
| Model/type | |
| Model | - |
| With wiring | Yes |
| With cable tray | No |
| Electrical | |
| Lamp power of fluorescent batten | - |
| Number of cores wiring | - |
| Options | |
| Integrated electromechanical coupling | - |
| Material | |
| Material | - |
| Connection | |
| Electrical connection with connector system | No |
| Cross section wiring cores | 4 |
| Mounting/installation | |
| Variable distance of electrical units | No |
| Application | |
| Suitable for cable tray | No |
| Package 1 | |
| volume | 0,0138 |
| weight | 4,85 |
| length | 2,425 |
| width | 0,093 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4018242443352 |
| Package 2 | |
| volume | 2,4 |
| weight | 407,4 |
| length | 2,5 |
| width | 0,8 |
| qmax | 84 |
| qmin | 84 |
| um | PF |
| gtin | 4018242785162 |
