Descriere

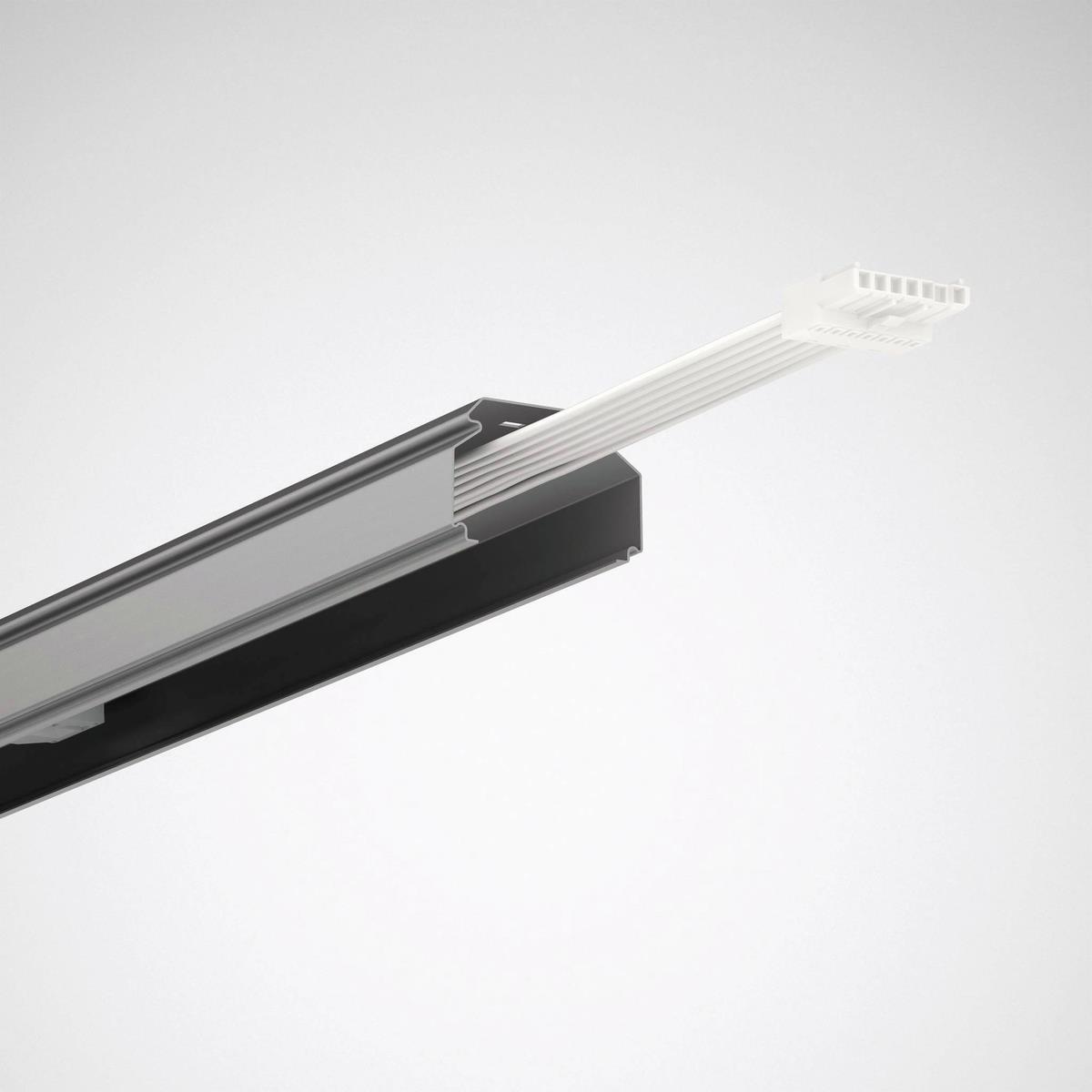

Trunking for E-Line 7651 continuous line single luminaires or continuous line terminations. Also suitable for continuous line applications in combination with a separately ordered continuous line coupler. Length of the trunking: 2212,5 mm. With 7-core through-wiring for segmenting circuits and supplementary 7-core through-wiring for additional emergency light or light management uses. With 1 female connector for tool-free, electrical connection of the gear trays. With two 7-pole plug/socket pairs for rapid electrical connection and termination at ends with protection against accidental contact. The heat-resistant through-wiring is factory-completed with all necessary components. All connections are designed for fast connection and are with reverse polarity protection. The electrical feed can be made without accessories through an upper knockout (M20/PG13.5). The trunking body is made of hot-dip galvanised sheet steel. Surface coated silver-grey.
Documente
Specificatii
| Protection | |
| Protection class according to IEC 61140 | I |
| Degree of protection (IP) | IP20 |
| Colour | |
| Colour | Silver |

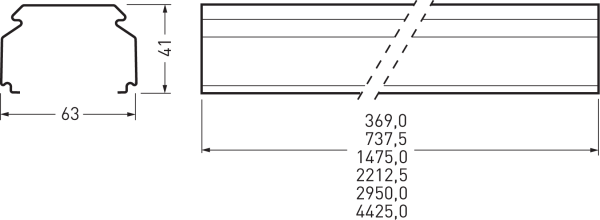

| Measurements | |
| Width | 63 |
| Height | 41 |
| Length | 2213 |
| Model/type | |
| Model | - |
| With wiring | Yes |
| With cable tray | No |
| Electrical | |
| Lamp power of fluorescent batten | - |
| Number of cores wiring | - |
| Options | |
| Integrated electromechanical coupling | - |
| Material | |
| Material | - |
| Connection | |
| Electrical connection with connector system | No |
| Cross section wiring cores | 4 |
| Mounting/installation | |
| Variable distance of electrical units | No |
| Application | |
| Suitable for cable tray | No |
| Package 1 | |
| volume | 0,00865 |
| weight | 3,48 |
| length | 2,218 |
| width | 0,075 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4018242432820 |
| Package 2 | |
| volume | 2,1888 |
| weight | 469,8 |
| length | 2,28 |
| width | 0,8 |
| qmax | 135 |
| qmin | 135 |
| um | PF |
| gtin | 4018242748389 |
| Dimensions of product | |
| Weight | 3,200 |
