Descriere

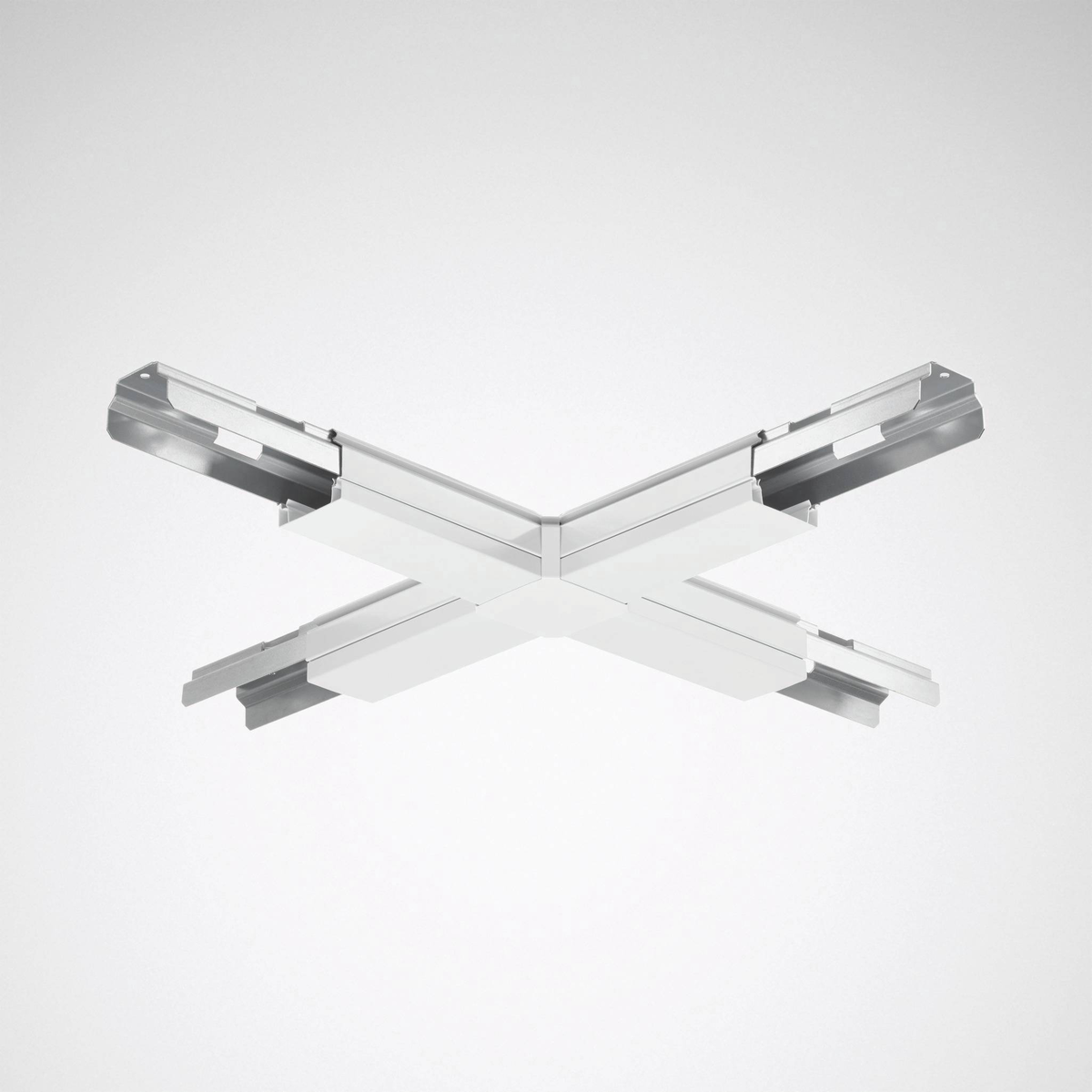

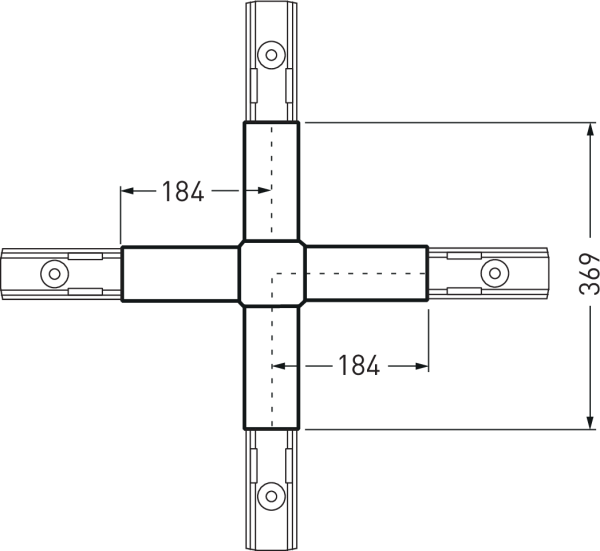

Connector for X-shaped continuous line applications. Connection plug and socket included in the scope of delivery (8/8). Device body of sheet steel, cover of PVC. Surface coated black, Colour white (similar to RAL 9016). Dimensions (L x W): 659 mm x 659 mm. With infeed option from above.
Documente
Specificatii
| Protection | |
| Protection class according to IEC 61140 | I |
| Degree of protection (IP) | IP20 |
| Colour | |
| Colour | White |
| Measurements | |
| Width | 659 |
| Height | 53 |
| Length | 659 |
| Model/type | |
| Model | - |
| With wiring | No |
| With cable tray | No |
| Electrical | |
| Lamp power of fluorescent batten | - |
| Number of cores wiring | - |
| Options | |
| Integrated electromechanical coupling | - |
| Material | |
| Material | - |
| Connection | |
| Electrical connection with connector system | No |
| Cross section wiring cores | - |
| Mounting/installation | |
| Variable distance of electrical units | No |
| Application | |
| Suitable for cable tray | No |
| Package 1 | |
| volume | 0,0195 |
| weight | 2,7 |
| length | 0,536 |
| width | 0,536 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4018242514939 |
| Package 2 | |
| volume | 1,3152 |
| weight | 72,9 |
| length | 1,37 |
| width | 0,8 |
| qmax | 27 |
| qmin | 27 |
| um | PF |
| gtin | 4018242812486 |
